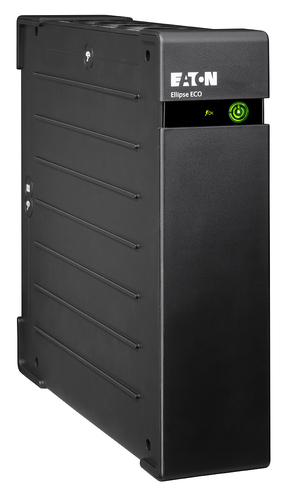

Eaton Ellipse ECO 1600 USB FR uninterruptible power supply (UPS) Standby (Offline) 1.6 kVA 1000 W 8 AC outlet(s)

Name: Eaton Ellipse ECO 1600 USB FR uninterruptible power supply (UPS) Standby (Offline) 1.6 kVA 1000 W 8 AC outlet(s)
Brand: Eaton
SKU: EL1600USBFR
Price: 353.20 EUR
Availability: OutOfStock

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

ON ORDER

SKU: EL1600USBFR

Manufacturer: Eaton Eaton

RRP Price €353.20

Specifications

Features

UPS topology

Standby (Offline)

Output power capacity

1.6 kVA

Output power

1000 W

Input operation voltage (min)

161 V

Input operation voltage (max)

284 V

Input frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Emergency Power Off (EPO)

Surge protection

Yes

Surge protection features

Fax, Modem, Network, Telephone

Audible alarm(s)

Yes

Audible alarm modes

Battery replacement

Ports & interfaces

AC outlet types

Type E

Power plug

C14 coupler

AC outlets quantity

8 AC outlet(s)

USB 2.0 ports quantity

Modem (RJ-11) ports

Ethernet LAN (RJ-45) ports

Battery

Battery technology

Sealed Lead Acid (VRLA)

Typical backup time at half load

11 min

Hot-swap battery

Automatic battery test

Yes

Cold start

Yes

Design

Form factor

Tower

Rack capacity

Product colour

Black

LED indicators

Battery replacement

Safety regulation & standards

Safety

IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1

Weight & dimensions

Width

81 mm

Depth

312 mm

Height

305 mm

Weight

7.8 kg

Packaging data

Bundled software

Eaton Intelligent Power

Logistics data

Harmonized System (HS) code

85078000

Other features

Input connection type

Mac compatibility

Yes

Nominal output voltage

220-240 V

Nominal input voltage

230 V

Compatible operating systems

Windows 7/Vista/XP\r\nMac OS X\r\nLinux

Overload protection

Yes

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

7.8 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

Eaton MBP3KIB uninterruptible power supply (UPS) 3 kVA UPS

The Eaton HotSwap MBP series is made of versatile, flexible 2U PDUs designed to add high availability to UPSs up to 3,000 VA. Any UPS connected to a HotSwap MBP can be replaced for maintenance or upgrade purposes without interrupting the power supply to the protected devices. As a unique feature, they can be screwed at the back a Pulsar UPS, either front-facing or rear-facing, on the left or right hand side, for maximum versatility. They offers multiple mounting options for rack enclosures, wall mounting or connection at the rear of a UPS, whatever its brand.

€181.87

P-103004593 UPS

€247.21

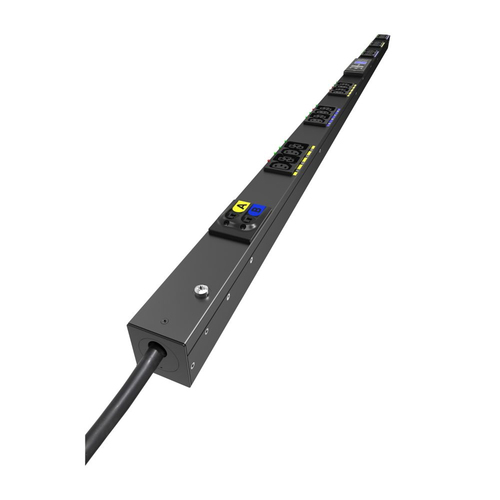

Eaton EVMAF132A power distribution unit (PDU) 24 AC outlet(s) 39U Black UPS
