Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)

Plug and play connectivity

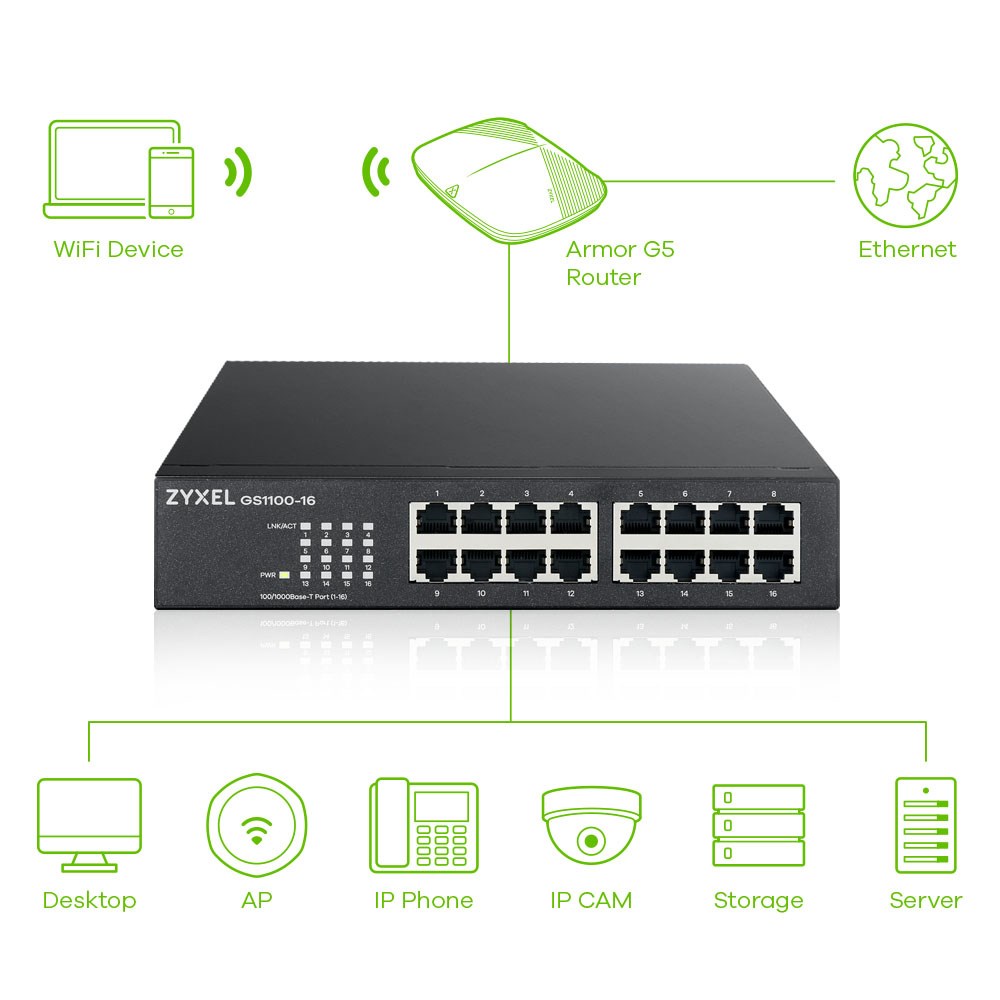

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

5 IN STOCK

SKU: GS1100-16-EU0103F

Manufacturer: Zyxel Zyxel

RRP Price €69.59

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

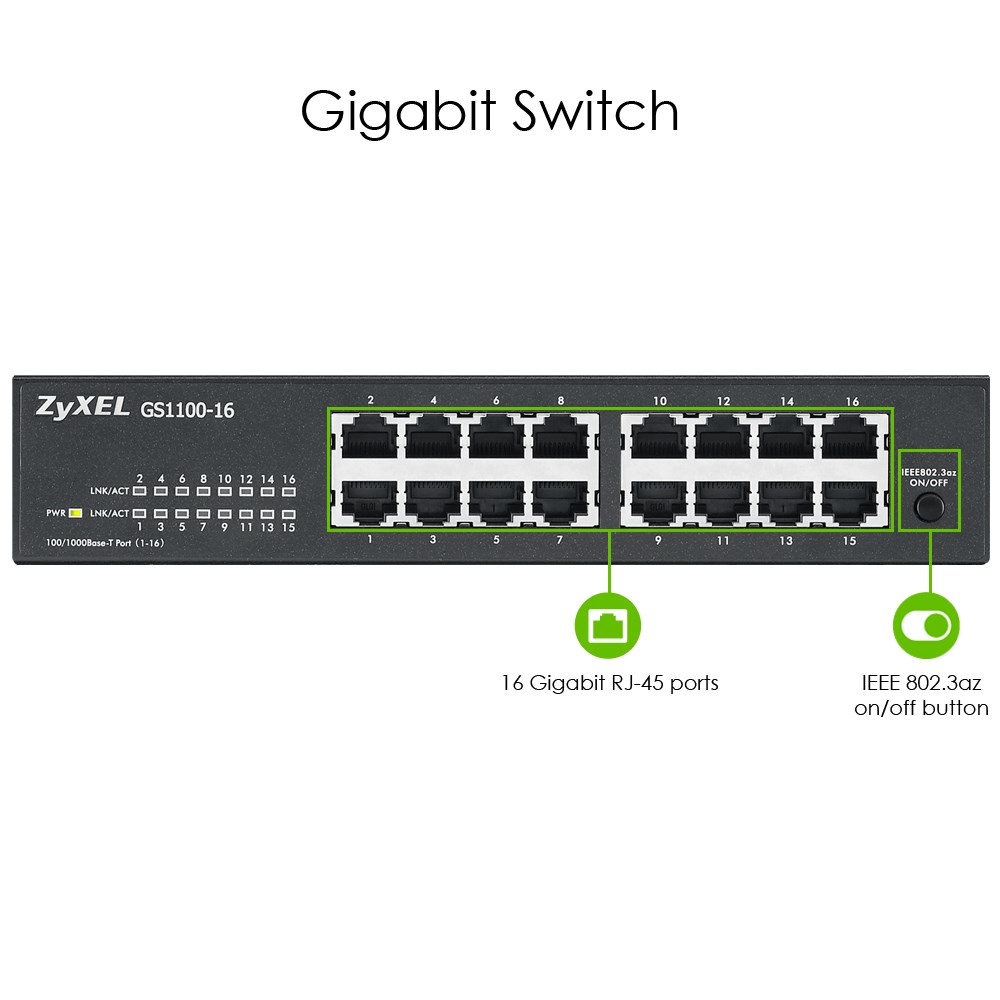

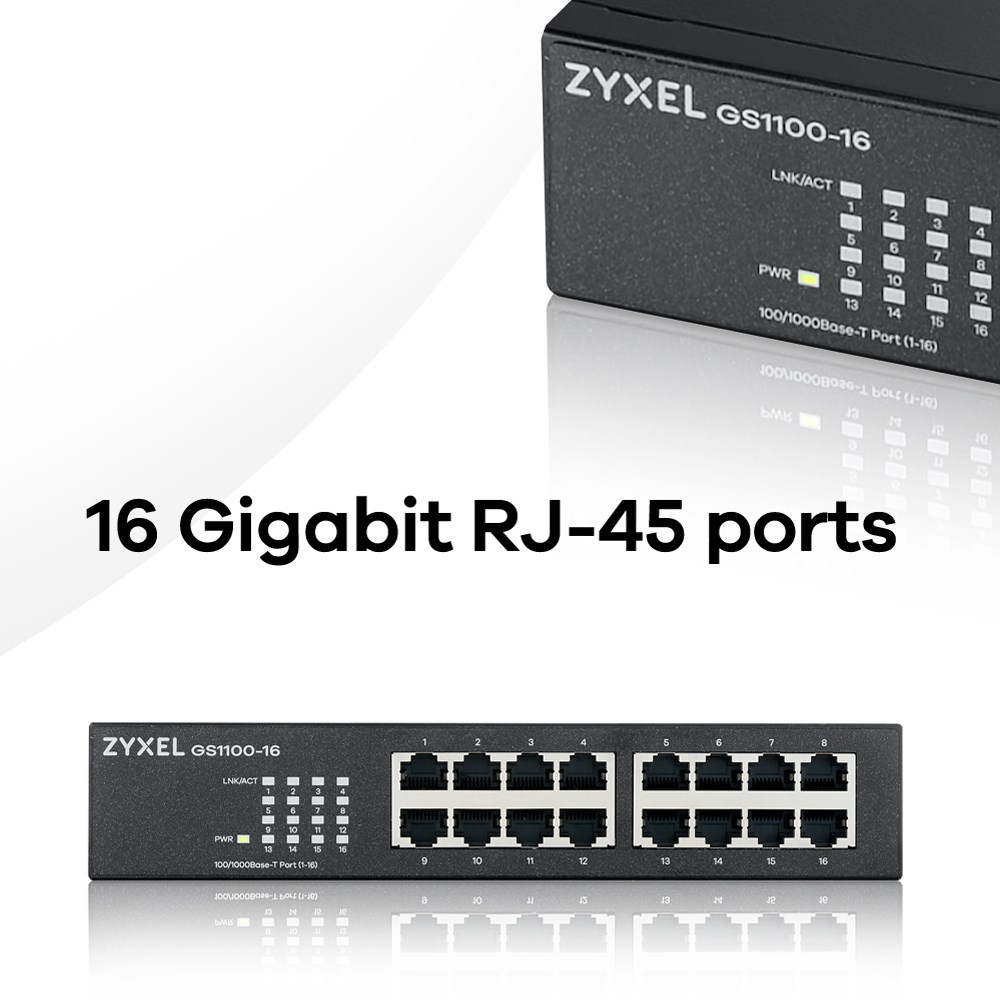

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
Active link detection
Yes

Data transmission

Switching capacity
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
0.5 MB

Design

Rack mounting
Yes
LED indicators
Activity, Link, Power
Wall mountable
Yes
Electromagnetic compatibility
CE, FCC, RCM, ICES-003, BSMI

Performance

Fanless
Yes
Mean time between failures (MTBF)
1156942 h

Power

Power supply included
Yes
Number of power supply units
1

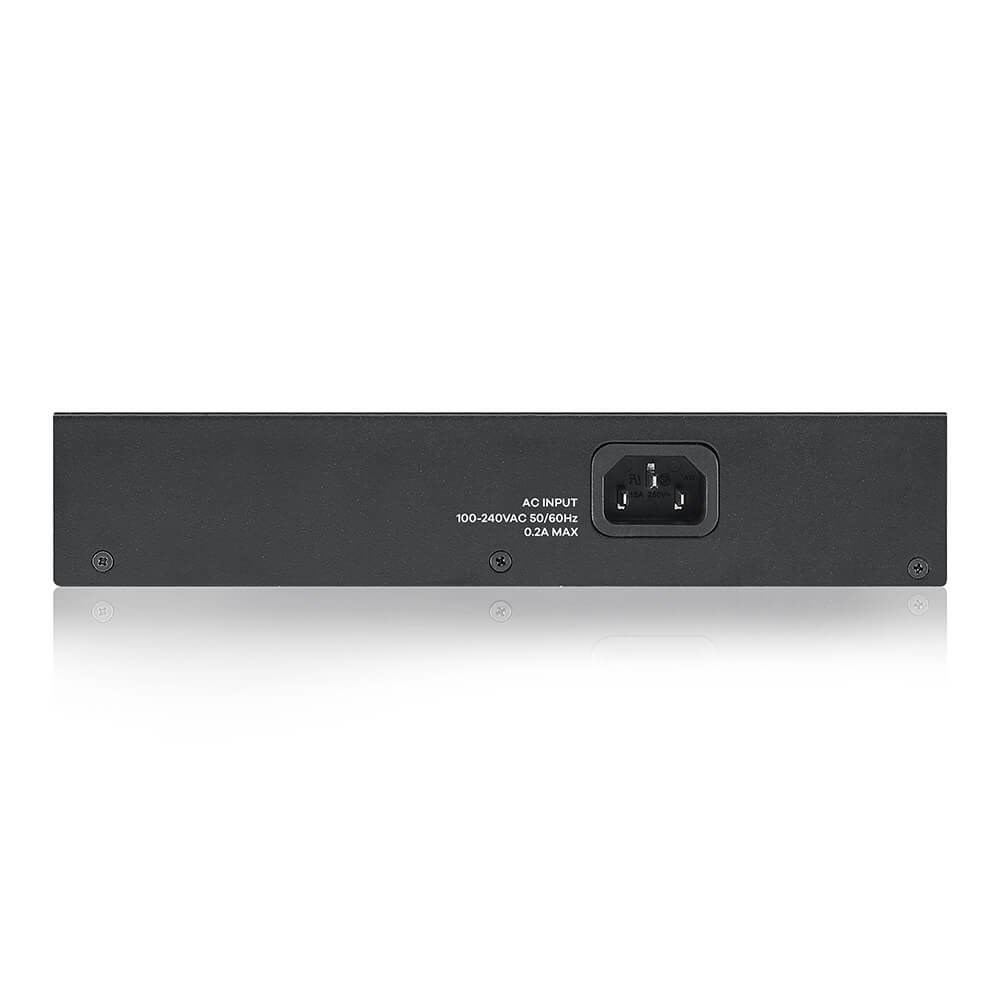

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
10 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
32.86 BTU/h

Weight & dimensions

Width
215 mm
Depth
133 mm
Height
42 mm
Weight
900 g

Packaging content

Cables included
AC
Rack mount kit
Yes

Packaging data

Package type
Box

Certificates

Certification
LVD, BSMI RoHS, REACH

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
