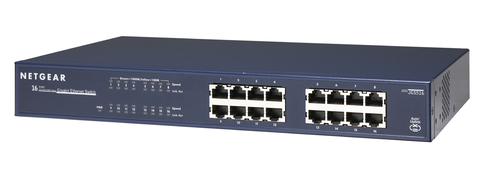

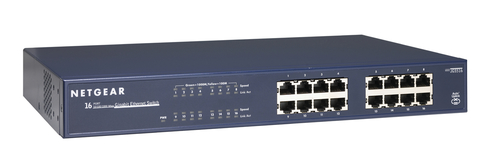

NETGEAR JGS516 Unmanaged Blue

Take Gigabit to the Desktop

NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

High Capacity

1000-Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.

Affordable

Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.

Flexible

Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network.

Convenient

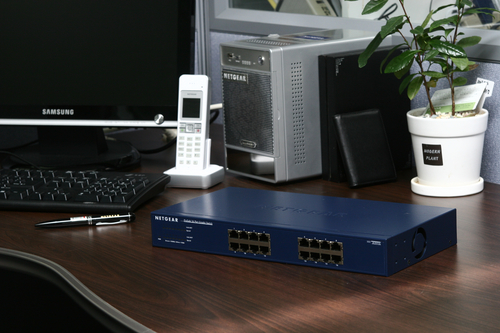

Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop but come with a rack-mount kit. They are also compatible with PC, Macintosh, Linux, and Unix operating systems.

ON ORDER

SKU: JGS516-200EUS

Manufacturer: Netgear Netgear

RRP Price €173.62

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Power connector
DC-in jack

Data transmission

Maximum data transfer rate
0.1 Gbit/s
Jumbo frames support
Yes
Packet buffer memory
2 MB

Protocols

Supported network protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Design

Stackable
No
Product colour
Blue

Performance

Mean time between failures (MTBF)
309000 h

Power

Power consumption (typical)
25 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Latency
20 μs
Dimensions (WxDxH)
330 x 207 x 43 mm
Connectivity technology
Wired
Bandwidth
32 Gbit/s
Non-operating relative humidity (non-condensing)
10 - 95%
Power requirements
100-240VAC/50-60 Hz
Connectivity LEDs
Y
Weight (imperial)
1.62 kg (3.57 lbs)

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
32 - 122 °F

Weight & dimensions

Width
328 mm
Depth
169 mm
Height
43 mm
Weight
1.47 kg

Certificates

Certification
CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024 C-Tick

Logistics data

Harmonized System (HS) code
85176990
