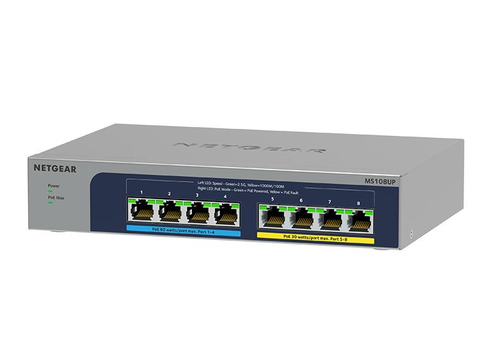

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

10 IN STOCK

SKU: MS108UP-100EUS

Manufacturer: Netgear Netgear

RRP Price €348.97

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Auto MDI/MDI-X
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto-sensing
Yes
VLAN support
Yes
Number of VLANs
64

Data transmission

Switching capacity
40 Gbit/s
MAC address table
16000 entries
Latency (1 Gbps)
3.593 µs
Jumbo frames support
Yes
Jumbo frames
12000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet buffer memory
1.5 MB

Design

Rack mounting
No
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Wall mountable
Yes
Number of fans
0 fan(s)
Electromagnetic compatibility
CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM

Performance

Fanless
Yes
Mean time between failures (MTBF)
373643.7 h

Power

Power source
DC
Power supply included
Yes
DC input voltage
54 V
Input current
4.7 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
923.49 BTU/h

Weight & dimensions

Width
210 mm
Depth
140 mm
Height
40 mm
Weight
900 g

Certificates

Certification
CB, CSA, CCC, BSMI, RCM

Logistics data

Harmonized System (HS) code
85176990
