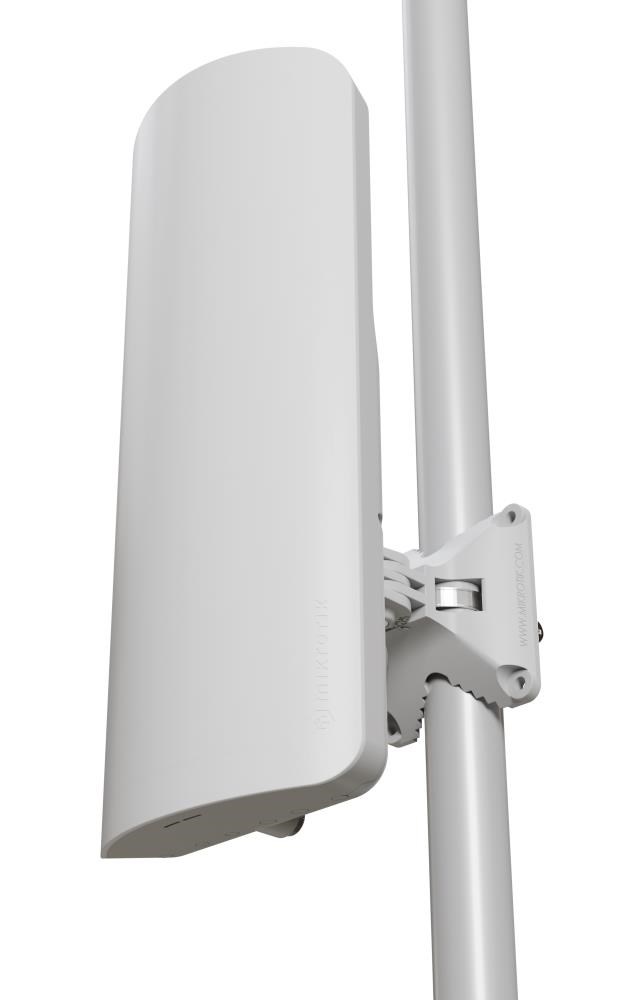

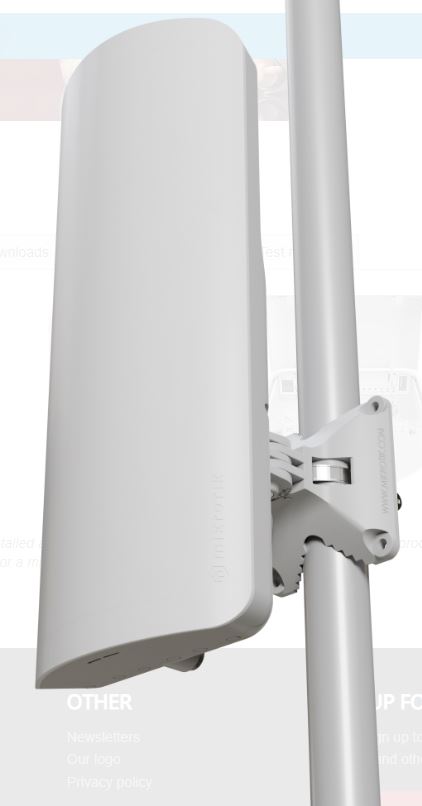

Mikrotik mANTBox ax 15s White Power over Ethernet (PoE)

Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*

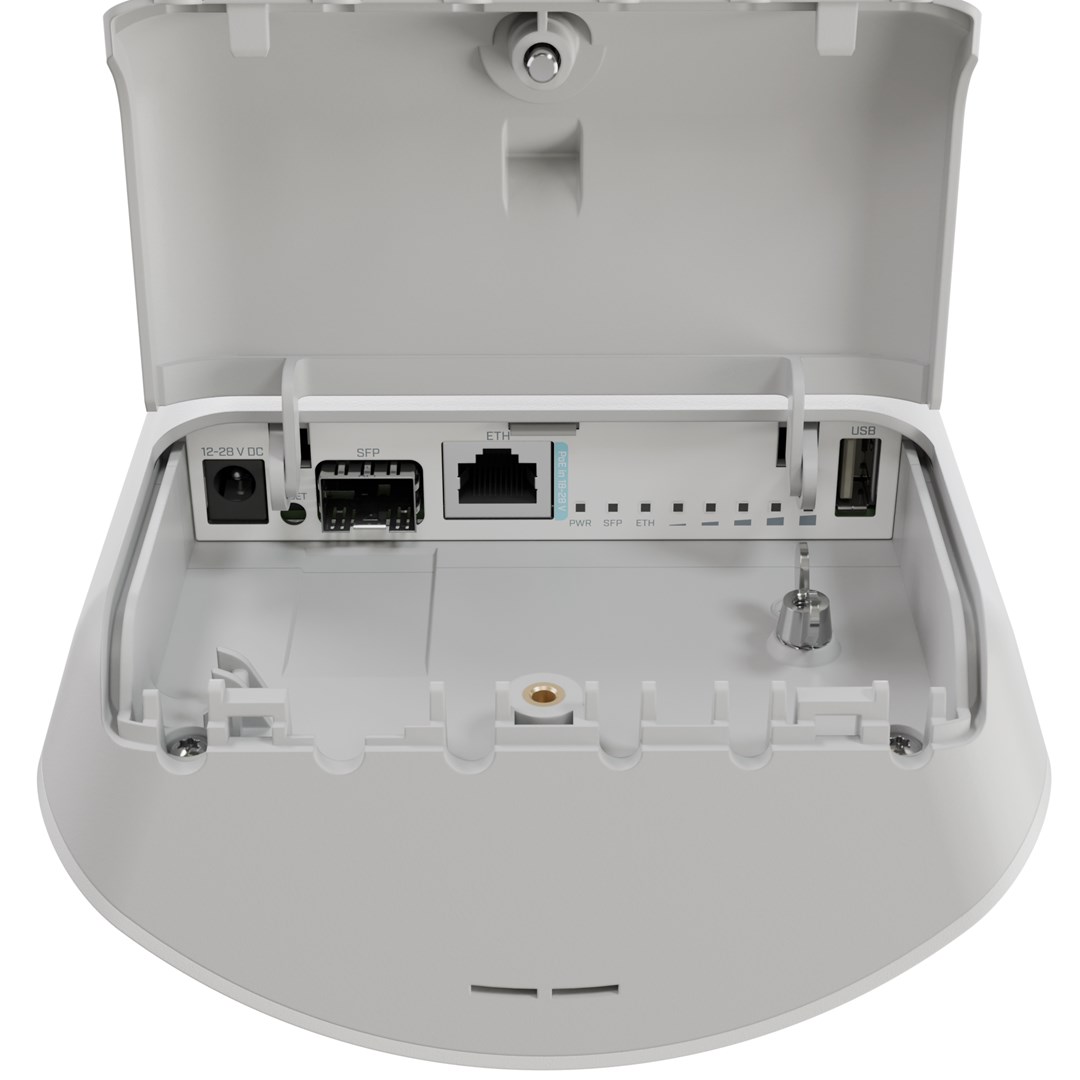

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.

Upgrading your setup to Wi-Fi 6 offers multiple benefits:

Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks

Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

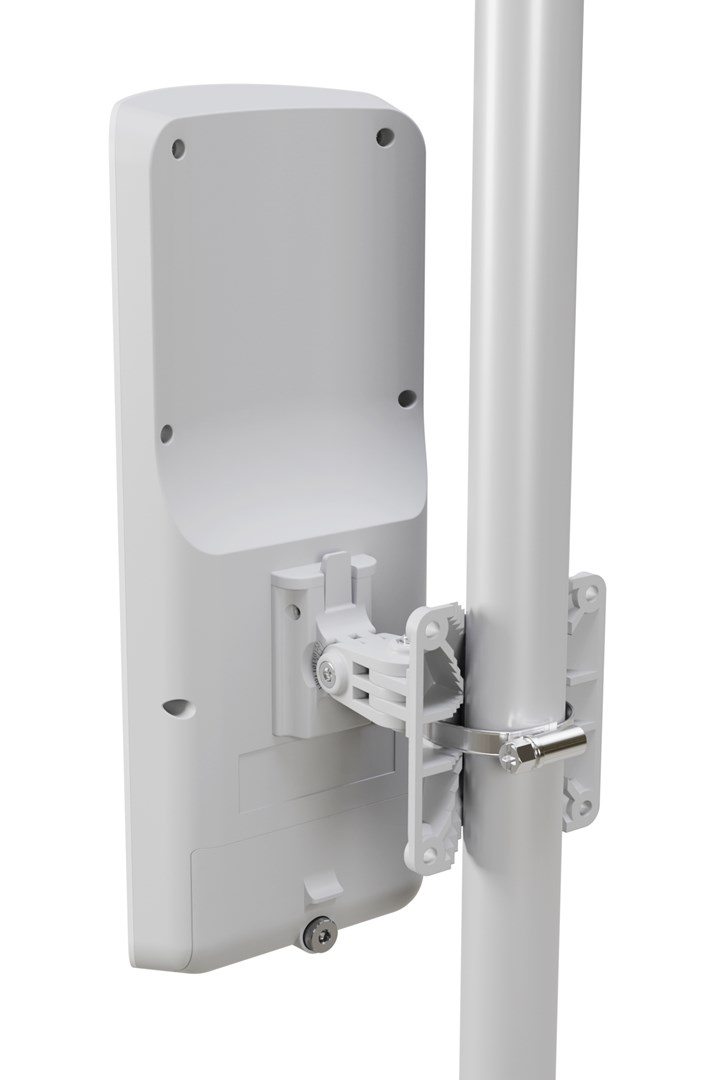

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.

*It's important to note that while longer links are feasible, their reliability may vary.

7 IN STOCK

SKU: L22UGS-5HaxD2HaxD-15S

Manufacturer: Mikrotik Mikrotik

RRP Price €180.80

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
USB connector type
USB Type-A

Power

Power over Ethernet (PoE)
Yes
Power consumption (max)
21 W

Design

Placement
Pole, Wall
Product colour
White

Antenna

Antenna type
Sector antenna
Antenna gain level (max)
15 dBi
Polarization
Dual polarization

Performance

Chipset
QCN-6102, IPQ-5010
Built-in processor
Yes
Processor frequency
800 MHz
Flash memory
256 MB
Internal memory
126 MB
Operating system installed
RouterOS
Compatible operating systems
RouterOS v7

Certificates

Certification
CE, FCC, IC, EAC, ROHS

Packaging content

AC adapter included
Yes
PoE adapter included
Yes
Mounting kit
Yes
Packaging content
24V 1.2A power adapter Gigabit PoE injector Hose clamp 1 QMP K-41 fastening set

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Accessories
