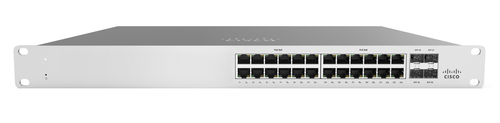

Cisco Meraki MS120-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Сisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

END OF SALE
Successor: MS130-24P-HW

SKU: MS120-24P-HW

Manufacturer: Cisco Cisco

RRP Price €1,806.55

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Console port
RJ-45

Network

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
10G support
No
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4094

Data transmission

Switching capacity
56 Gbit/s
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
9578

Security

DHCP features
DHCP server, DHCP snooping, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
BPDU filtering/protection
Yes
Root protection
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP
Switching protocols
RSTP, STP, LLDP, CDP

Design

Rack mounting
Yes
Form factor
1U
Product colour
Grey

Performance

Mean time between failures (MTBF)
453906 h

Power

AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (typical)
28 W
Power consumption (max)
882 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
440 mm
Depth
250 mm
Height
44 mm
Weight
4.2 kg

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
