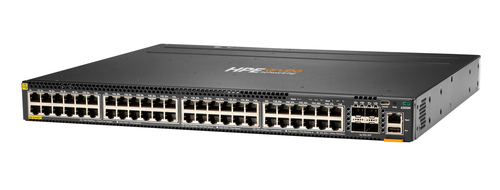

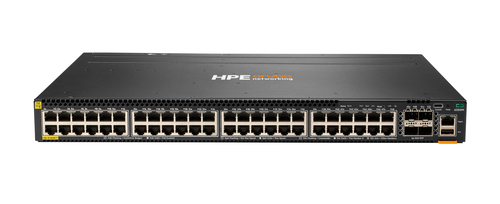

HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). With its cloud-native design, fully programmable operating system, and the HPE Aruba Networking CX Network Analytics Engine, the CX 6300 Series extends industry-leading monitoring and troubleshooting to the access layer. Support for HPE Aruba Networking Switch Multi-Edit Software and the CX mobile app verify that configurations are flawless and easy to deploy. A powerful ASIC architecture delivers fast, non-blocking performance, ready for tomorrow’s unpredictable demands. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high speed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for APs and IoT devices.

What is new supporting point:
The HPE Aruba Networking CX 6300 series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF robust security, QoS, MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only HPE Aruba Networking CX 6300L switches (datasheet) with HPE Smart Rate Multi-Gigabit and MACsec 256 encryption are available for high performance access deployments.
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth.
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy.
Options include 24 to 48 ports of HPE Smart Rate (1/2.5/5/10 GbE) Multi-Gigabit and 1 GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the Network Analytics Engine
Manage via single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic Segmentation enables enhanced security and simple access for users and IoT.

29 IN STOCK

SKU: JL661A

Manufacturer: HPE HPE

RRP Price €13,228.68

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes

Optical fiber

Transmission distance (max)
10 km

Data transmission

Switching capacity
496 Gbit/s
Throughput
369 Mpps
MAC address table
29490 entries
Latency (1 Gbps)
2.28 µs
Latency (10 Gbps)
1.46 µs
Jumbo frames support
Yes
Packet buffer memory
8 MB

Security

DHCP features
DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes

Multicast features

Multicast support
Yes

Protocols

Routing protocols
BGP, BGP4, IP, OSPF

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey

Performance

Physical stacking (units)
10
Built-in processor
Yes
Processor model
ARM Cortex-A72
Processor frequency
1800 MHz
Memory type
DDR4-SDRAM
Internal memory
8000 MB
Flash memory
32000 MB

Power

Power supply included
No
AC input voltage
100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
1440 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 95%

Weight & dimensions

Width
44 mm
Depth
442 mm
Height
385 mm
Weight
5.16 kg

Logistics data

Harmonized System (HS) code
85176990
