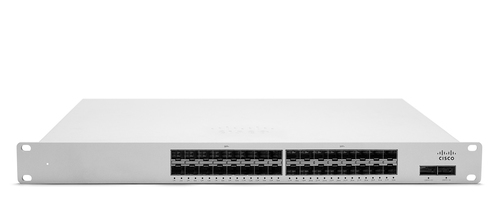

Cisco Meraki MS425-32 Managed L3 White

Switch ports/stacking ports
- 32 × 10G SFP+ ports
- 2 × 40G QSFP+ uplinks
- Up to 800 Gbps of switching capacity
- 160G flexible stacking

Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- 1 RU for space-constrained environments
- Voice and video QoS
- Non-blocking switch fabric

Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates

Switching capabilities
- Layer 3
- OSPF Routing
- MAC forwarding entries, up to 228K
- DHCP Server, DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs

END OF SALE
Successor: C9300X-24Y-M

SKU: MS425-32-HW

Manufacturer: Cisco Cisco

RRP Price €16,861.11

Specifications

Management features

Switch type
Managed
Switch layer
L3

Ports & interfaces

SFP+ module slots quantity
32
QSFP+ module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
10G support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Number of VLANs
4095

Data transmission

Switching capacity
480 Gbit/s
MAC address table
228000 entries
Latency (10 Gbps)
1.2 µs

Security

DHCP features
DHCP server, DHCP client
IGMP snooping
Yes
Security algorithms
SNMP

Design

Rack mounting
Yes
Stackable
Yes
Product colour
White

Performance

Firmware upgradeable
Yes
Mean time between failures (MTBF)
287587 h

Power

AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (typical)
85 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
484.4 mm
Depth
486.9 mm
Height
43.7 mm

Packaging content

Manual
Yes

Certificates

Certification
CSA, IC, CE, C-Tick, RoHS

Logistics data

Harmonized System (HS) code
85176990
