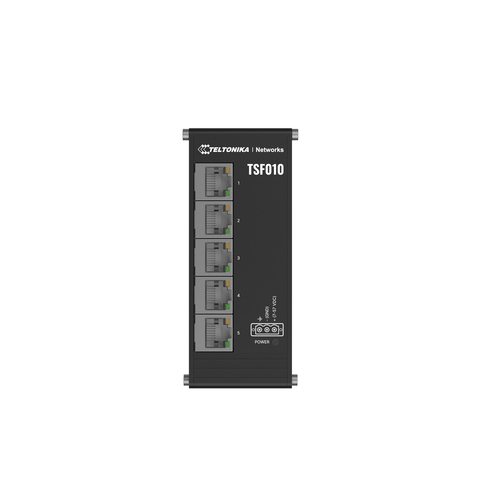

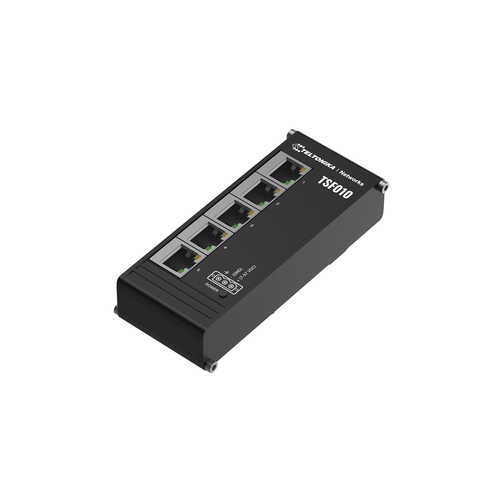

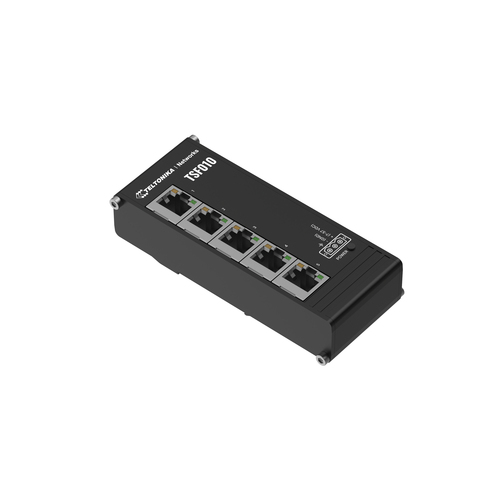

Teltonika NETWORKS TSF010 Flat Ethernet Switch Unmanaged Fast Ethernet (10/100) DIN rail Black

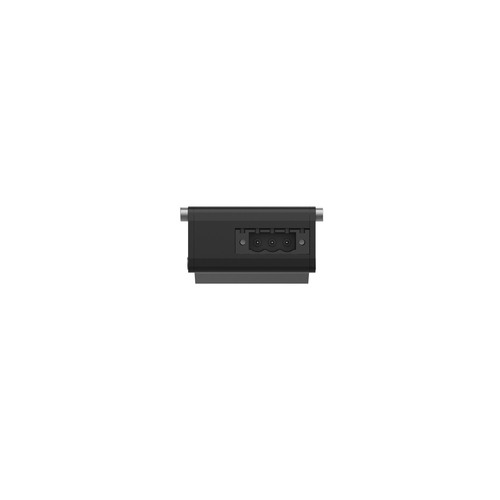

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

ON ORDER

SKU: TSF010

Manufacturer: Teltonika Teltonika

RRP Price €32.80

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity
10 Gbit/s
MAC address table
2048 entries
Jumbo frames support
Yes
Jumbo frames
9216

Design

Rack mounting
No
Stackable
No
Form factor
DIN rail
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes

Power

Power source
DC
Power supply included
No
Input voltage
7 - 57 V
Power consumption (typical)
1 W
Power consumption (max)
1.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
113 mm
Depth
50 mm
Height
28 mm
Weight
142 g
