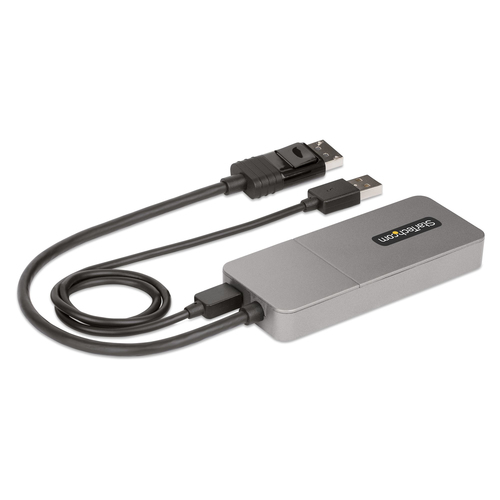

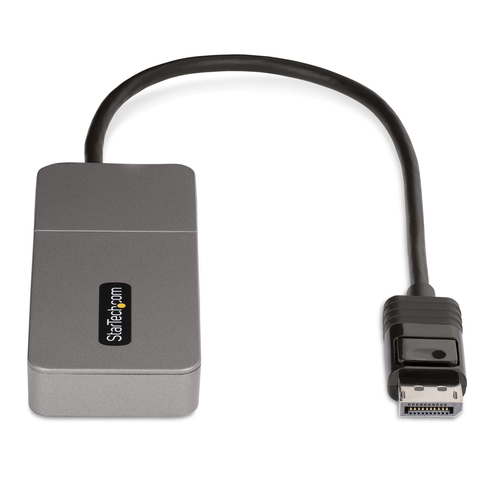

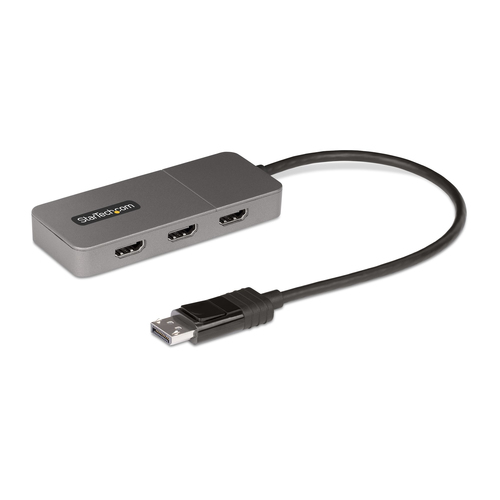

StarTech.com 3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors

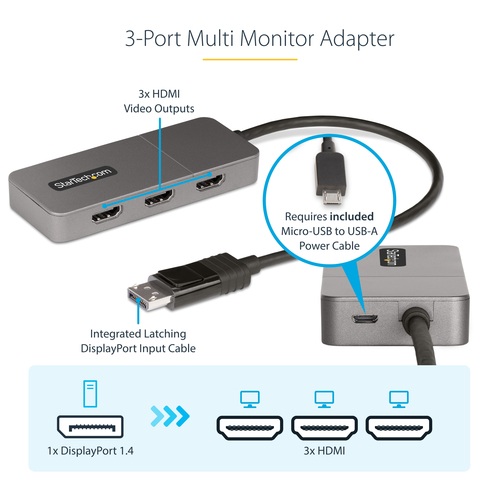

Connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.

Drive Triple 4K 60Hz Displays with HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.

Host Connection

Maximum Resolution Output 1

Maximum Resolution Output 2

Maximum Resolution Output 3

Example Host Processor/Graphics

DisplayPort 1.4 with DSC

4K 60Hz

4K 60Hz

4K 60Hz

Intel 12th Gen Processors & Later

Dedicated AMD & Nvidia GPU's that support DSC

4K 60Hz

4K 60Hz

N/A

Intel 11 th Gen with DSC

DisplayPort 1.4

4K 30Hz

4K 30Hz

4K 30Hz

Intel 10 th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Dedicated AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

4K 30Hz

1080p

Intel 8 th - 10th Gen Processors & Later

*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device

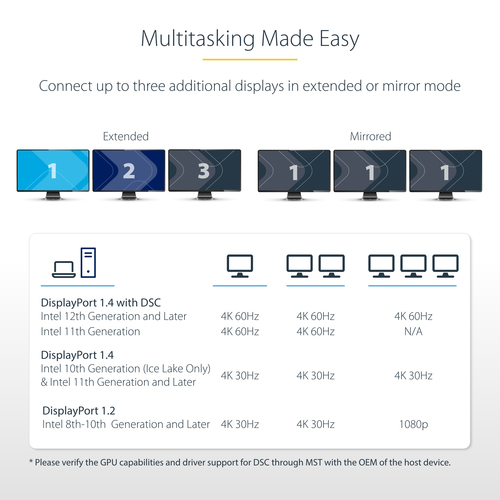

Multitasking Made Easy

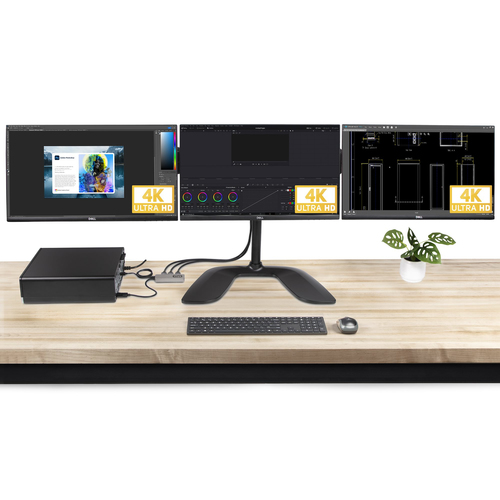

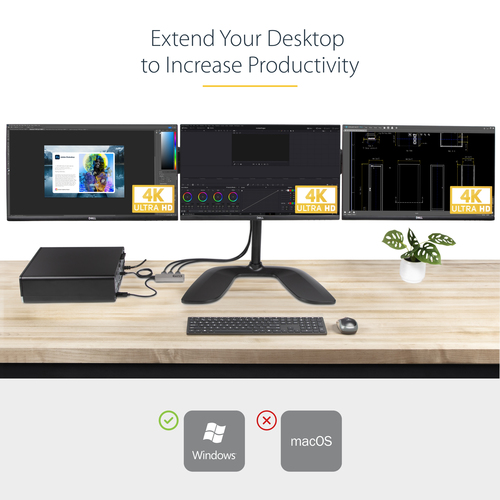

Configure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.

Driverless for Rapid Deployment and Seamless User Setup Experience

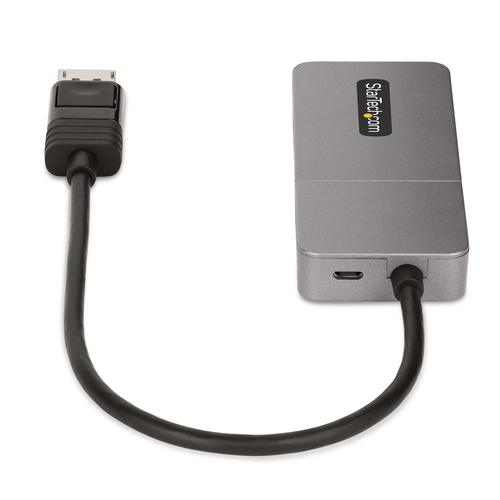

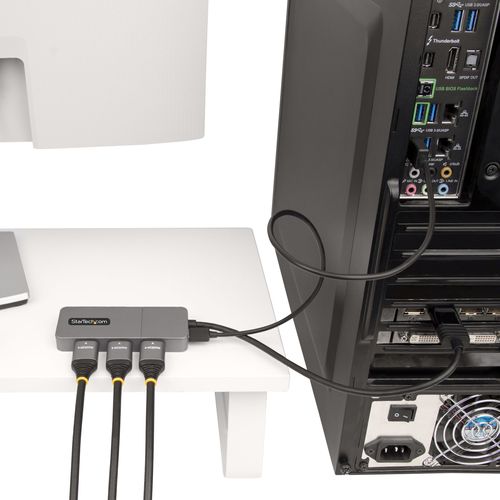

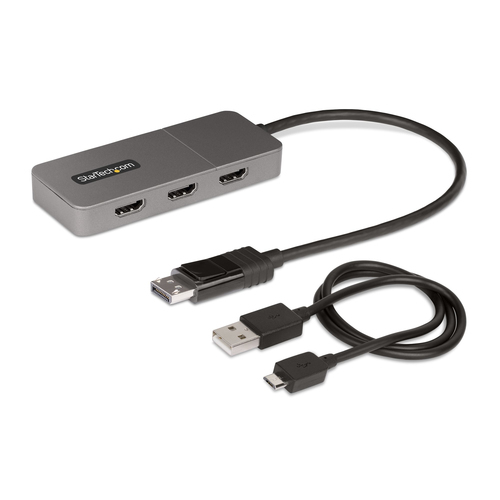

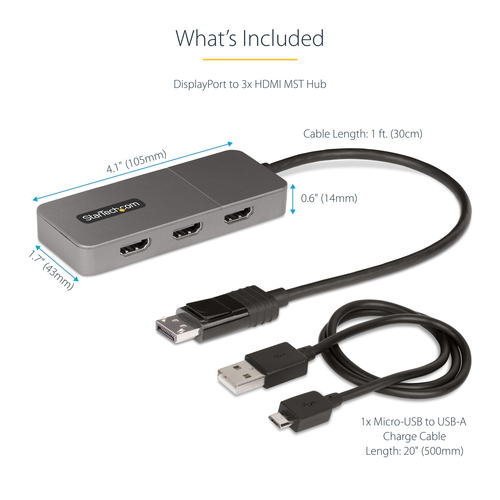

This MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.

The StarTech.com Advantage

2 IN STOCK

SKU: MST14DP123HD

Manufacturer: StarTech.com StarTech.com

RRP Price €116.32

Specifications

Features

Power source
USB
Cable length
0.3 m
Connector 1
DisplayPort
Connector 2
3 x HDMI
Connector 1 gender
Male
Connector 2 gender
Female
HDMI version
2.1
DisplayPort version
1.4
Maximum resolution
4096 x 2160 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160
Maximum refresh rate
60 Hz
Refresh rate at maximum resolution
60 Hz
Product colour
Grey
Chipset
VMM5310, IT6563FN
Supported audio channels
7.1
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%

Weight & dimensions

Weight
71 g
Width
43 mm
Depth
105 mm
Height
14 mm

Packaging data

Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
115 g

Logistics data

Master (outer) case width
440 mm
Master (outer) case length
473 mm
Master (outer) case height
331 mm
Products per master (outer) case
70 pc(s)

Other features

Material
Plastic

Accessories

License
