Eaton N286-100G-SR4SJ network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm

Eaton N286-100G-SR4SJ network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm

Name: Eaton N286-100G-SR4SJ network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
Brand: Eaton
SKU: N286-100G-SR4SJ
Price: 166.16 EUR
Availability: OutOfStock

Connects a multimode Gigabit Ethernet fiber optic network cable to a Juniper switch or server’s QSFP28 port.

QSFP28 Transceiver for Connecting to Your Juniper Network Switch or Server
This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Hot-Swappable for Installation Without Network Interruption

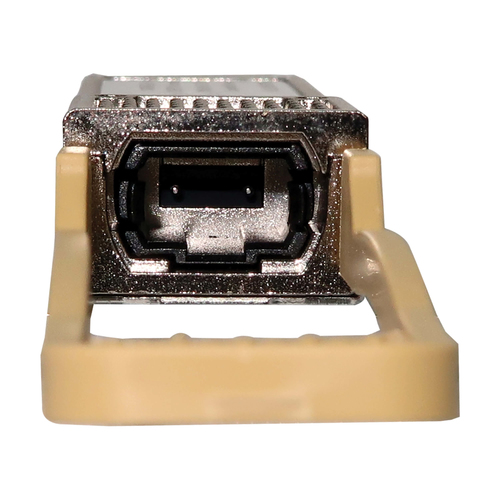

This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your Juniper network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.

Functionally Equivalent to Juniper JNP-QSFP-100G-SR4 Transceiver Module
The MSA-compliant N286-100G-SR4SJ functions just like the equivalent Juniper JNP-QSFP-100G-SR4 transceiver module and is manufactured to meet or exceed Juniper specifications. You can use this transceiver with any compatible Juniper router, server or switch and receive the same performance as the JNP-QSFP-100G-SR4.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

ON ORDER

SKU: N286-100G-SR4SJ

Manufacturer: Eaton Eaton

RRP Price €166.16

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

100000 Mbit/s

Interface type

QSFP28

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MTP/MPO

SFP transceiver standard

SR4

Maximum transfer distance

100 m

Wavelength

850 nm

Fiber ethernet cabling technology

100GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Metallic

Housing material

Zinc

Form factor

QSFP28

Plug and Play

Yes

Hot-swap

Yes

Easy to install

Yes

Brand compatibility

Juniper

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS, UKCA

Certification

EN 55032; IEC/EN 63000

Sustainability

Sustainability compliance

Yes

Operational conditions

Minimum operating temperature

0 °C

Maximum operating temperature

70 °C

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 85%

Weight & dimensions

Weight

50 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Warranty period

3 year(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.05 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
