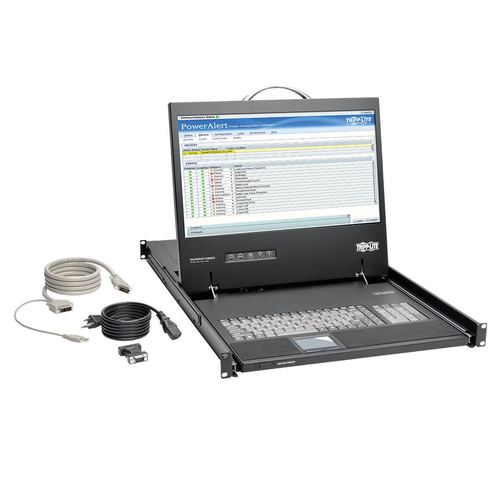

Tripp Lite B021-000-19-HD2 1U Rack-Mount Console with 19 in. LCD, 1920 x 1080 (1080p), DVI or VGA Video, TAA

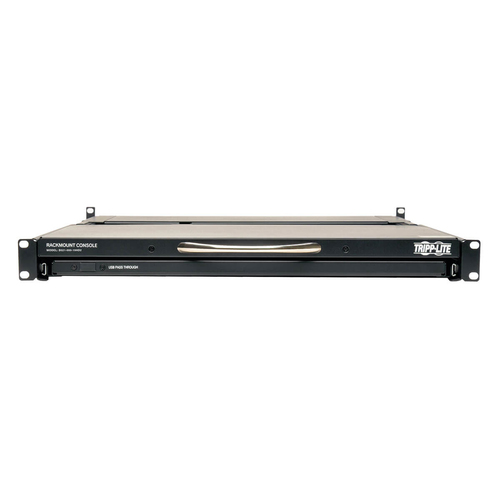

The B021-000-19-HD2 1U Rack-Mount Console combines a full keyboard, numeric keypad, touchpad and 19-inch color LCD for easy all-in-one control of a computer, server or KVM switch. Easy to install and simple to operate, it slides neatly into 1U of rack space when not in use.

The rear DVI-I console port supports both digital and analog video signals for connecting to a DVI- or VGA-enabled server or KVM switch (a DVI to VGA adapter is included). The LCD screen supports video resolutions up to 1920 x 1080 (1080p). Video settings of the connected computer are automatically adjusted for optimal display on the LCD screen. USB 2.0 pass-through ports on the front and rear allow you to connect a USB peripheral, such as a flash drive or CAC card reader, to your computer with a USB cable (sold separately).

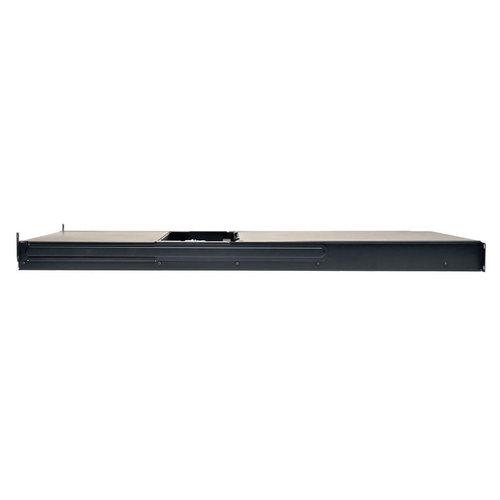

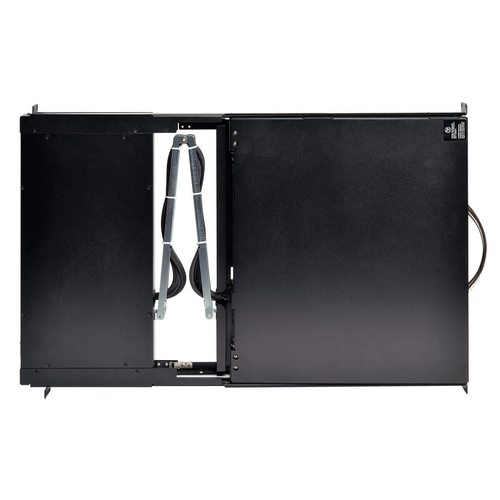

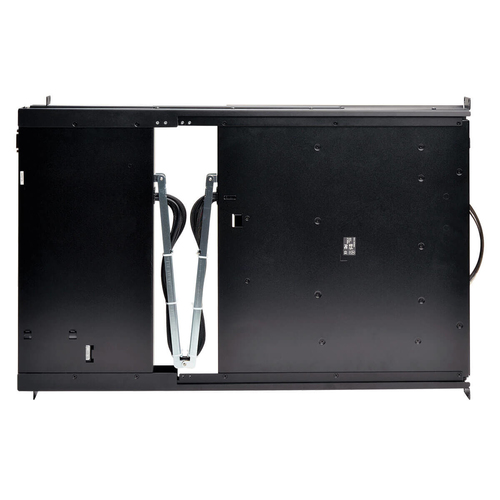

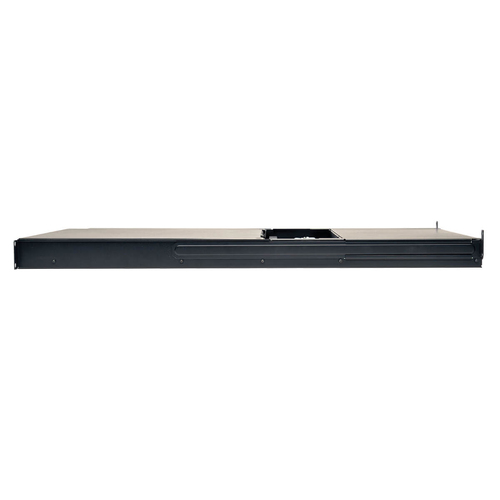

The B021-000-19-HD2 mounts into 1U of space in an EIA-standard 19-inch rack using the included mounting brackets and user-supplied screws. Simply pull out the steel drawer and flip up the screen when needed, then slide it back into the rack in automatic sleep mode when you’re finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.

This console is compatible with all major operating systems and KVM switches with a VGA or DVI monitor port and USB keyboard/mouse ports. This enables the B021-000-19-HD2 to be integrated into an existing system to provide secure management of critical network systems without a major investment in new hardware.

ON ORDER

SKU: B021-000-19-HD2

Manufacturer: Eaton Eaton

RRP Price €1,058.91

Specifications

Display

Display diagonal
48.3 cm (19")
Display resolution
1920 x 1080 pixels
Display type
LCD

Technical details

Product colour
Black
Relative humidity
20 - 90%
Compliance certificates
RoHS
Rack capacity
1U
Country of origin
Taiwan

Ports & interfaces

Mouse port type
USB
Video port type
DVI/VGA

Power

Power consumption (typical)
30 W
Power consumption (standby)
5 W
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 60 °C

Weight & dimensions

Width
477 mm
Height
43.2 mm
Depth
692.4 mm
Weight
12.6 kg

Packaging data

Package weight
18 kg
Package width
591.8 mm
Package depth
831.8 mm
Package height
154.9 mm

Packaging content

Cables included
DVI, KVM, VGA
Mounting brackets included
Yes
Manual
Yes
AC adapter included
Yes

Logistics data

Products per master (outer) case
1 pc(s)
