Tripp Lite Preloaded Fiber Panel, 1U - 4x (3x8F MTP/MPO-APC F/F) 24F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)

Tripp Lite Preloaded Fiber Panel, 1U - 4x (3x8F MTP/MPO-APC F/F) 24F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)

Name: Tripp Lite Preloaded Fiber Panel, 1U - 4x (3x8F MTP/MPO-APC F/F) 24F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)
Brand: Eaton
SKU: N48S-4M3X8M-10
Price: 2024.71 EUR
Availability: OutOfStock

1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

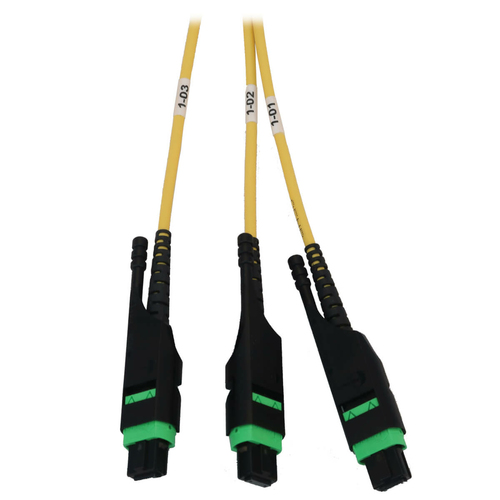

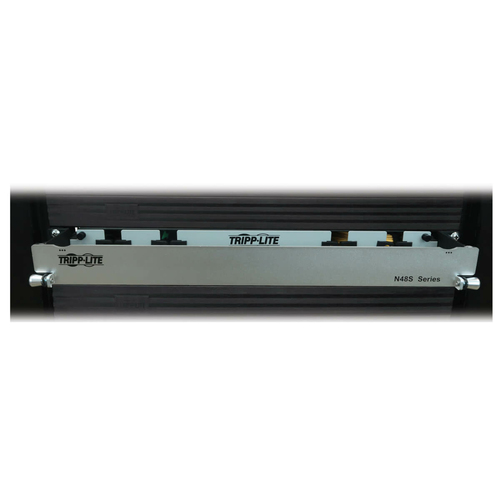

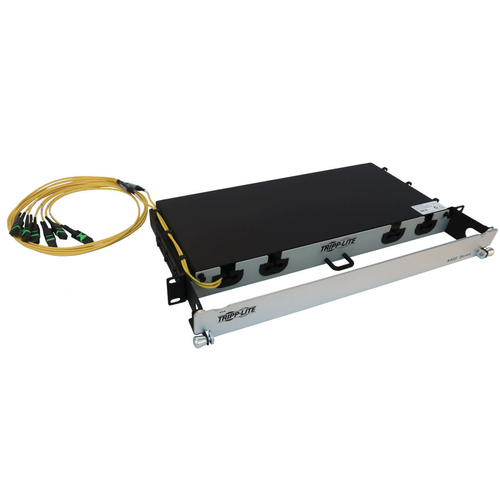

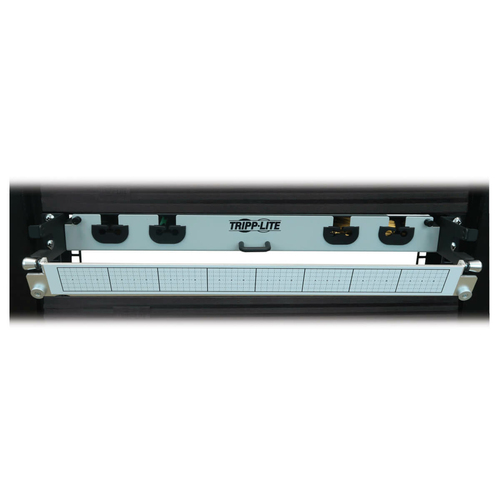

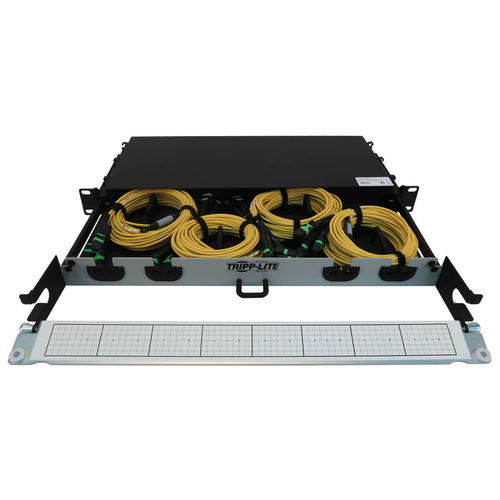

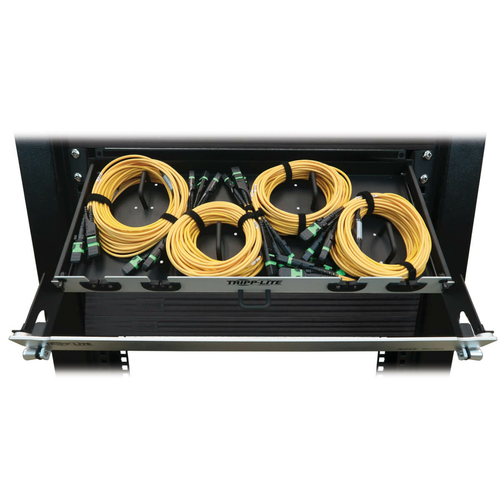

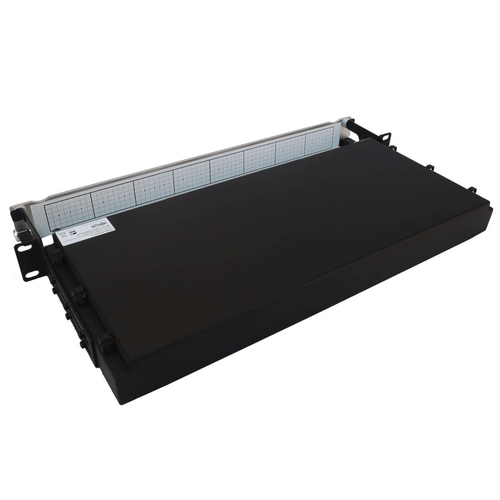

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features four 24-fiber MTP/MPO-APC singlemode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48S-4M3X8M-10 mounts in just 1U of space in an EIA-standard 19-inch rack.

ON ORDER

SKU: N48S-4M3X8M-10

Manufacturer: Eaton Eaton

RRP Price €2,024.71

Specifications

Network

Ethernet interface type

10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet

Cable types supported

Fiber

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

MTP/MPO

Design

Product colour

Black, Silver

Mounting

Rack mounting

Rack capacity

Cable length

10 m

Cable colour

Yellow

Cable jacket material

PVC

Certificates

Compliance certificates

RoHS, REACH

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 85%

Sustainability

Sustainability compliance

Yes

Packaging data

Package width

581.7 mm

Package depth

475 mm

Package height

114.3 mm

Package weight

3.45 kg

Logistics data

Country of origin

China

Master (outer) case width

599.4 mm

Master (outer) case length

497.8 mm

Master (outer) case height

497.8 mm

Master (outer) case gross weight

15.7 kg

Products per master (outer) case

4 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332262704

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.45 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
