Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA

22.2kW 3 phase 360-415V input, 208-240V output Local Metered Power Distribution Unit / rack PDU (rPDU)

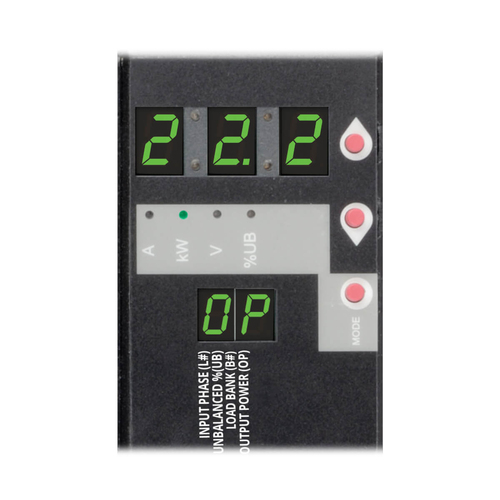

Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage

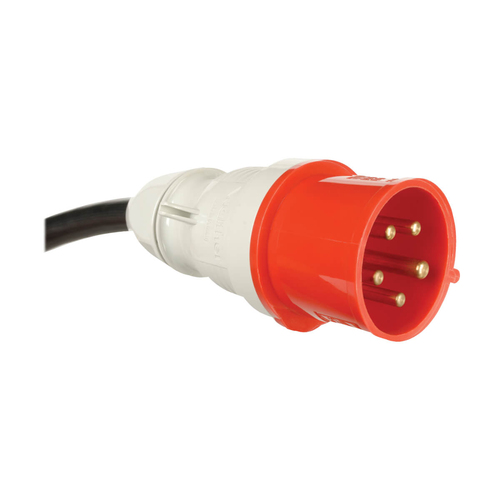

Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord

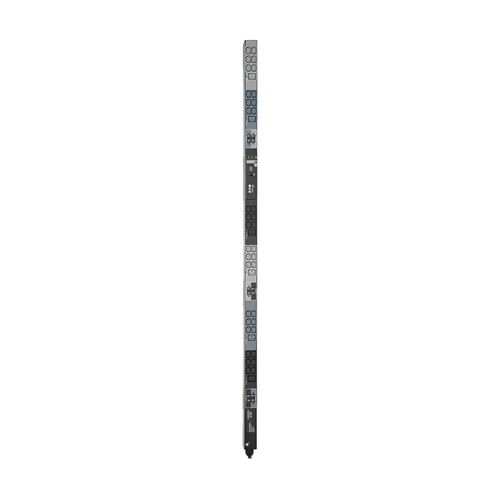

0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

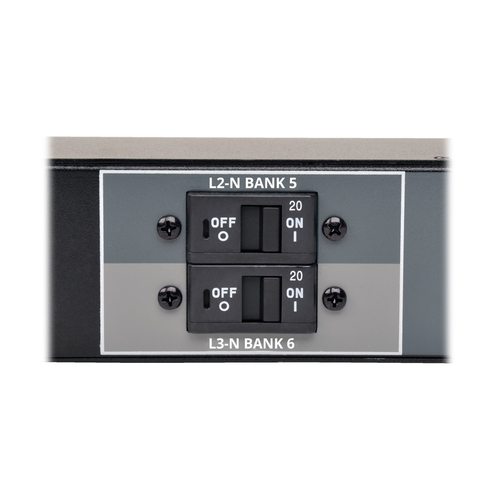

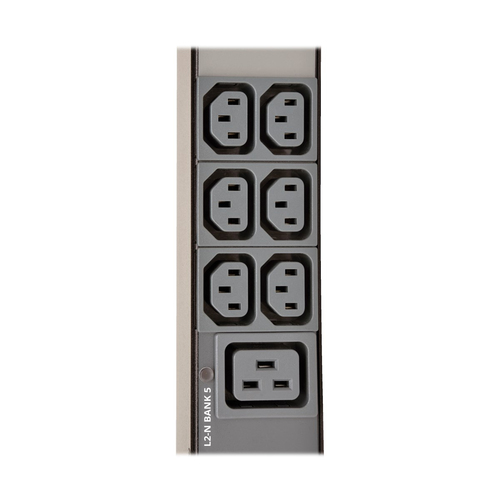

42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered

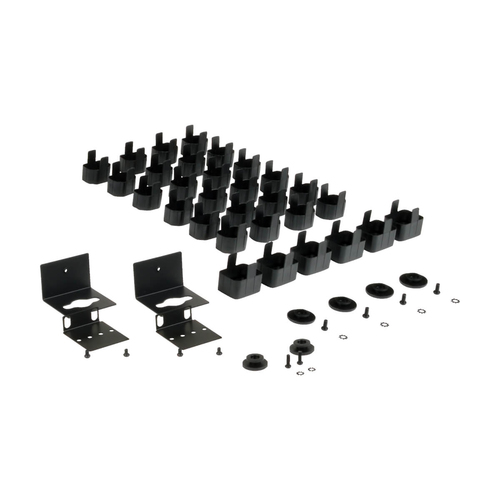

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

ON ORDER

SKU: PDU3XMV6G32

Manufacturer: Eaton Eaton

RRP Price €1,084.99

Specifications

Design

PDU types
Metered
Rack capacity
0U
Mounting
Vertical
Housing material
Metal
Product colour
Black
On/off switch
Yes

Ports & interfaces

AC outlets quantity
42 AC outlet(s)
Power plug
IEC309
AC outlet types
C13 coupler, C19 coupler
Master AC outlets quantity
36

Features

LED indicators
Yes
Cable length
1.83 m

Power

Nominal input voltage
380-400 V
AC input frequency
50 - 60 Hz
Maximum current
32 A
Nominal output voltage
200-240 V
Maximum total current draw per phase
16 A
Power protection features
Overload
Maximum power
23000 W

Certificates

Compliance certificates
RoHS
Certification
Tested to CE (IEC 60950-1, EN55022, EN55024), EN Class A (Emissions), TAA Compliant

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Operating temperature (T-T)
32 - 122 °F

Weight & dimensions

Width
55.1 mm
Depth
63.2 mm
Height
1778 mm
Weight
6.48 kg

Packaging data

Package weight
9.3 kg
Package width
150 mm
Package depth
175 mm
Package height
1945 mm

Logistics data

Country of origin
Taiwan
Products per master (outer) case
1 pc(s)
