APC SRT10KRMXLT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 7 AC outlet(s)

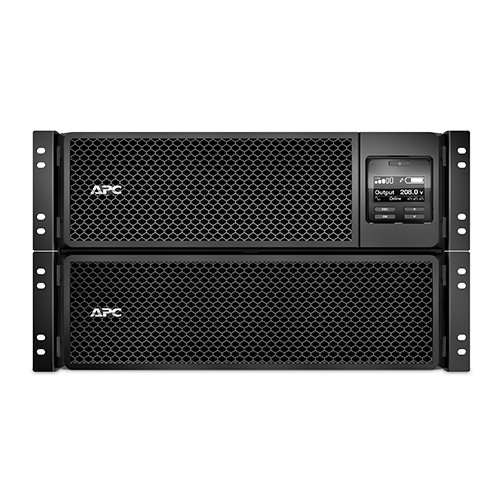

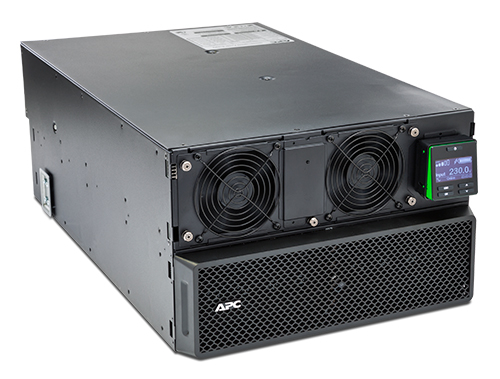

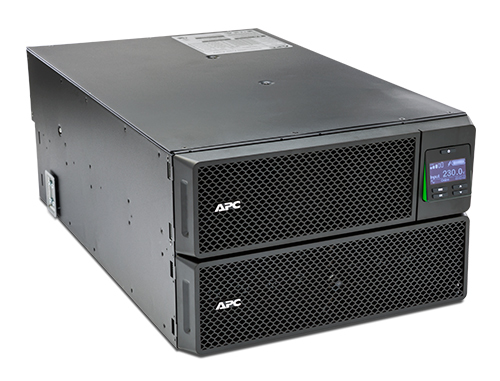

APC Smart-UPS SRT 10000VA RM 208V

High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

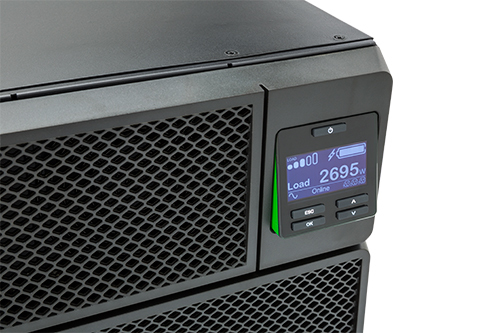

- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

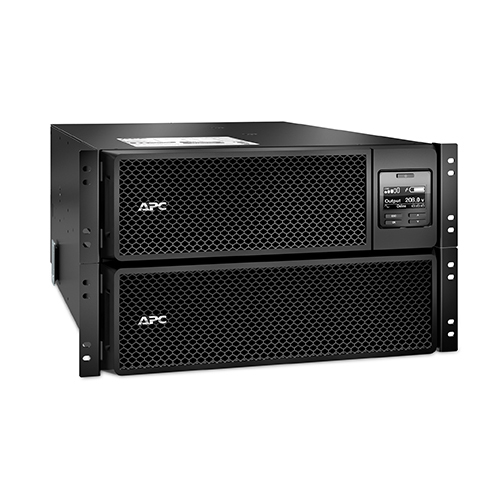

- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Availability

- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Scalable runtime
Allows additional run time to be quickly added as needed.

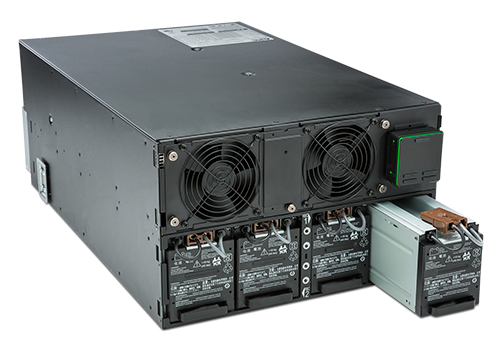

- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Manageability

- InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
- Network manageable
Provides remote power management of the UPS over the network.
- LED status indicators
Quickly understand unit and power status with visual indicators.
- SmartSlot
Customize UPS capabilities with management cards.
- Serial connectivity
Provides management of the UPS via a serial port.

Adaptability

- Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Serviceability

- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Protection

- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Marketing Features

Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

ON ORDER

SKU: SRT10KRMXLT

Manufacturer: APC APC

RRP Price €0.00

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
10 kVA
Output power
10000 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Output frequency
60 Hz
Surge energy rating
480 J
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Surge protection
Yes
Audible alarm(s)
Yes
Web-based management
Yes
Auto-restart
Yes

Ports & interfaces

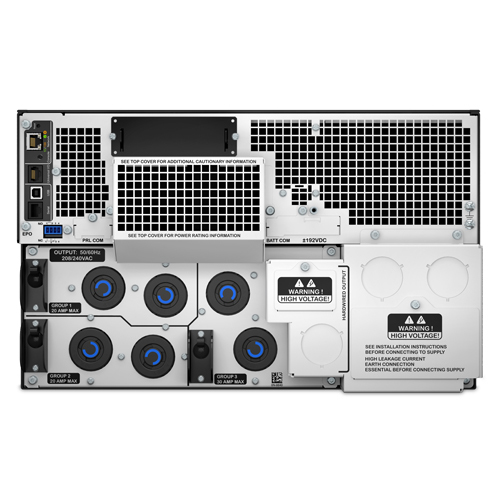

AC outlet types
NEMA 6–20R, NEMA 6–30R
AC outlets quantity
7 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Cabling technology
10/100Base-T
SmartSlot
Yes

Battery

Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
1799 VAh
Battery life (max)
5 year(s)
Battery recharge time
1.5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Replacement battery cartridge
APCRBC140

Design

Form factor
Rackmount/Tower
Rack capacity
6U
Product colour
Black
Display type
LCD
LED indicators
Alarm, Status
International Protection (IP) code
IP20

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m

Certificates

Compliance certificates
RoHS

Packaging content

Rack mount kit
Yes
Cables included
USB cable
Quick installation guide
Yes

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Width
432 mm
Depth
715 mm
Height
263 mm
Weight
111.6 kg

Packaging data

Temperature sensor
Yes
Resource CD
Yes
Warranty card
Yes
Software CD
Yes
Bundled software
CSA C22.2 No.107.3-05, FCC Part 15 Class A, NOM, OSHPD, UL 1778, REACH
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
129.7 kg

Logistics data

Products per pallet
1 pc(s)

Accessories
