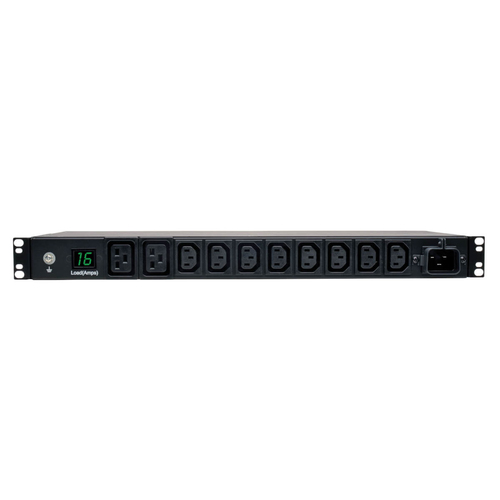

Tripp Lite PDUMH16HV 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (8 C13, 2 C19) IEC-309 16A Blue, 8 ft. (2.43 m) Cord, 1U Rack-Mount, TAA

3.7kW 16A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU)

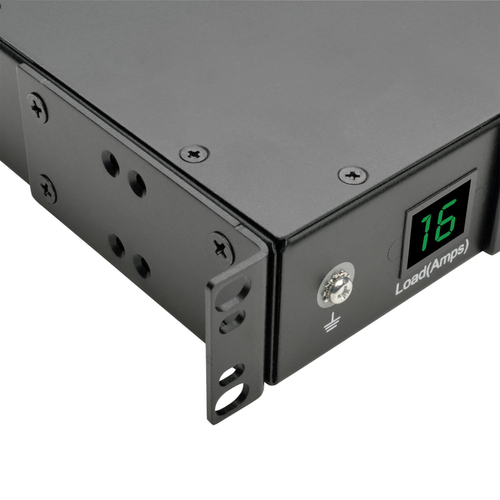

Built-in 2 digit visual meter continuously reports PDU load level in amps

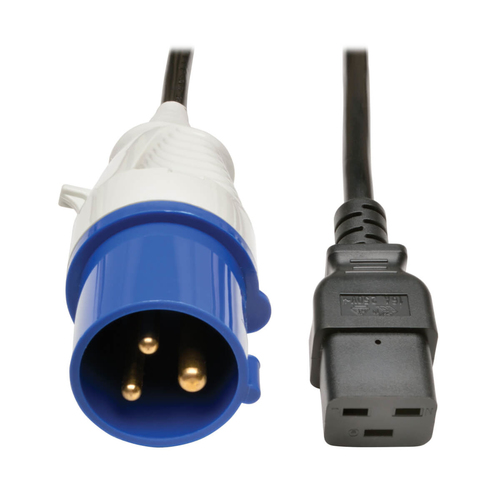

C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
1U horizontal rackmount format installs in one rack space
10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front panel grounding lug
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

ON ORDER

SKU: PDUMH16HV

Manufacturer: Eaton Eaton

RRP Price €244.54

Specifications

Design

PDU types
Metered
Rack capacity
1U
Mounting
Horizontal
Housing material
Metal
Product colour
Black
Display
LCD

Ports & interfaces

AC outlets quantity
10 AC outlet(s)
Power plug
IEC309
AC outlet types
C13 coupler, C19 coupler
Output connections
8 x C13 & 2 x C19

Features

LED indicators
Yes
Cable length
2.5 m

Power

Nominal input voltage
200-240 V
Maximum current
16 A
Nominal output voltage
200-240 V

Certificates

Compliance certificates
RoHS
Certification
CE (IEC / EN60950-1), GOST

Operational conditions

Operating temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m

Weight & dimensions

Width
444 mm
Depth
165 mm
Height
28.7 mm
Weight
1.77 kg

Packaging data

Package weight
2.95 kg
Package width
521 mm
Package depth
279 mm
Package height
76 mm

Logistics data

Country of origin
Taiwan
Master (outer) case width
519.9 mm
Master (outer) case length
277.9 mm
Master (outer) case height
77 mm
Master (outer) case gross weight
2.95 kg
Products per master (outer) case
1 pc(s)
