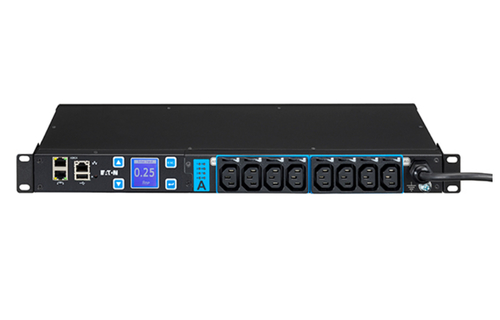

Eaton EMAH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU

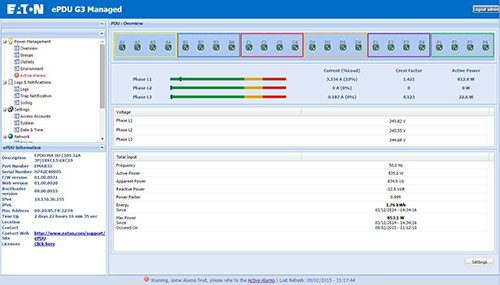

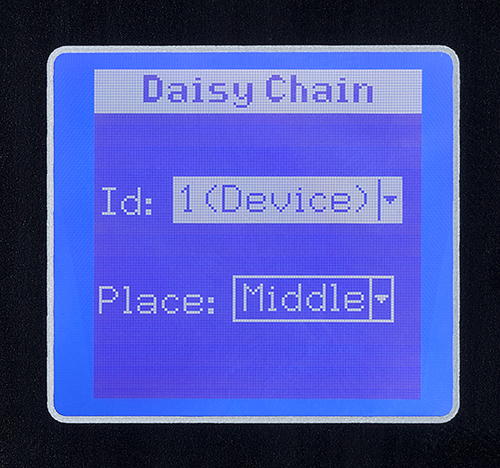

ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

ON ORDER

SKU: EMAH28

Manufacturer: Eaton Eaton

RRP Price €1,125.92

Specifications

Design

PDU types
Managed
Type
Single-phase
Form factor
Rackmount
Rack mounting
Yes
Rack capacity
1U
Mounting
Horizontal
Product colour
Black
Cable colour
Black
Display
LCD

Ports & interfaces

AC outlets quantity
8 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
Output connections
8 x C13

Features

LED indicators
Yes
Cable length
3 m

Management features

Monitoring
Voltage
Supported network protocols
HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
Management protocols
SNMP, Telnet
Firmware upgradeable
Yes
Firmware upgradeable via
Network, USB

Power

Nominal input voltage
230 V
AC input frequency
50 Hz
Maximum current
16 A
Nominal output voltage
230 V
Maximum input current per phase
16 A
Maximum power
3700 W

Certificates

Compliance certificates
RoHS
Certification
CB, CE, EN 60950-\n1:2006/A11:2009/A1:2010/A12:2011\nEN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Weight & dimensions

Width
445 mm
Depth
203 mm
Height
43 mm
Weight
3.4 kg

Packaging content

Cables included
LAN (RJ-45)
Rack mount kit
Yes

Packaging data

Package weight
5.8 kg
Package width
375 mm
Package depth
570 mm
Package height
195 mm
