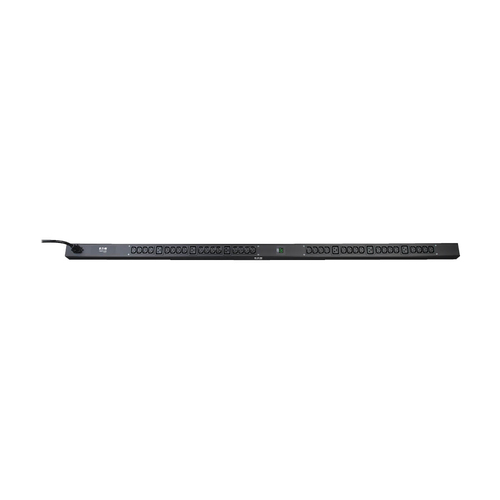

Tripp Lite PDUMV20HV 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical

16/20A single phase 230/208V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 16A continuous)
Two-digit lighted meter reports combined total output current in amps
10ft / 3m detachable input cable with NEMA L6-20P plug
C20 inlet accepts a variety of 16A international cordsets
0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
38 total outlets (6 C19, 32 C13)

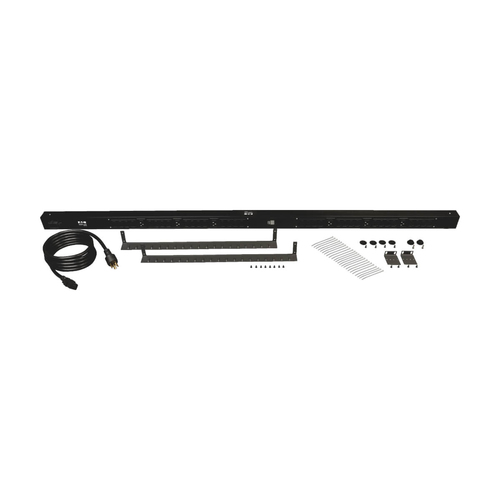

Included plug-lock inserts ensure components remain connected and powered
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

ON ORDER

SKU: PDUMV20HV

Manufacturer: Eaton Eaton

RRP Price €285.46

Specifications

Design

PDU types
Metered
Rack capacity
0U
Mounting
Vertical
Housing material
Aluminium
Product colour
Black

Ports & interfaces

AC outlets quantity
38 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Input connection type
NEMA L6-20P, IEC-320 C20

Features

LED indicators
Yes
Cable length
3.05 m

Power

Nominal input voltage
200-240 V
AC input frequency
50 - 60 Hz
Maximum current
20 A
Nominal output voltage
200-240 V

Certificates

Compliance certificates
RoHS
Certification
UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950)

Operational conditions

Storage temperature (T-T)
-15 - 50 °C
Operating altitude
0 - 3000 m

Weight & dimensions

Width
57 mm
Depth
95 mm
Height
1620 mm
Weight
2.36 kg

Packaging data

Package weight
4.31 kg
Package width
88.9 mm
Package depth
1663.7 mm
Package height
127 mm

Logistics data

Country of origin
China
Master (outer) case GTIN (EAN/UPC)
10037332139341
Master (outer) case width
406.4 mm
Master (outer) case length
1676.4 mm
Master (outer) case height
177.8 mm
Master (outer) case gross weight
27.6 kg
Products per master (outer) case
6 pc(s)
