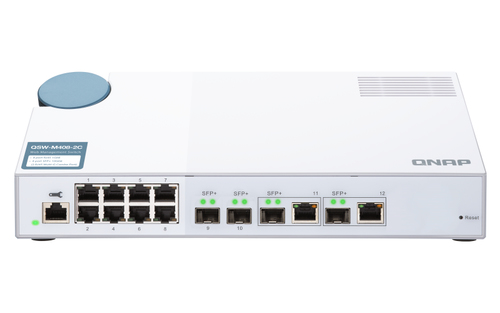

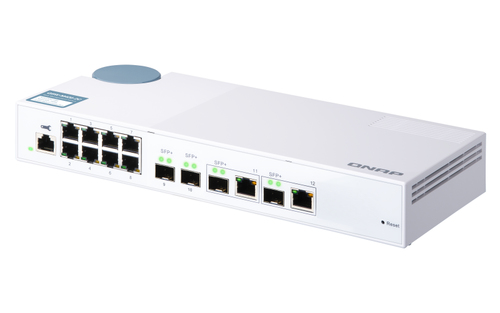

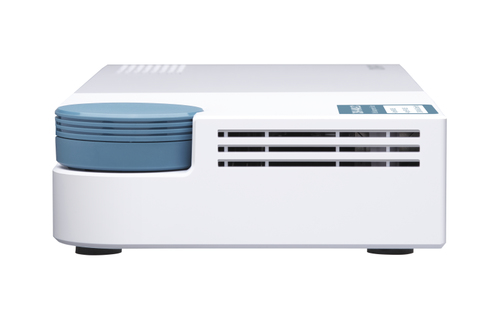

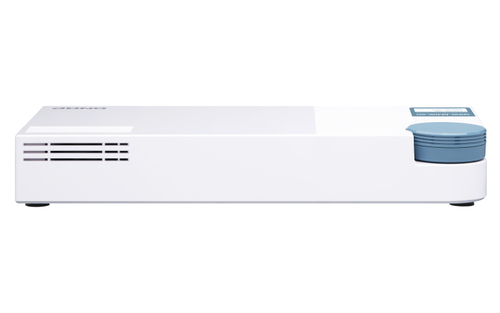

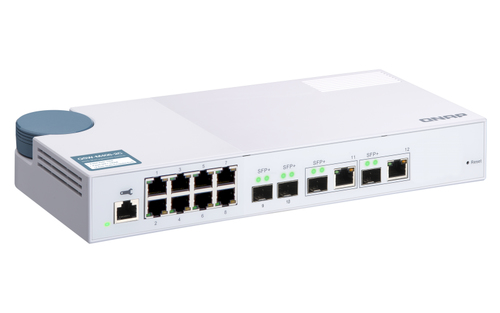

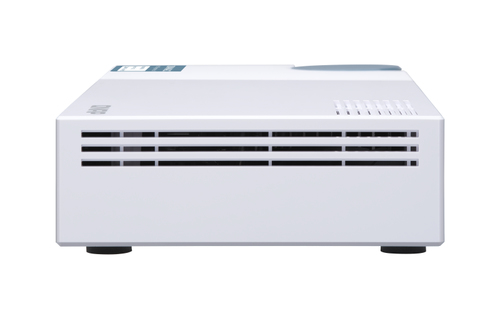

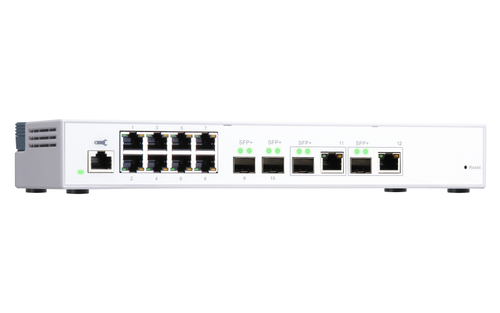

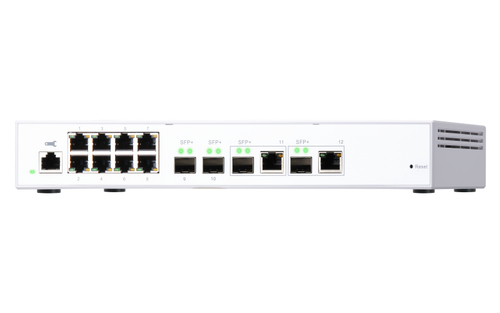

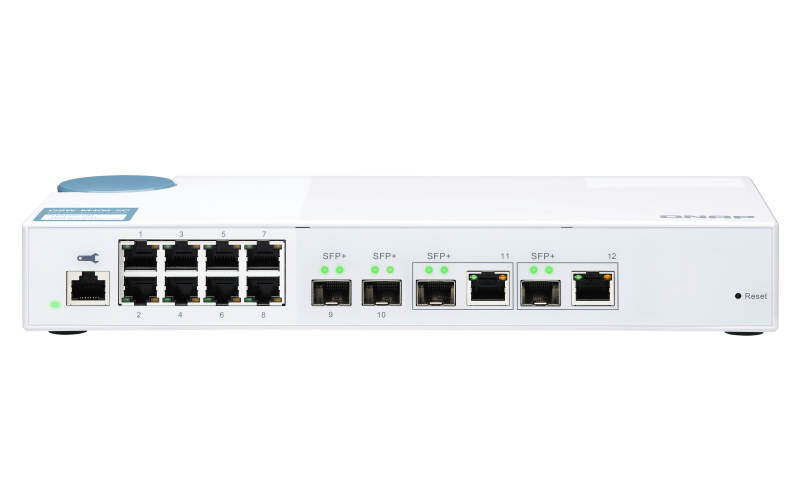

QNAP QSW-M408-2C network switch Managed L2 10G Ethernet (100/1000/10000) White

The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.

ON ORDER

SKU: QSW-M408-2C

Manufacturer: QNAP QNAP

RRP Price €406.05

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity
8
Combo SFP ports quantity
2
SFP+ module slots quantity
2
Fiber optic connector
SFP+
Console port
RJ-45

Network

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Cable types supported
Cat5, Cat5e, Cat6
Full duplex
Yes
Flow control support
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Private VLAN

Data transmission

Switching capacity
96 Gbit/s
Throughput
48 Gbit/s
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
9000

Security

DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes

Design

Rack mounting
No
Stackable
No
Product colour
White
Reset button
Yes
LED indicators
Activity, Link, Power, Speed, Status
Number of fans
1 fan(s)
Electromagnetic compatibility
CLASS A

Performance

Noise level
21 dB

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
22.04 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
290 mm
Depth
127 mm
Height
42.5 mm
Weight
1.15 kg

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package weight
1.57 kg

Certificates

Certification
CE, FCC, VCCI, BSMI, CCC

Logistics data

Harmonized System (HS) code
85176990
