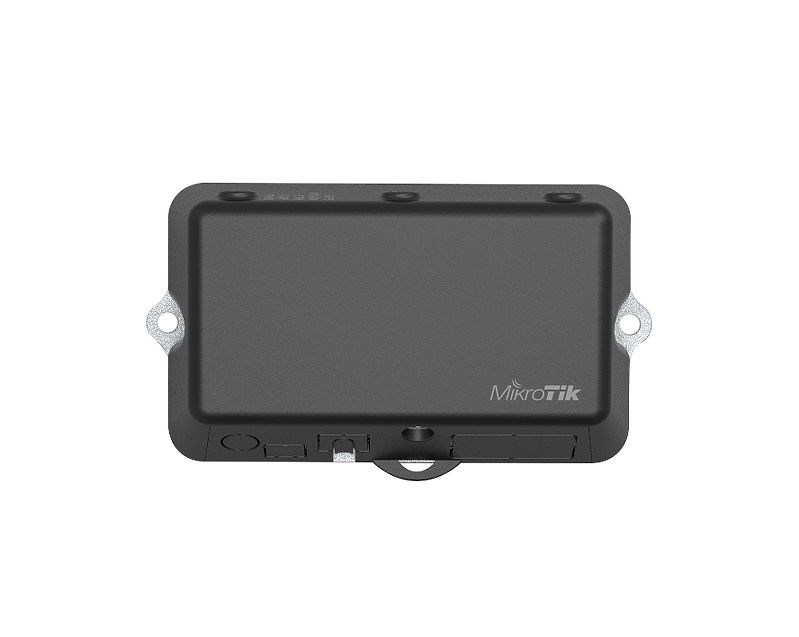

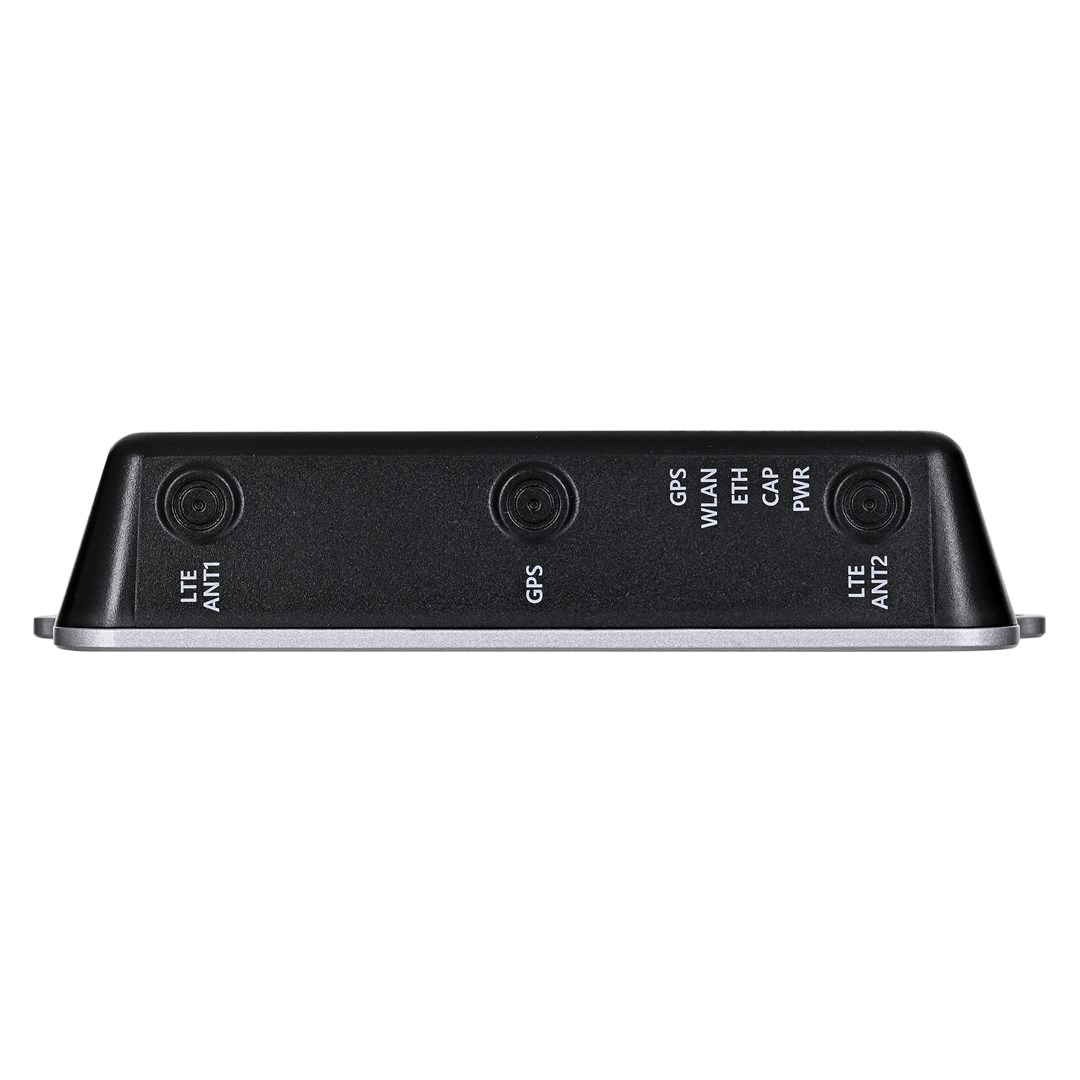

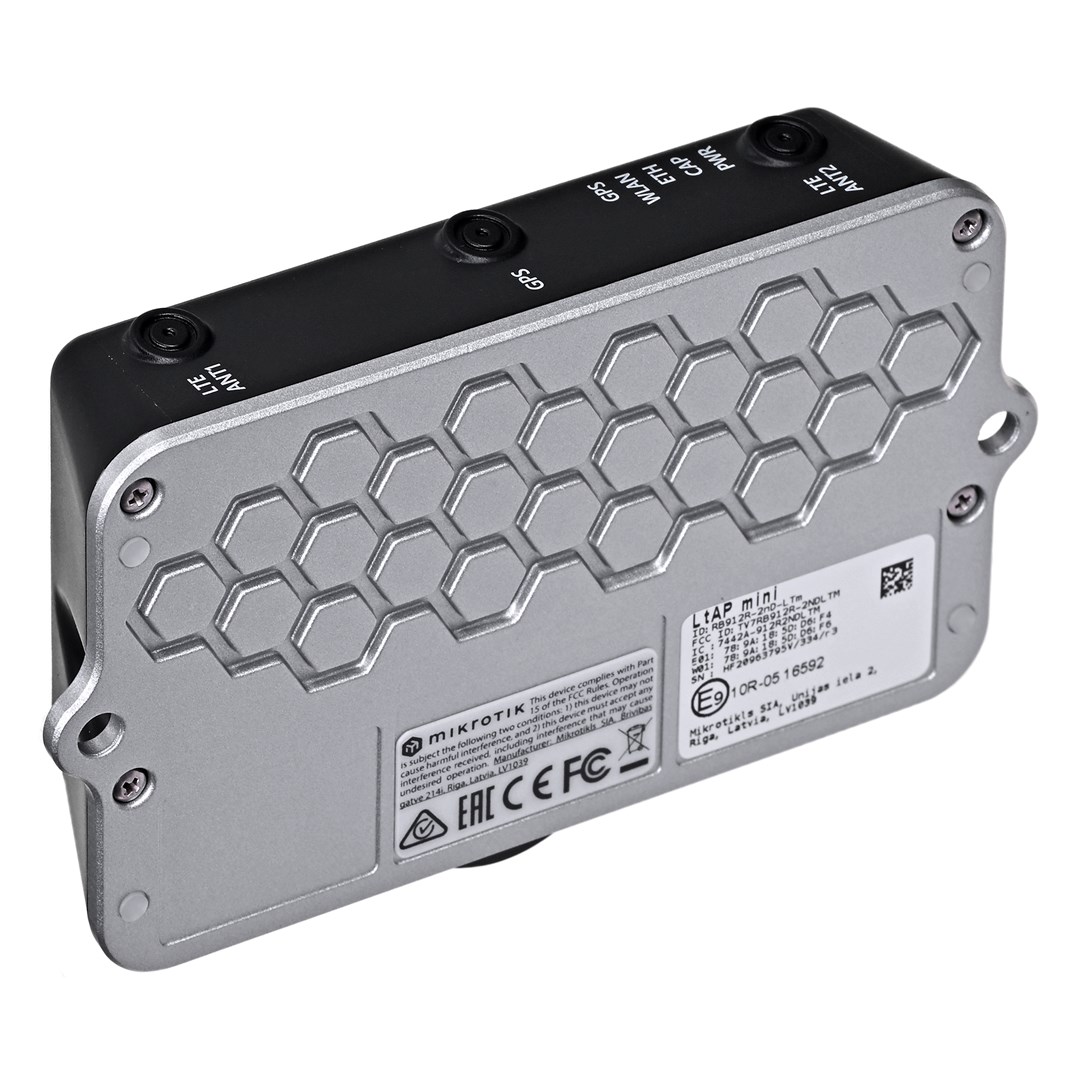

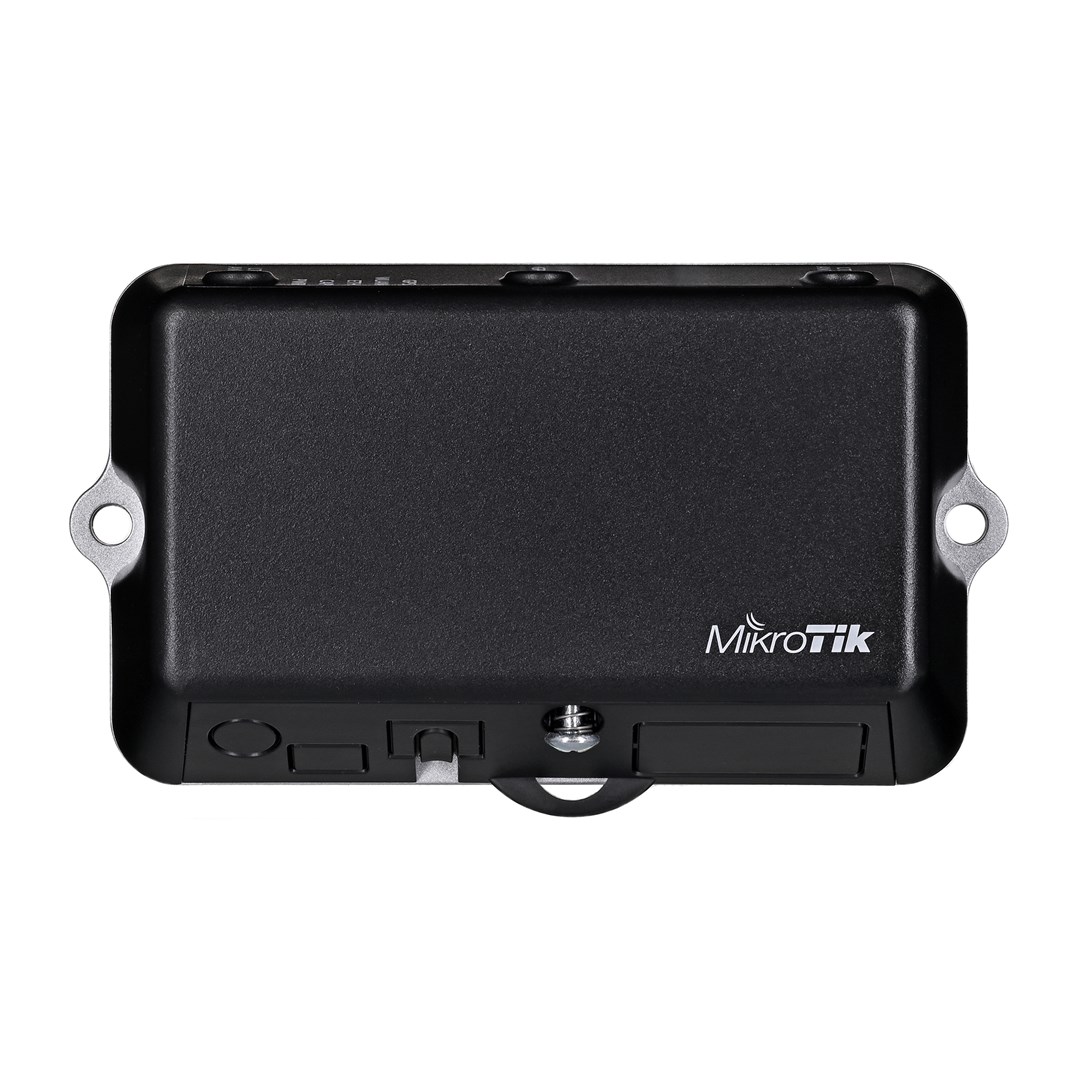

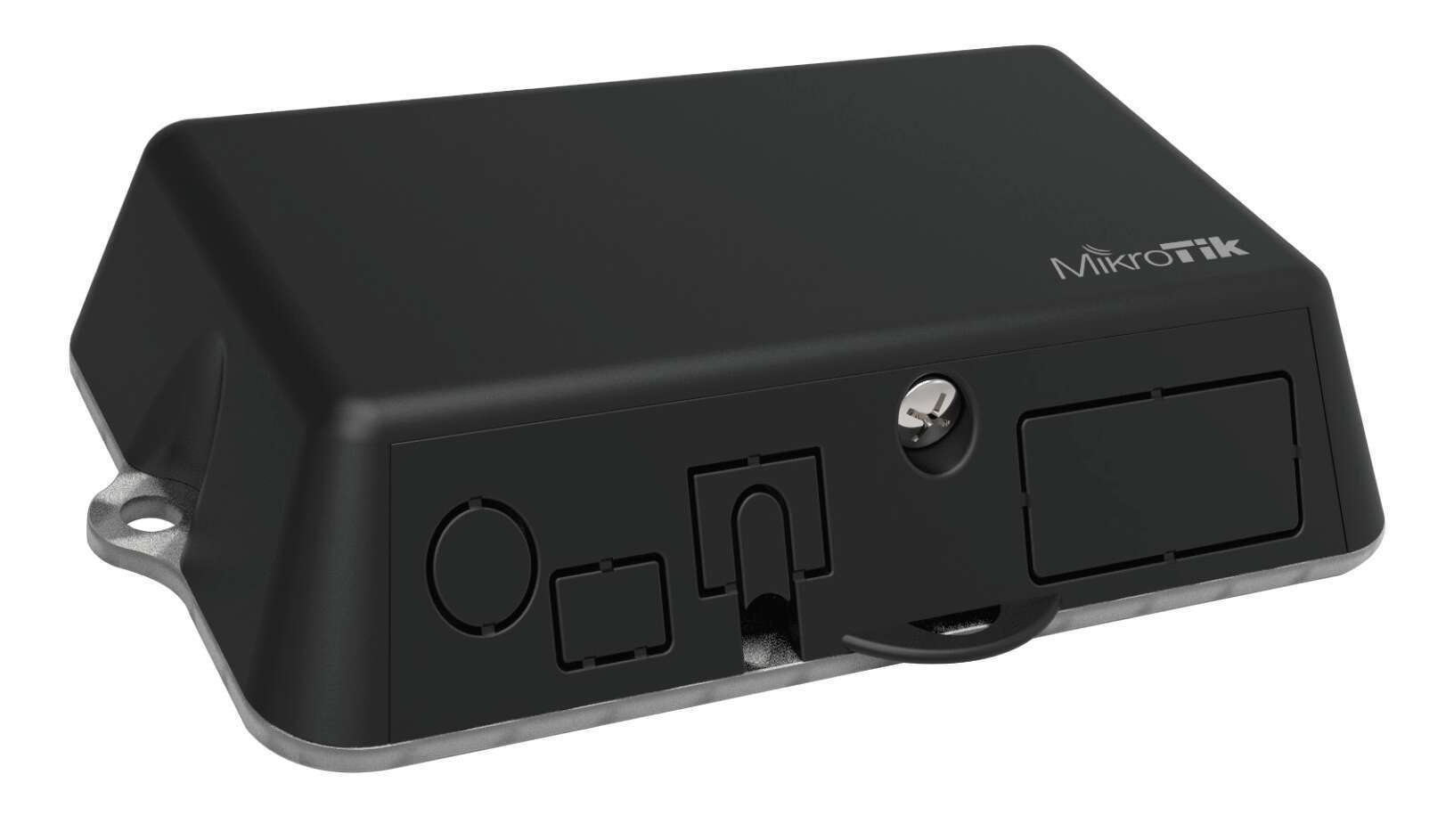

Mikrotik LtAP mini 54 Mbit/s Black

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

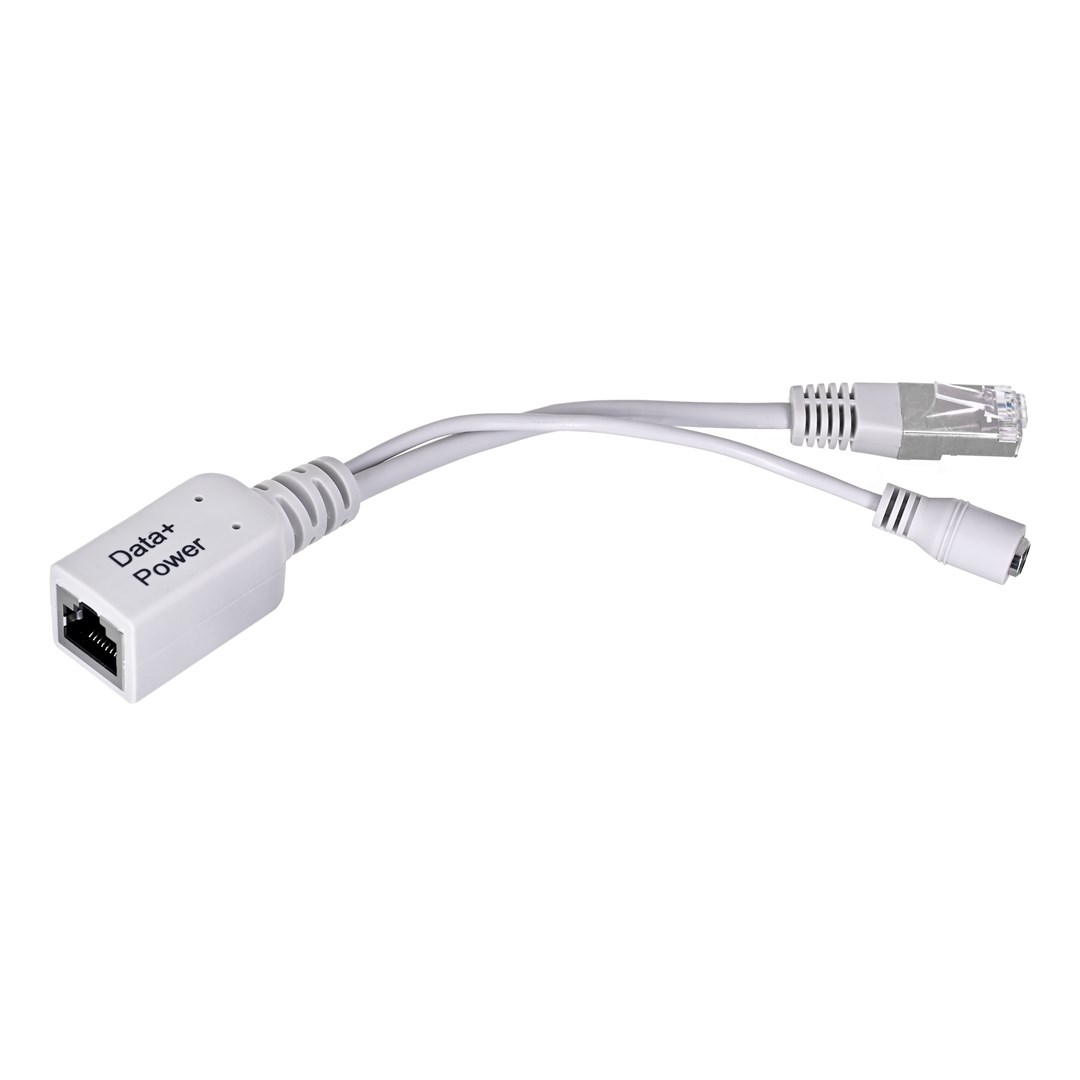

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

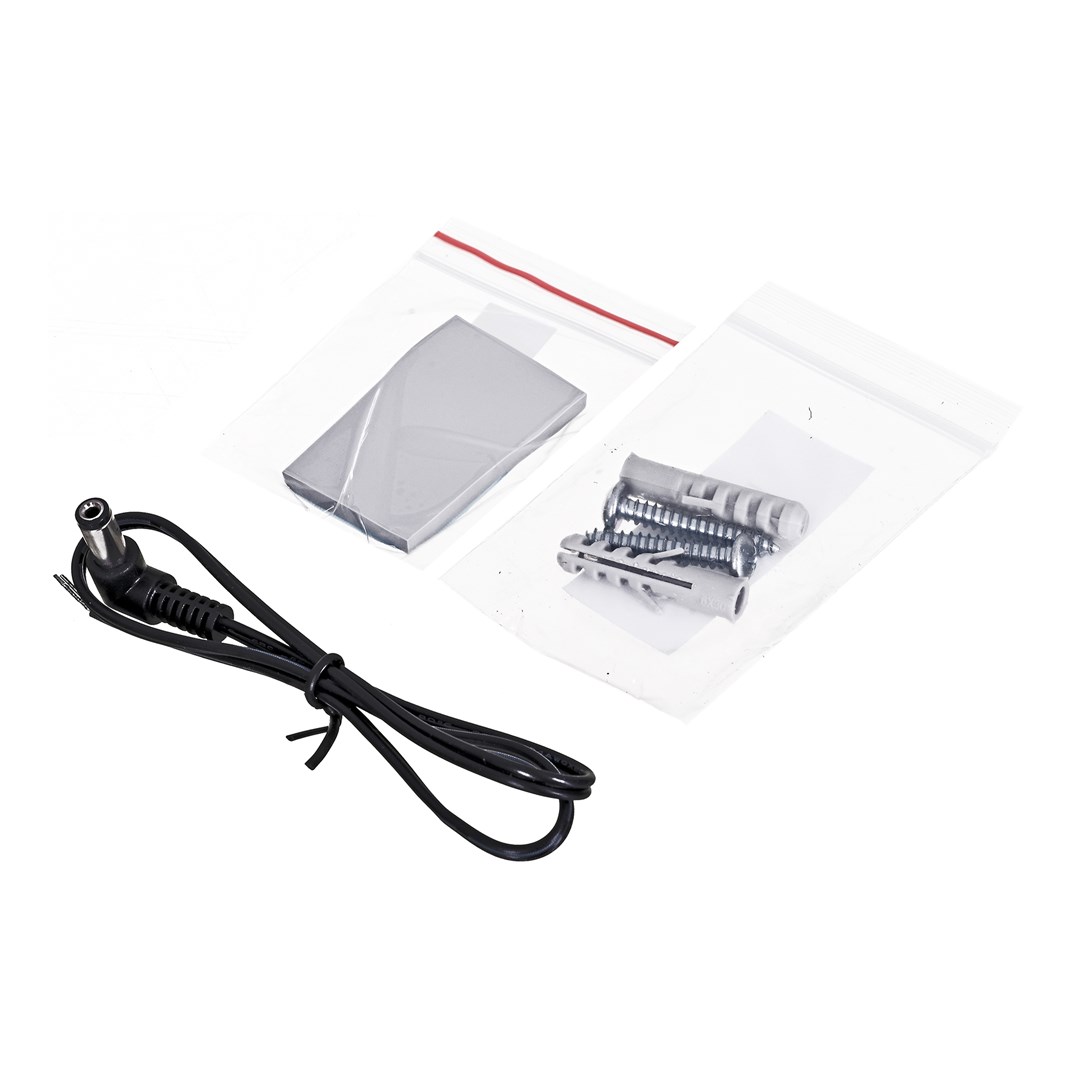

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).

17 IN STOCK

SKU: RB912R-2nD-LTm

Manufacturer: Mikrotik Mikrotik

RRP Price €102.75

Specifications

Features

2.4 GHz
Yes
5 GHz
No
Maximum data transfer rate
54 Mbit/s
Wi-Fi data rate (max)
54 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB connector type
Micro-USB
WAN connection
Mobile network (SIM)
RS-232 interface
Yes

Power

AC input voltage
8 - 30 V
Power consumption (max)
4 W

Design

Placement
Table
Product colour
Black
Internal
No

Antenna

Antenna gain level (max)
1.5 dBi

Performance

Built-in processor
Yes
Flash memory
16 MB
Internal memory
64 MB
Operating system installed
RouterOS

Weight & dimensions

Width
139 mm
Depth
77 mm
Height
28.5 mm

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
