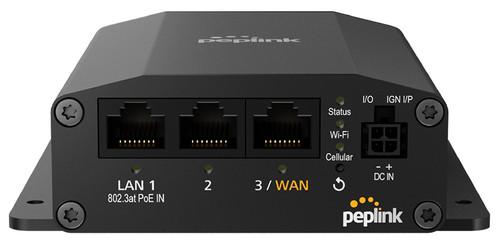

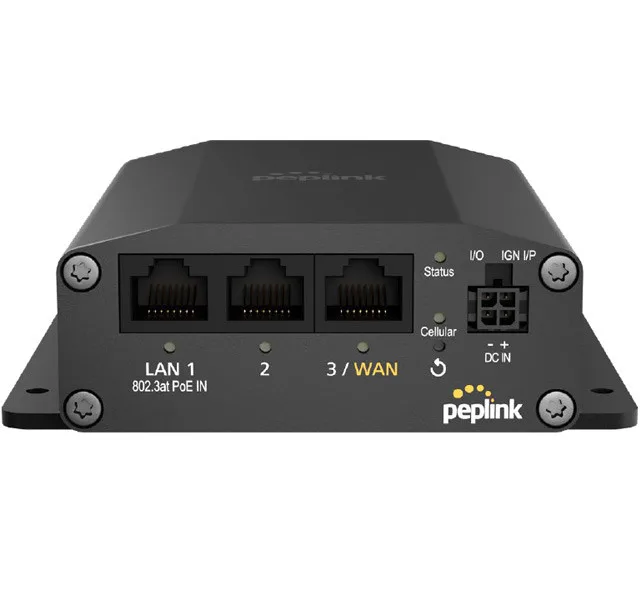

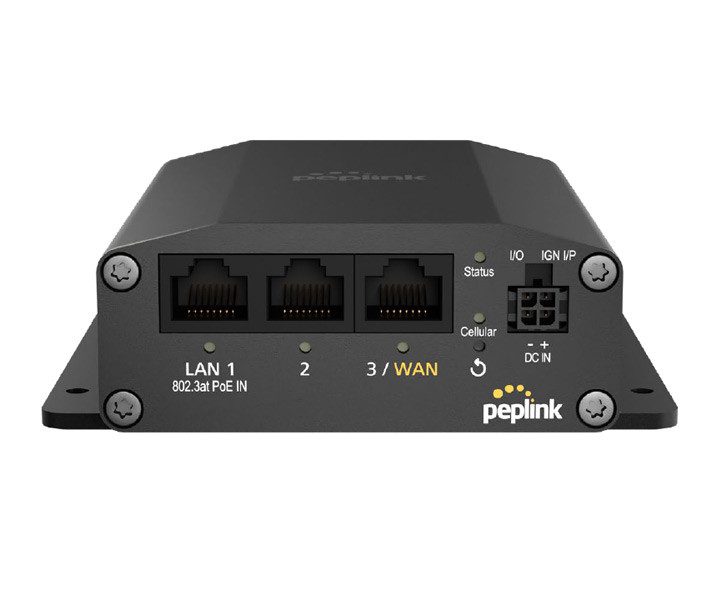

Peplink BR1 Mini 5G Cellular network modem

4G connectivity might work fine today, but the switch to 5G is inevitable.
Futureproof your network with the latest 5G technology, and keep your network running for many years to come.

A single SKU for global deployments
Extensive list of compatible 5G/LTE bands. Native 5G NSA and SA mode support.

Private 5G Support
Adding devices to your Private 5G network is no longer a hassle. Integration can be as simple as plug and play.

One device to do it all
Bring 5G Wi-Fi to your setup with a single compact device. This means simpler networks, lower costs and fewer points of failure.

Utilize Wi-Fi WAN for Added Reliability
Take an existing Wi-Fi connection and use it as an additional WAN for yourself.

Having multiple redundant WANs helps ensure your connection stays up when your 5G or wired connection falters.

Have an existing network? Add the BR1 Mini 5G as a 5G adapter with zero hassle. Need something more? The device can also act as a gateway/router for multiple WANs.

Stay in touch with InTouch
Access connected devices, like sensors and cameras, with out of band management at 5G speed.

Monitor your entire network from a single screen
Remotely access your Peplink devices’ web admin with InControl 2, our cloud-based endpoint management system. Generate reports and push configurations for more effective management.

Key BR1 Mini 5G Benefit
An exceptionally reliable, rugged 5G Cellular Router that connects your data and Internet applications – wherever they are.

Future-proof Connectivity
With the latest cellular LTE and 5G via SIM or eSIM and a second optional Ethernet WAN , the BR1 Mini 5G connects your Ethernet devices with up to 300Mbps throughput.

Ruggedized and Reliable
Built in a rugged & reliable metal case with fanless, ventless design certified for shock and vibration resistance for deployment virtually anywhere.

Designed for Remote Operation
With central management via Peplink InControl 2 and local device management via Peplink InTouch , the BR1 Mini saves time and reduces field visits.

115 IN STOCK

SKU: MAX-BR1-MINI-5GN-T-PRM

Manufacturer: Peplink Peplink

RRP Price €638.37

Specifications

Design

Device type
Cellular network modem
Product colour
Black
Housing material
Metal
Built-in display
No

Ethernet LAN features

Ethernet LAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3at

Wireless LAN features

Wi-Fi
No
Number of WLAN connections (max)
60

Mobile network

Data network
4G, 5G
Number of SIM cards
2
SIM card type
NanoSIM + eSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports
3
USB port
No

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
FCC, CE, RoHS EN 61000 Electromagnetic Compatibility EN 45545-2 Railway applications - Fire protection

Performance

Antenna connector type
SMA
Antennas quantity
4

Power

Power source type
AC
Power consumption (typical)
11 W
Input voltage
100 - 240 V

Operational conditions

Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
15 - 95%

Weight & dimensions

Width
125.7 mm
Depth
107 mm
Height
35 mm
Weight
420 g

Logistics data

Warranty period
1 year(s)

Accessories

License
