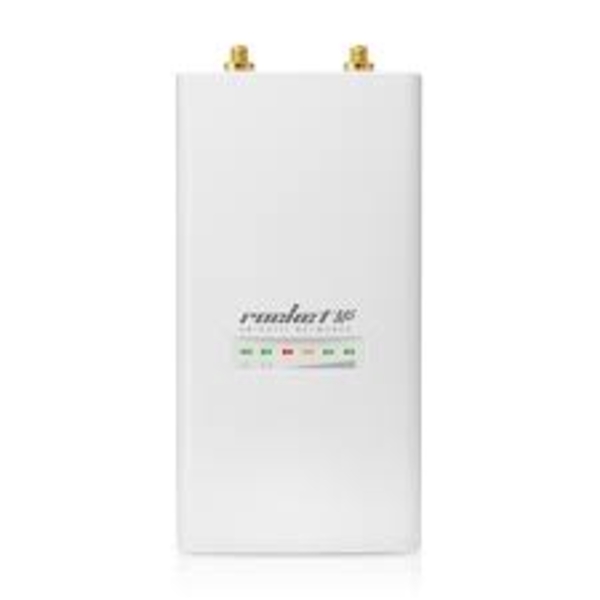

Ubiquiti Rocket M5 300 Mbit/s White

Ubiquiti Rocket M5, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

ON ORDER

SKU: ROCKETM5

Manufacturer: Ubiquiti Ubiquiti

RRP Price €112.36

Specifications

Features

Maximum data transfer rate
300 Mbit/s
Wi-Fi data rate (max)
300 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
5.47 - 5.825 GHz
Networking standards
IEEE 802.11a, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Modulation
OFDM
Maximum outdoor range
50000 m
Receiver sensitivity
-96 dBm

Security

Security algorithms
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA2

Protocols

DHCP server
Yes
DHCP client
Yes

Ports & interfaces

Interface
LAN, WLAN
Ethernet LAN (RJ-45) ports
1

Power

AC input voltage
24 V
Input current
1 A
Output power description
27 dBm
Power consumption (typical)
6.5 W

Design

Product colour
White
LED indicators
Yes
Internal
No

Antenna

Antenna type
External
Antenna features
Detachable antenna
Antennas quantity
2
Antenna connector type
RP-SMA

Performance

Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
400 MHz
Processor architecture
MIPS 24Kc
Flash memory
8 MB
Internal memory
64 MB

Certificates

Certification
FCC Part 15.247, IC RS210, CE RoHS

Weight & dimensions

Width
80 mm
Depth
30 mm
Height
160 mm
Weight
500 g

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 75 °C

Accessories

License
