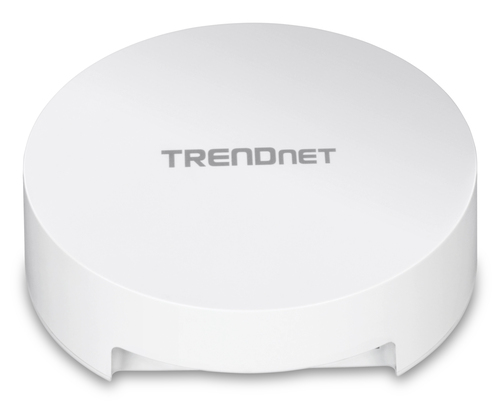

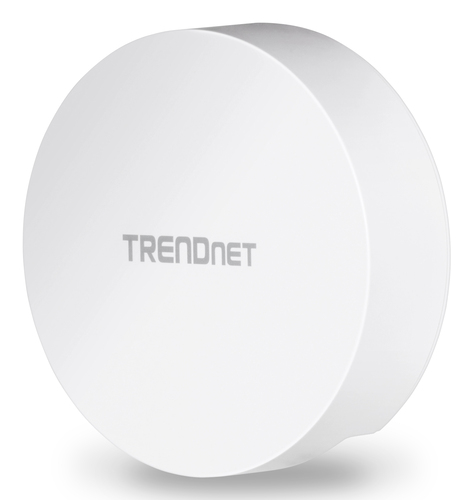

Trendnet TEW-823DAP wireless access point 1267 Mbit/s White Power over Ethernet (PoE)

TRENDnet’s high performance AC1300 Dual Band Indoor Wireless PoE Access Point, model TEW-823DAP, supports Access Point (AP and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate.

ON ORDER

SKU: TEW-823DAP

Manufacturer: Trendnet Trendnet

RRP Price €61.15

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1267 Mbit/s
Maximum data transfer rate (2.4 GHz)
400 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
MIMO
Yes
MIMO type
Multi User MIMO
Band steering
Yes
Receiver sensitivity
802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -87 dBm (typical) @ 11Mbps 802.11g: -73 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps 802.11ac: -57 dBm (typical) @ 867 Mbps

Security

Security algorithms
WPA2, WPA2-Personal, WPA3-PSK, WPA3-Personal
Number of SSID supported
16

Protocols

Universal Plug and Play (UPnP)
Yes

Management features

Web-based management
Yes
Access point management
Wi-Fi schedule

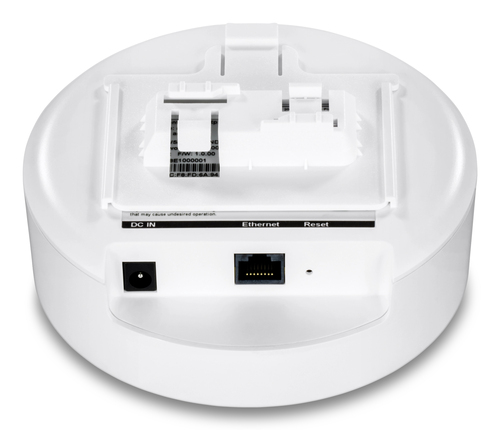

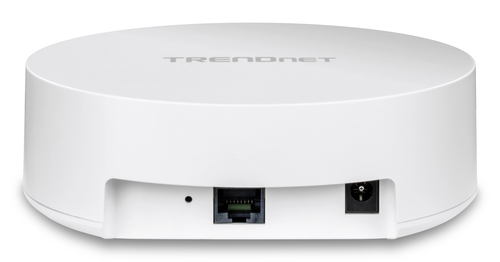

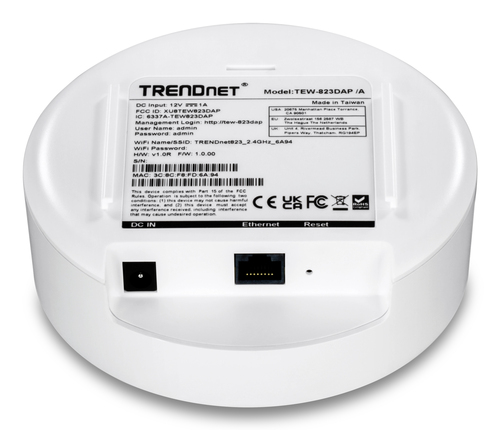

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
11.9 W

Design

Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal

Certificates

Certification
CE FCC IC

Weight & dimensions

Width
130 mm
Depth
130 mm
Height
46 mm
Weight
188 g

Packaging content

Quantity per pack
1 pc(s)
Cables included
LAN (RJ-45)
Quick start guide
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
