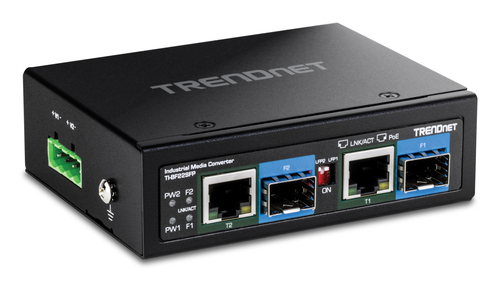

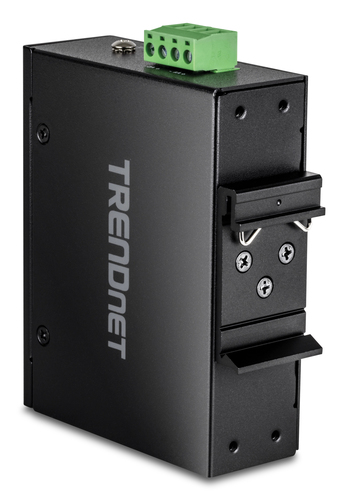

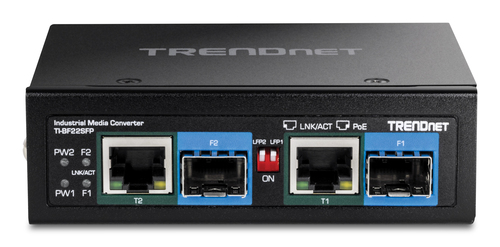

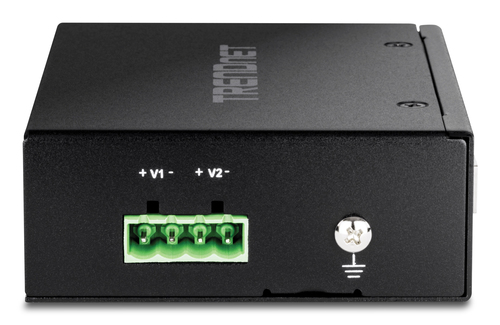

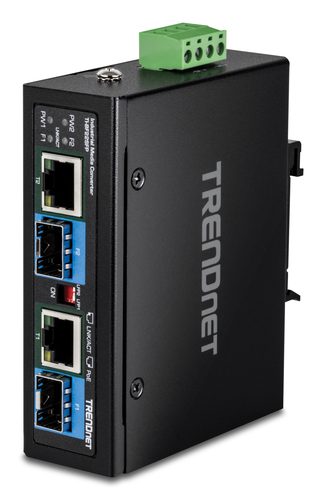

Trendnet TI-BF22SFP network media converter 1000 Mbit/s Black

TRENDnet’s 2-Port Industrial SFP to Gigabit PoE++ Media Converter, model TI-BF22SFP, converts two long distance fiber connections to copper connections, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the industrial PoE++ fiber media converter features a hardened IP30 rated metal housing suitable for tough, industrial environments. The industrial PoE++ fiber media converter’s rugged design also provides protection from shock, freefall, and vibration.

ON ORDER

SKU: TI-BF22SFP

Manufacturer: Trendnet Trendnet

RRP Price €217.04

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Jumbo frames
16000
Auto-negotiation
Yes
Duplex system
Full

Performance

Mean time between failures (MTBF)
551468 h

Features

Internal
No
Product colour
Black
Housing material
Metal
International Protection (IP) code
IP30

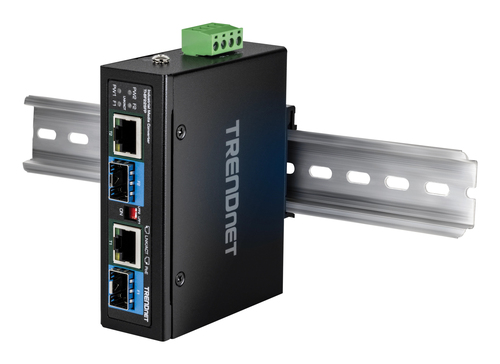

DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
2
Fiber ports quantity
2
Fiber optic connector
SFP
Power over Ethernet (PoE) ports quantity
2

Power

Input voltage
48 - 56 V
Power consumption (typical)
3.84 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
90 W

Weight & dimensions

Width
104 mm
Depth
81.5 mm
Height
32 mm
Weight
176 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Certificates

Certification
CE FCC

Accessories

License
