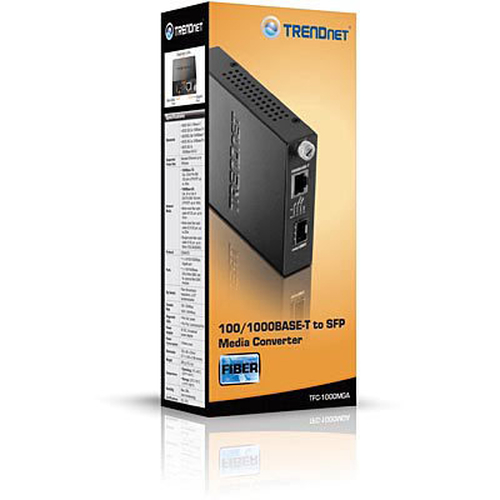

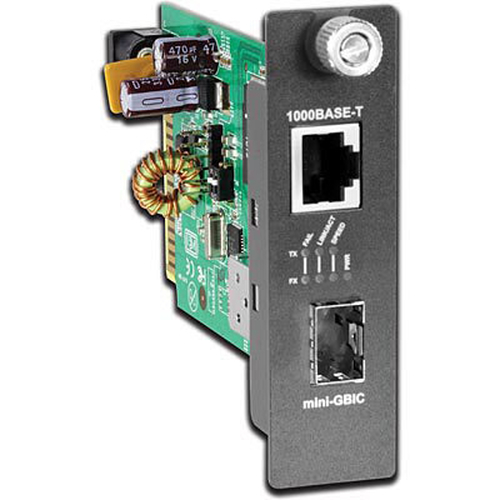

Trendnet TFC-1000MGA network media converter Internal 1000 Mbit/s Multi-mode Black, Silver

TRENDnet’s 100/1000BASE-T to SFP Media Converter, model TFC-1000MGA, is a reliable Plug-and-Play Fiber-to-Ethernet converter in a compact form factor. This versatile fiber converter supports both Multi-Mode (SX) and Single-Mode (LX) fiber standards for transmission distances of up to 80 kilometers (50 miles).

The Mini-GBIC slot and Gigabit Ethernet port Auto-Negotiate between 100 and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Control Auto-Negotiation (Forced/Auto-Negotiation) and Link Loss Return (Enable/Disable) with an internal dip-switch. This sturdy metal housed converter can be installed as a standalone unit and is compatible with TRENDnet’s expandable 16-Bay Fiber Converter Chassis System, model TFC-1600

- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
- 1 x 10/100/1000Base-T RJ-45 port
- 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power, Link/Activity and Fail
- Wall mountable
- Compatible with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters)

ON ORDER

SKU: TFC-1000MGA

Manufacturer: Trendnet Trendnet

RRP Price €47.60

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-LX
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Duplex system
Full

Performance

Maximum transfer distance
220 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
9/125 µm

Features

Internal
Yes
LED indicators
Yes
Product colour
Black, Silver

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP
DC-in jack
Yes

Power

Input voltage
5 V
Input current
1 A
Power consumption (typical)
3 W
External power adapter
Yes

Weight & dimensions

Weight
285 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 70 °C

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Other features

Dimensions (WxDxH)
120 x 88 x 25 mm
