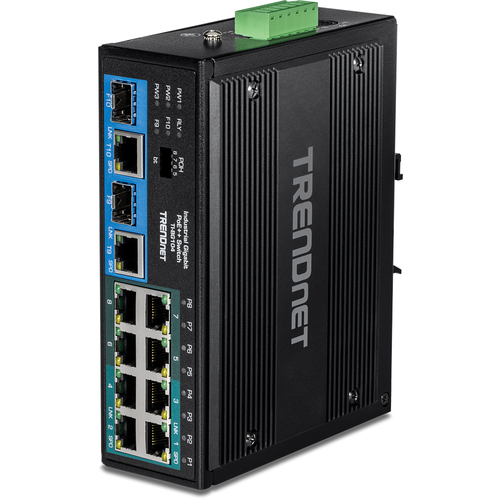

Trendnet TI-BG104 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches by delivering up to 90W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

ON ORDER

SKU: TI-BG104

Manufacturer: Trendnet Trendnet

RRP Price €461.43

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
10
Combo SFP ports quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
8.9 Mpps
MAC address table
11000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
2 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
510304 h

Power

Power source
DC/PoE
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2 A
Input voltage
48 - 56 V
Power consumption (max)
6.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet 4PPoE (PoE++) ports quantity
4
Total Power over Ethernet (PoE) budget
360 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
122 mm
Depth
48 mm
Height
158 mm
Weight
630 g

Packaging content

Quick start guide
Yes

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE
Certification
FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
