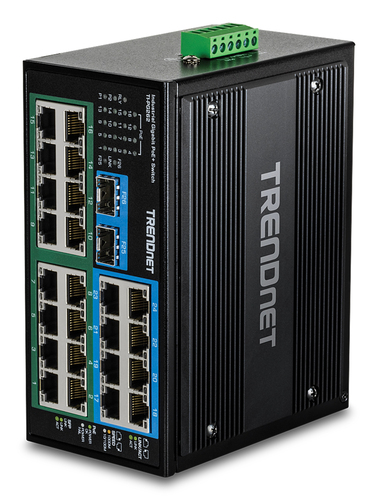

Trendnet TI-PG262 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-PG262 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TI-PG262 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-PG262
Price: 583.05 EUR
Availability: OutOfStock

TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These Industrial Unmanaged PoE+ Switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime. TI-PG262 Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PG262

Manufacturer: Trendnet

RRP Price €583.05

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Port mirroring

Yes

Half duplex

Yes

Auto-negotiation

Yes

Data transmission

Switching capacity

52 Gbit/s

Forwarding rate

38.6 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Design

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

DIN rail mounting

Yes

Performance

Mean time between failures (MTBF)

503149 h

Power

Power source

DC/PoE

DC input voltage

48 - 56 V

Power consumption (max)

5.76 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

480 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Weight & dimensions

Width

155 mm

Depth

120 mm

Height

78 mm

Weight

900 g

Certificates

Certification

CE FCC LVD

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.9 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
