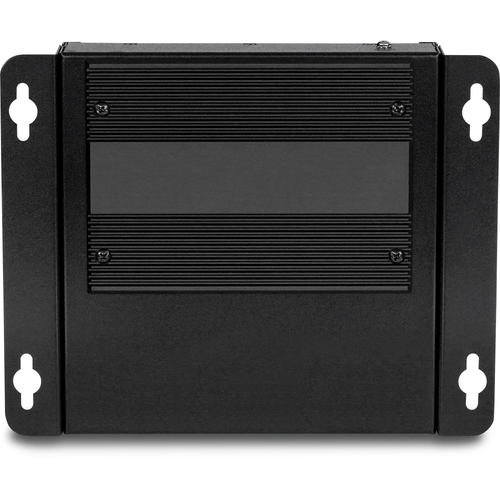

Trendnet TI-TPG80 network switch Managed Power over Ethernet (PoE) Black

TRENDnet’s 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-TPG80, has eight M12 gigabit PoE+ ports with a total PoE budget of up to 200W. This M12 railway switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. This industrial M12 switch supports an input voltage range from 24 – 56V DC with M23 power interface and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications. Designed and tested for transportation and telco applications.

EN50155 Compliant
This M12 switch supports an input voltage range from 24 – 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications.

Industrial Design
Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Power over Ethernet (PoE+)
Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC.

ON ORDER

SKU: TI-TPG80

Manufacturer: Trendnet Trendnet

RRP Price €678.03

Specifications

Management features

Switch type
Managed

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes

Data transmission

Switching capacity
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table
11000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
64 MB

Security

MAC address filtering
Yes

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes

Performance

Mean time between failures (MTBF)
500000 h

Power

AC input voltage
100 - 240 V
DC input voltage
24 - 56 V
Input current
1 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
200 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
215 mm
Depth
170 mm
Height
53 mm
Weight
1.32 kg

Packaging content

Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE FCC IEC EN 60950-1 Shock EN 60068-2-27 Freefall EN 60068-2-32 Vibration EN 60068-2-6 RailRoad EN 50155 / EN 50121-3 RailRoad EN 50155 / EN 50121-4

Logistics data

Harmonized System (HS) code
85176990
