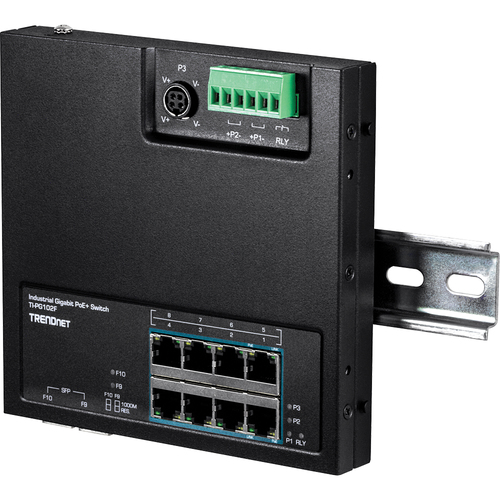

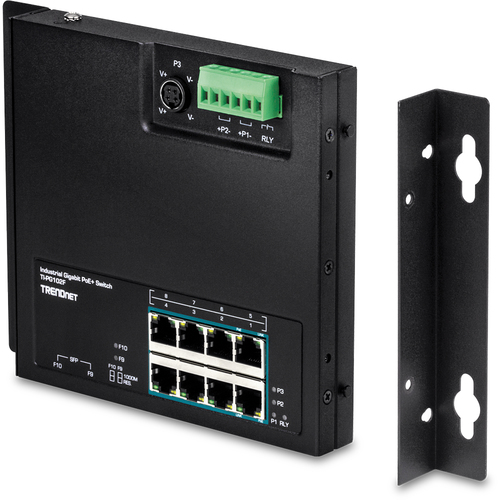

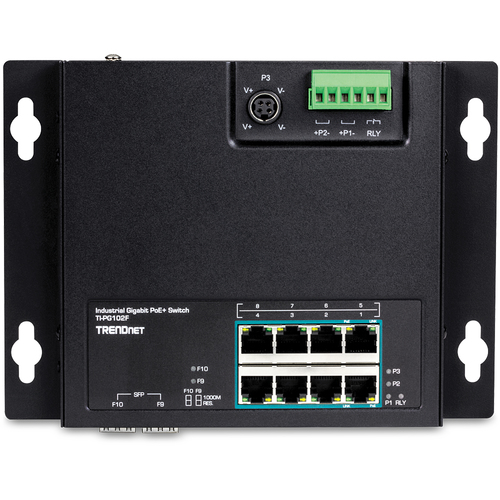

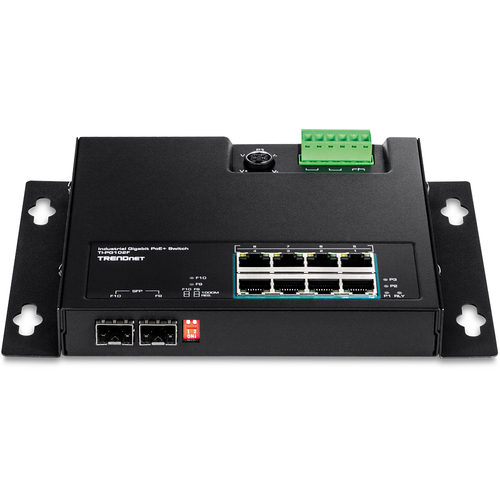

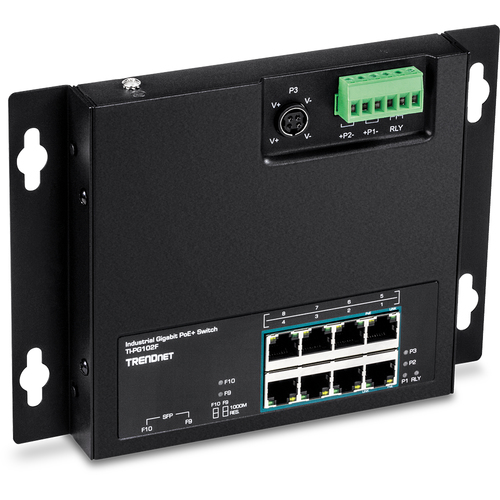

Trendnet TI-PG102F network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

ON ORDER

SKU: TI-PG102F

Manufacturer: Trendnet Trendnet

RRP Price €345.97

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
11000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
0.25 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
459123 h

Power

Redundant power supply (RPS) support
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
48 - 56 V
Input current
2 A
Power consumption (max)
160 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
150 mm
Depth
145 mm
Height
23 mm
Weight
635 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5

Logistics data

Harmonized System (HS) code
85176990
