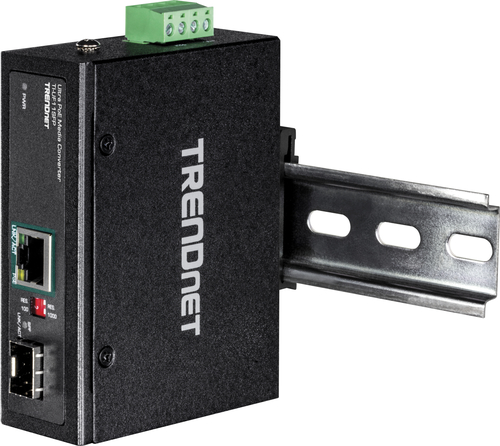

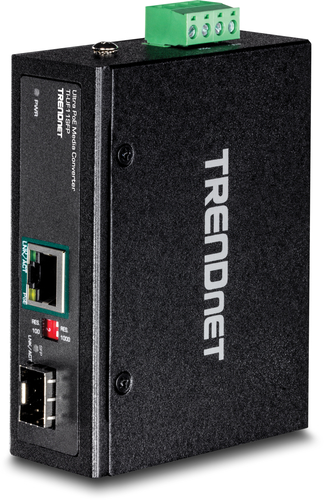

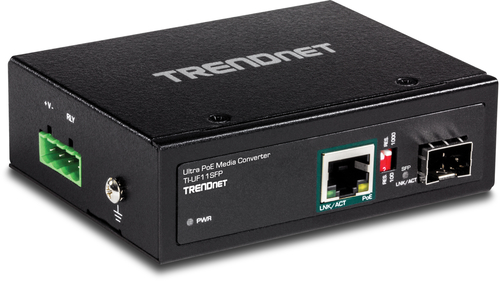

Trendnet TI-UF11SFP network media converter Internal 1000 Mbit/s Black

TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.
UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.
Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range.

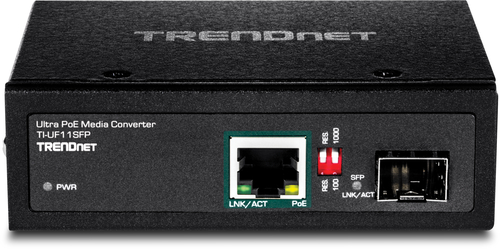

Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot

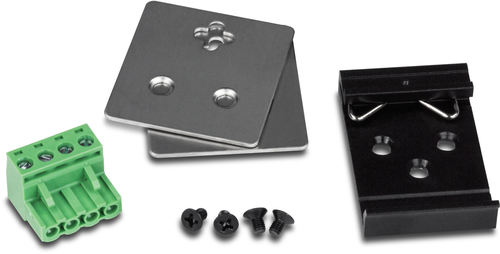

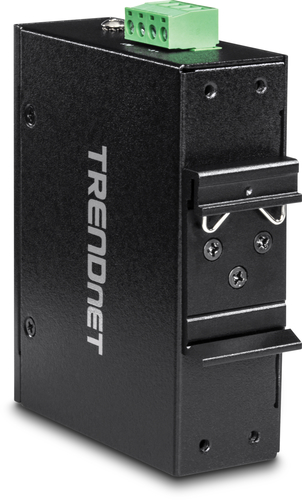

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.
Switching Capacity
2Gbps switching capacity.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance.
Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F).
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards.
Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).

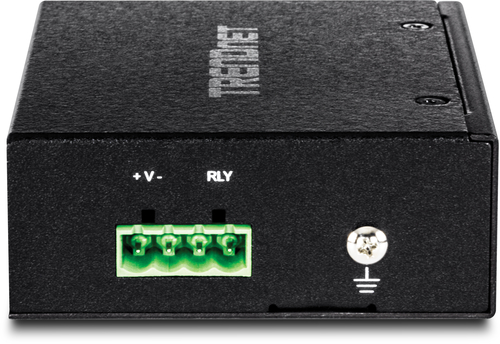

Grounding
Grounding point protects equipment from external electrical surges.

ON ORDER

SKU: TI-UF11SFP

Manufacturer: Trendnet Trendnet

RRP Price €128.93

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10 Mbit/s
Jumbo frames support
Yes
Jumbo frames
9
Auto-negotiation
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
4000 m
Buffer size
1000 KB
Mean time between failures (MTBF)
510.304 h

Features

Internal
Yes
LED indicators
Yes
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Fiber optic connector
SFP
Power over Ethernet (PoE) ports quantity
1
DC-in jack
Yes

Power

Input voltage
48 - 56 V
Power consumption (max)
72 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
60 W

Weight & dimensions

Width
103.5 mm
Depth
81.5 mm
Height
32 mm
Weight
153 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Packaging content

Quick installation guide
Yes

Certificates

Certification
FCC, CE, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), EN60950-1 (LVD)

Logistics data

Harmonized System (HS) code
85176990
