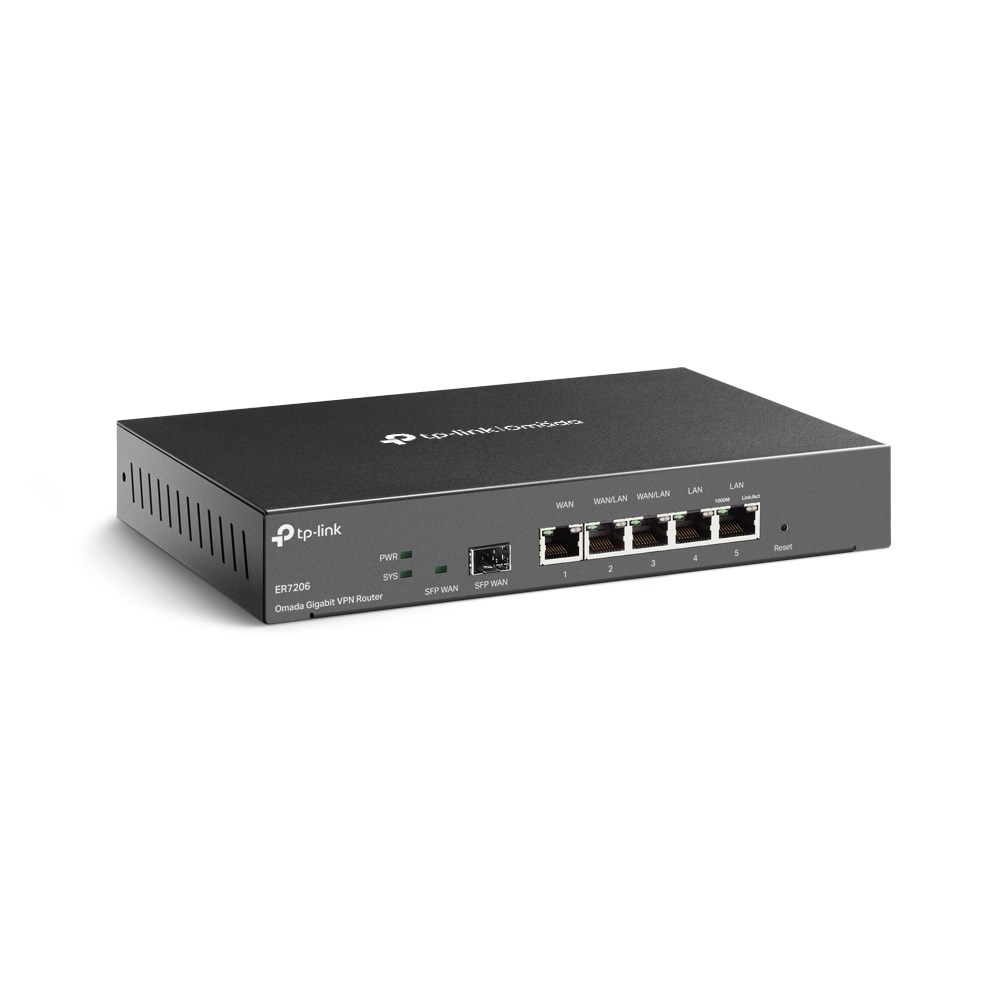

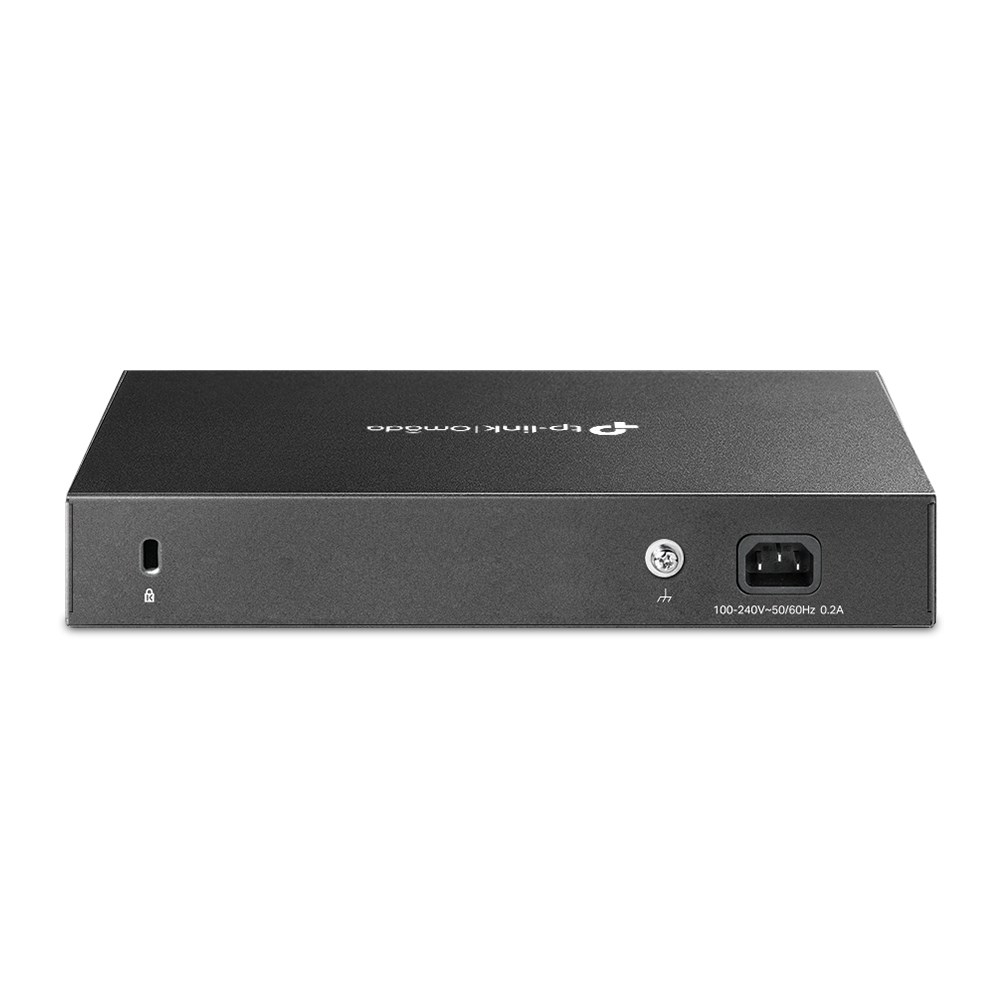

TP-Link SafeStream Gigabit Multi-WAN VPN Router

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Highly Secure VPN
ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

18 IN STOCK

SKU: TL-ER7206

Manufacturer: TP-Link TP-Link

RRP Price €161.95

Specifications

WAN connection

Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
SFP WAN
Yes

Network

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Static route
Yes
VLAN support
Yes
Policy-based routing
Yes

Management features

Web-based management
Yes
Universal Plug and Play (UPnP)
Yes
Reset button
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Protocols

DMZ support
Yes
DHCP server
Yes
Supported network protocols
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Security

Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Firewall
Yes
Firewall security
SPI
URL filtering
Yes
ARP attack prevention
Yes
Access Control List (ACL)
Yes
System event log
Yes
VPN support
IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN

Packaging content

Cables included
AC
Quick installation guide
Yes

Features

Flash memory
132 MB
Internal memory
512 MB
Internal memory type
DRAM
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Certification
CE, FCC, RoHS

Design

Product colour
Black
LED indicators
Activity, Link, Power, System, WAN

Power

Power source type
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
226 mm
Depth
131 mm
Height
35 mm

Packaging data

Package width
226 mm
Package depth
288 mm
Package height
72 mm
Package weight
1.32 kg

Logistics data

Harmonized System (HS) code
85176990
