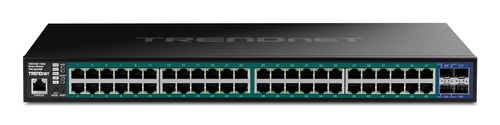

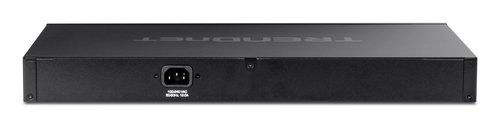

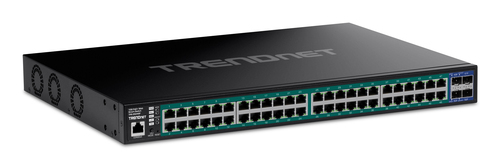

Trendnet TPE-3524SF network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase TPE-3524SF bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and
prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from manin-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ portsports to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TPE-3524SF

Manufacturer: Trendnet Trendnet

RRP Price €799.98

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Console port
RJ-45

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
Half duplex
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
176 Gbit/s
Forwarding rate
130.95 Mpps
MAC address table
32000 entries
Jumbo frames support
Yes
Jumbo frames
9000

Security

DHCP features
DHCP snooping
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Number of fans
3 fan(s)

Performance

Noise level
42.7 dB
Mean time between failures (MTBF)
70599 h

Power

AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
52 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
740 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Weight & dimensions

Width
440 mm
Depth
310 mm
Height
44 mm
Weight
4.72 kg

Certificates

Certification
CE FCC UL

Accessories

License
