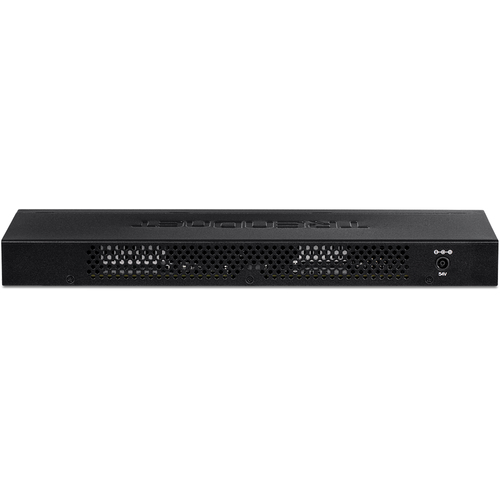

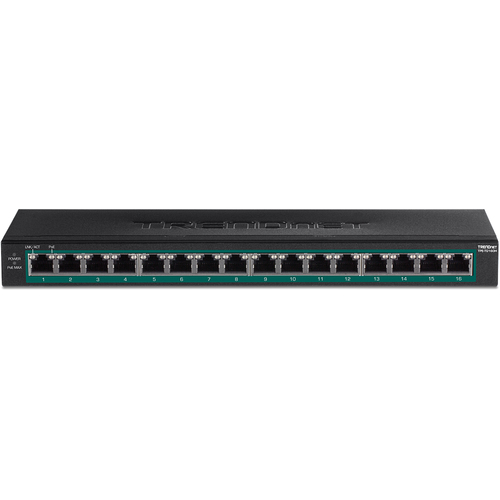

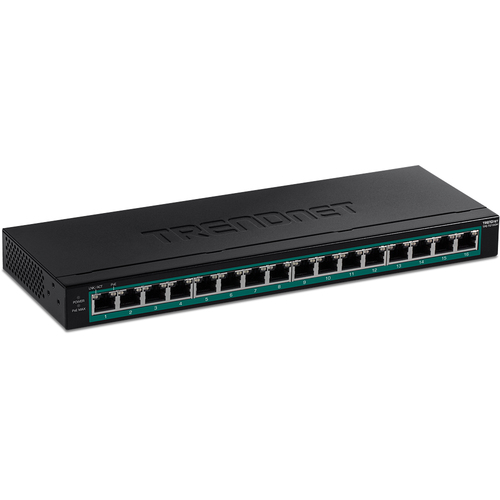

Trendnet TPE-TG160H network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

16-Port 10/100 Mbps PoE+ Switch

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. Connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's fanless PoE+ switches.

ON ORDER

SKU: TPE-TG160H

Manufacturer: Trendnet Trendnet

RRP Price €183.41

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes

Data transmission

Switching capacity
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
10000

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes

Performance

Mean time between failures (MTBF)
988148 h

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
12.8 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
123 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
286 mm
Depth
102 mm
Height
27 mm
Weight
900 g

Packaging content

Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
