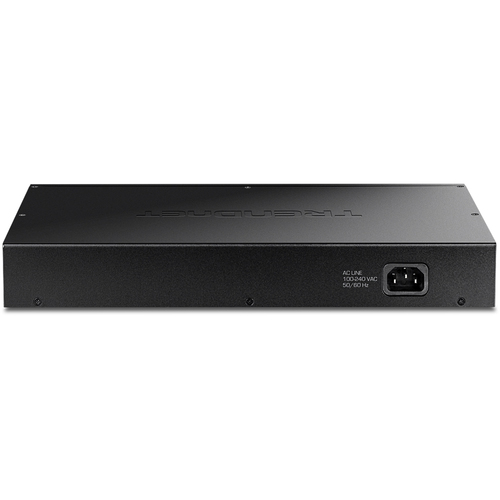

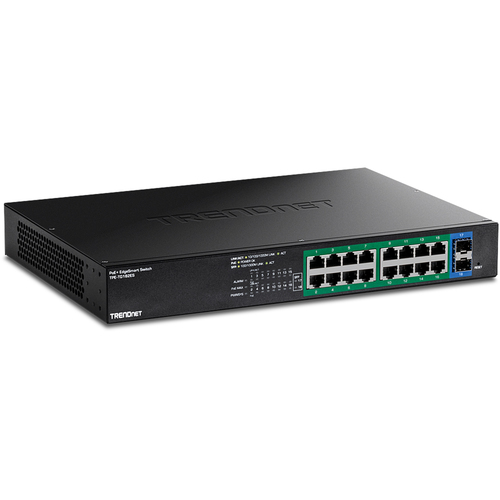

Trendnet TPE-TG182ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TPE-TG182ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TPE-TG182ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TPE-TG182ES
Price: 285.17 EUR
Availability: OutOfStock

TRENDnet’s 18-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG182ES, is a cost-effective rackmount PoE+ managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG182ES rackmount PoE+ managed switch provides 16 gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance connectivity.

ON ORDER

SKU: TPE-TG182ES

Manufacturer: Trendnet

RRP Price €285.17

Specifications

Management features

Switch type

Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP module slots quantity

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Full duplex

Yes

Half duplex

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Virtual LAN features

Private VLAN, Tagged VLAN, Voice VLAN

Number of VLANs

4094

Data transmission

Switching capacity

36 Gbit/s

Forwarding rate

26.78 Mpps

MAC address table

8000 entries

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

0.5 MB

Security

IGMP snooping

Yes

Multicast features

Multicast support

Yes

Protocols

Management protocols

SNMP v1, v2c

Design

Rack mounting

Yes

Product colour

Black

Number of fans

1 fan(s)

Performance

Noise level

47 dB

Mean time between failures (MTBF)

609351 h

Power

Power source

AC/PoE

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

2.6 A

Power consumption (max)

248.18 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

328 mm

Depth

228 mm

Height

44 mm

Weight

2.58 kg

Certificates

Certification

CE FCC ETL

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.58 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
