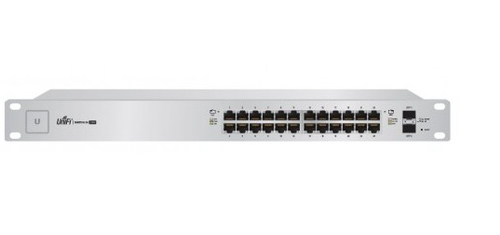

Ubiquiti UniFi US-24-500W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Powerful Enterprise Switch Models
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).

Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support
The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.

ON ORDER

SKU: US-24-500W

Manufacturer: Ubiquiti Ubiquiti

RRP Price €690.61

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Console port
RJ-45

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
No
Flow control support
Yes

Data transmission

Switching capacity
52 Gbit/s
Throughput
38.69 Mpps

Design

Rack mounting
Yes
Form factor
1U
Product colour
Silver
Reset button
Yes
LED indicators
Yes

Performance

Noise level
53 dB

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
500 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
34.2 W

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
485 mm
Depth
285.6 mm
Height
44.5 mm
Weight
3.7 kg

Packaging content

Cables included
AC

Certificates

Certification
CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
