Mikrotik cAP ax 1774 Mbit/s White Power over Ethernet (PoE)

When it comes to wireless network in the office, you can’t afford to cut corners and risk inhibiting your team’s performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax!

Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets – all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles.

There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing-fast wireless connection!

With the Generation6 802.11ax wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!

cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market – RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!

Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3- EAP, and 802.11r roaming.

cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.

30 IN STOCK

SKU: cAPGi-5HaxD2HaxD&EG12-EA

Manufacturer: Mikrotik Mikrotik

RRP Price €227.46

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)

Security

Security algorithms
WPA3-EAP, WPA3-PSK

Ports & interfaces

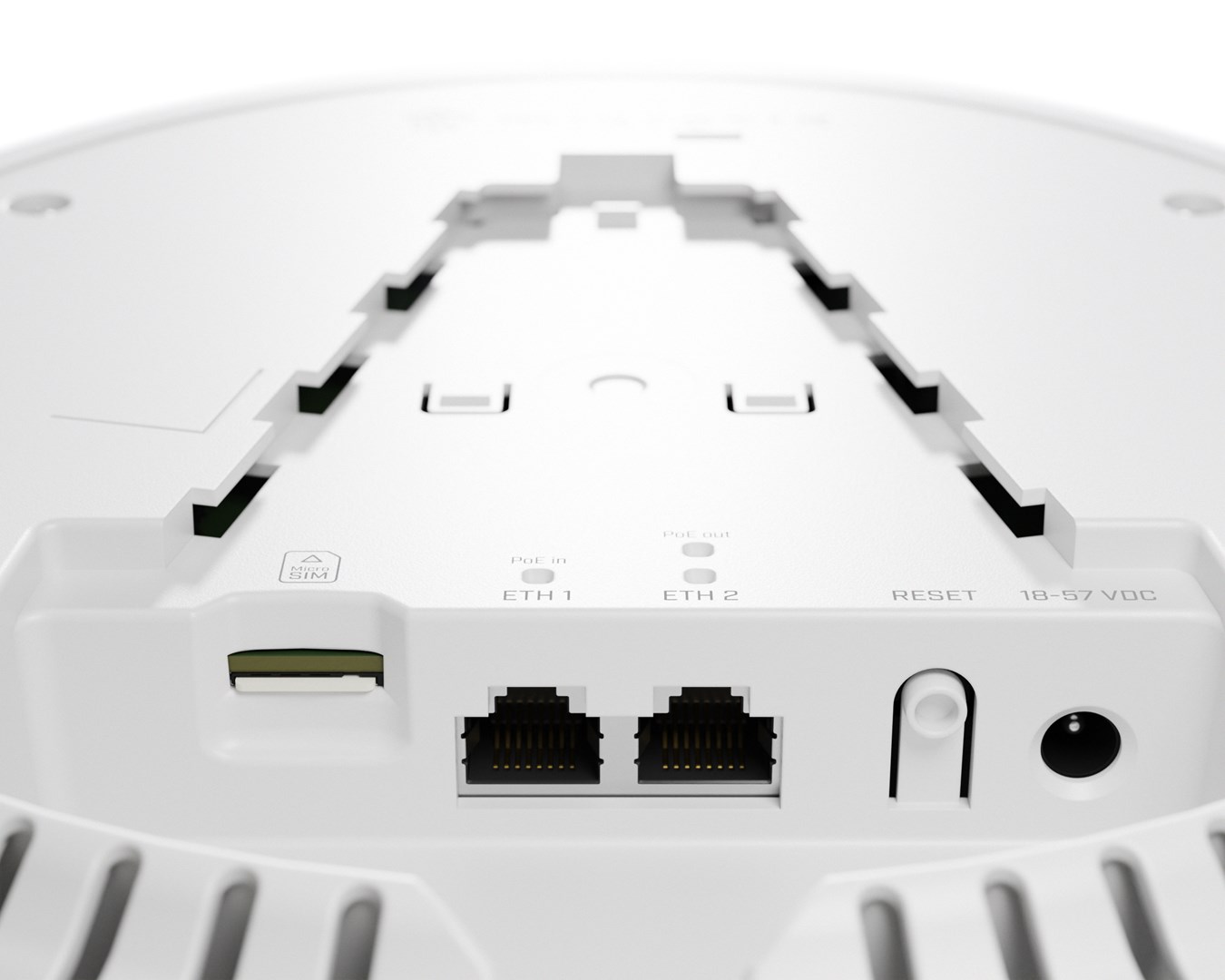

Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Passive PoE
DC voltage range
18 - 57 V
Output current
0.4 A
Power consumption (max)
28.2 W

Design

Placement
Ceiling
Product colour
White
International Protection (IP) code
IP20

Antenna

Antenna type
Internal

Performance

Built-in processor
Yes
Processor model
IPQ-6010
Internal memory
128 MB
Operating system installed
RouterOS

Certificates

Certification
CE, FCC, IC, EAC, ROHS

Weight & dimensions

Width
228 mm
Depth
228 mm
Height
48 mm

Packaging content

Quantity per pack
1 pc(s)

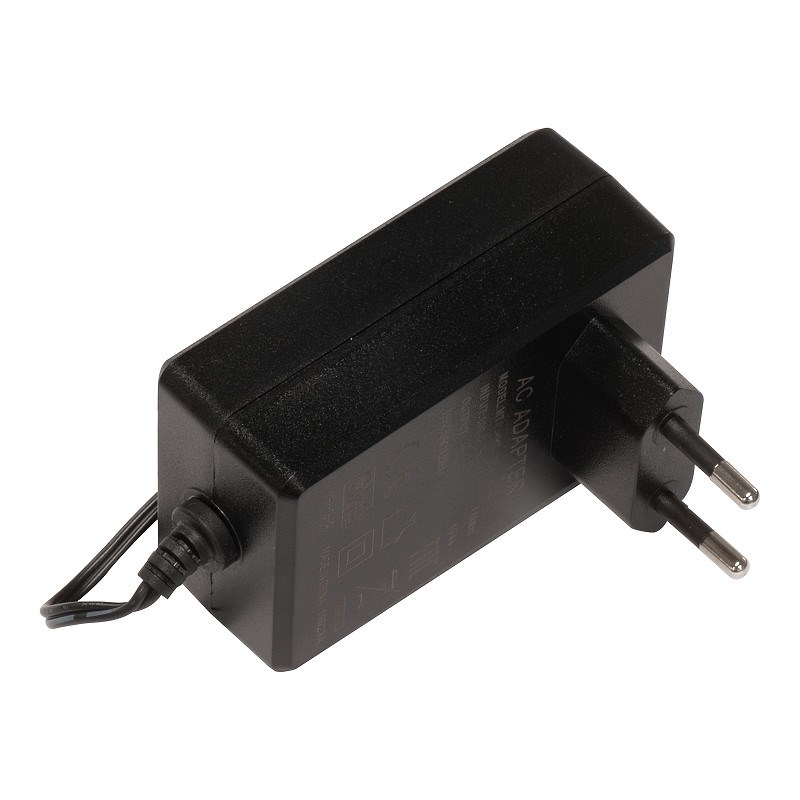

AC adapter included
Yes

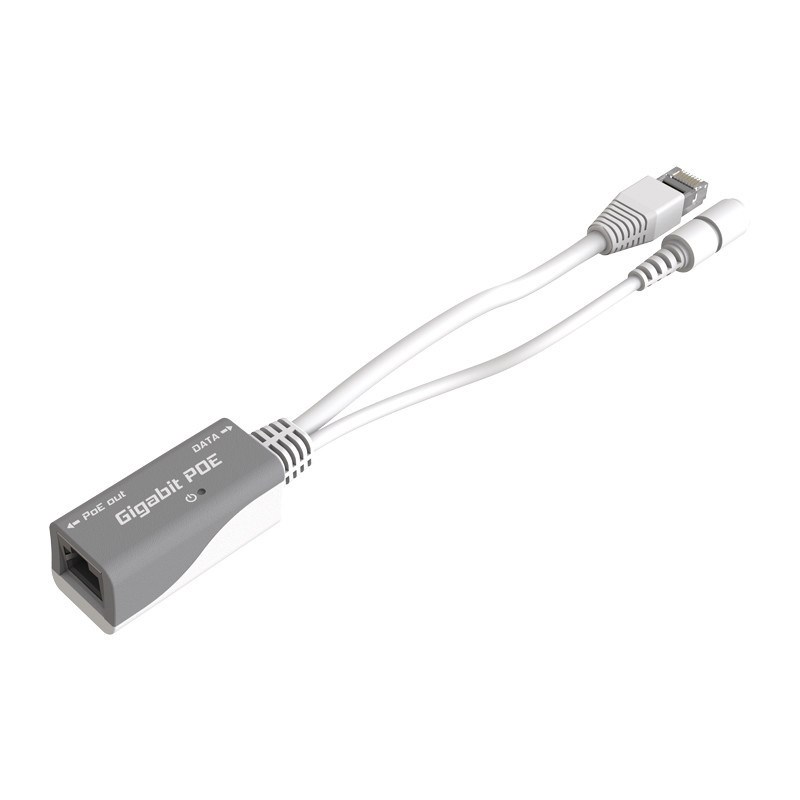

PoE adapter included
Yes

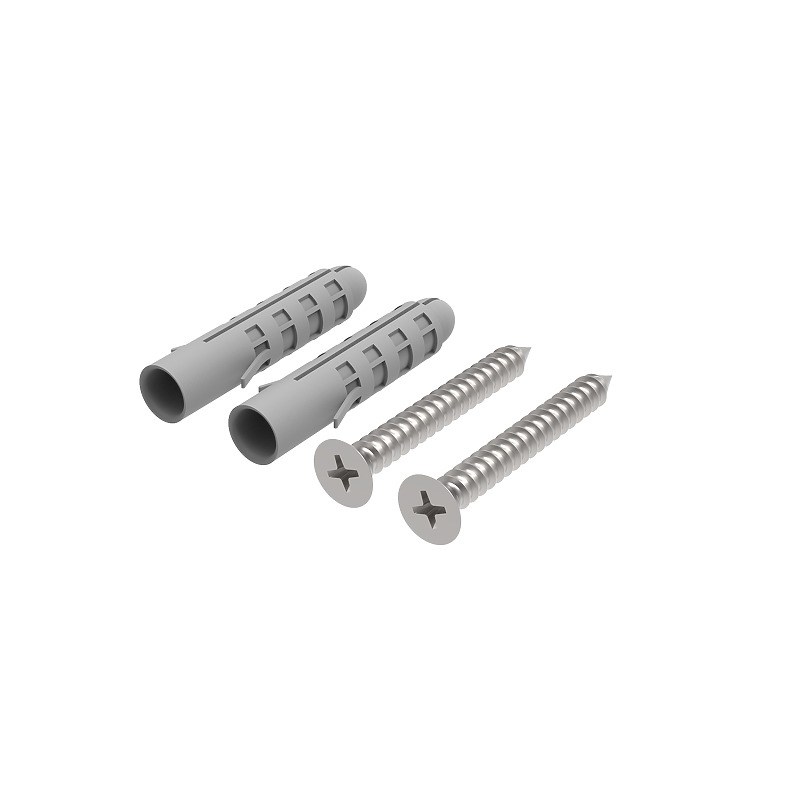

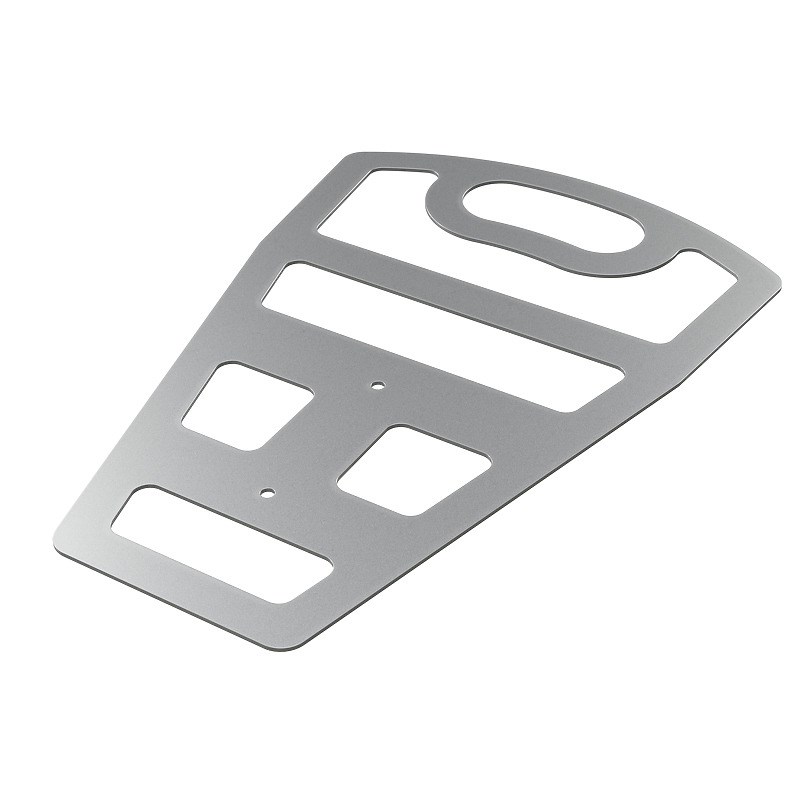

Mounting kit
Yes

Operational conditions

Operating temperature (T-T)
-40 - 70 °C
