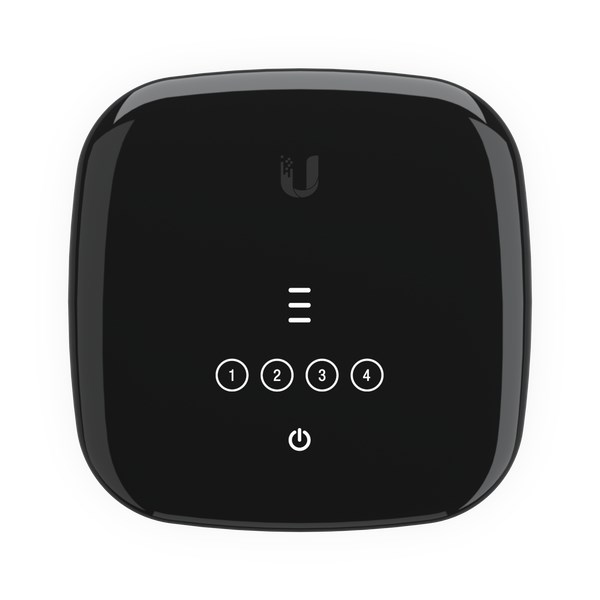

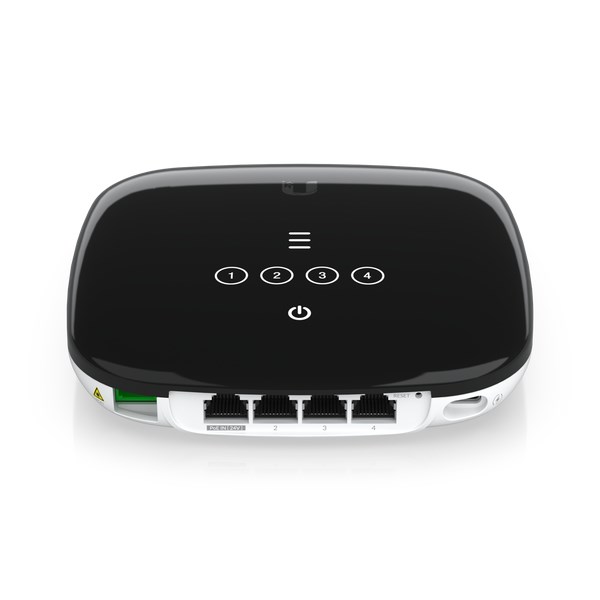

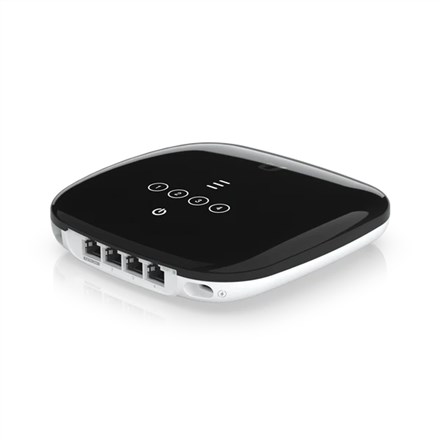

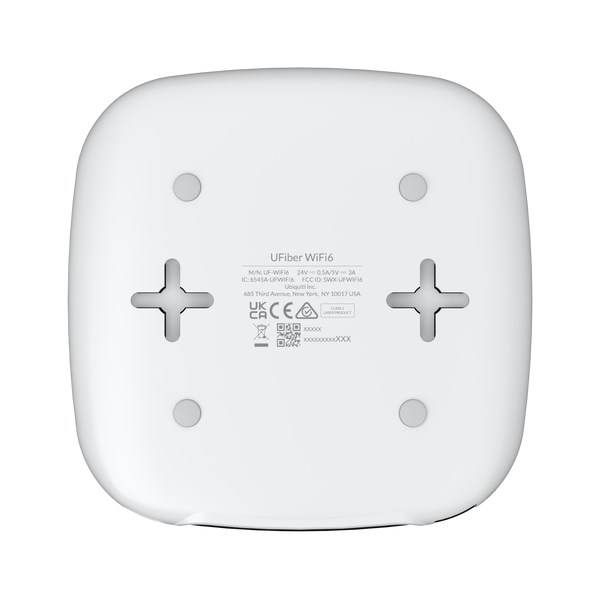

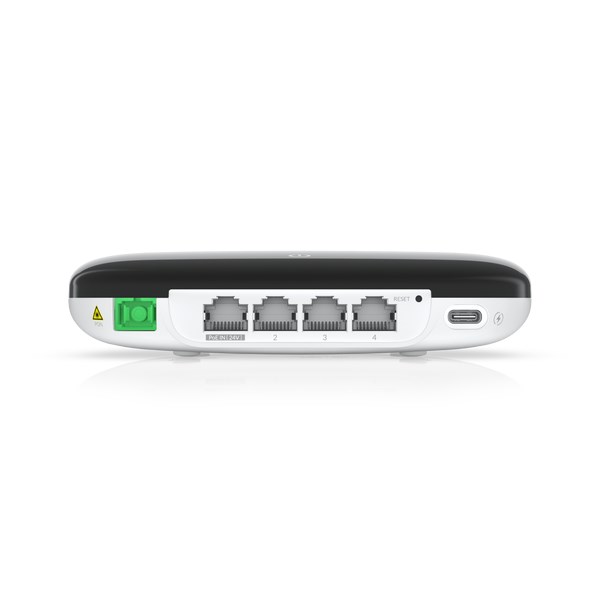

Ubiquiti UFiber WiFi6 GPON CPE Optical network unit (ONU)

High-performance WiFi 6 GPON CPE.
The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.

16 IN STOCK

SKU: UF-WIFI6

Manufacturer: Ubiquiti Ubiquiti

RRP Price €122.19

Specifications

Design

Product type
Optical network unit (ONU)
Product colour
Black
LED indicators
LAN, Power

Network

Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
ITU standards
G.984
Ethernet LAN data rates
1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Switch layer
L2+/L3
Upstream data rate
2488 Mbit/s
Downstream data rate
1244 Mbit/s
Transmission distance (max)
20 km
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1490 nm
VLAN support
Yes

Wireless LAN features

Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type
Internal
Antenna gain level (max)
3 dBi

Management features

Reset button
Yes

Security

Security algorithms
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

Fiber ports quantity
1
Fiber optic connector
SC
Ethernet LAN (RJ-45) ports
4
USB ports quantity
1
DC-in jack
Yes

Power

Output voltage
5 V
Output current
3 A
Power consumption (max)
11 W

Certificates

Compliance certificates
CE

Operational conditions

Operating temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
141.5 mm
Depth
140.8 mm
Height
31.6 mm
Weight
415 g

Packaging content

AC adapter included
Yes
Quantity per pack
1 pc(s)

Accessories

License
