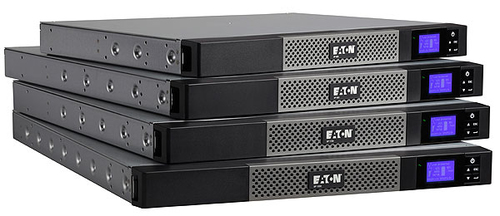

Eaton 5P1150iR uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 770 W 6 AC outlet(s)

Eaton 5P1150iR uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 770 W 6 AC outlet(s)

Name: Eaton 5P1150iR uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 770 W 6 AC outlet(s)
Brand: Eaton
SKU: 5P1150IR
Price: 934.93 EUR
Availability: OutOfStock

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.

ON ORDER

SKU: 5P1150IR

Manufacturer: Eaton Eaton

RRP Price €934.93

Specifications

Features

UPS topology

Line-Interactive

Output power capacity

1.15 kVA

Output power

770 W

Waveform

Pure sine

Input operation voltage (min)

150 V

Input operation voltage (max)

294 V

Input frequency

40/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Number of input phases

Number of output phases

Efficiency

98%

ECO mode

Noise level

40 dB

Ports & interfaces

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

6 AC outlet(s)

USB port

Yes

USB 2.0 ports quantity

RS-232 ports

Battery

Battery technology

Sealed Lead Acid (VRLA)

Typical backup time at half load

12 min

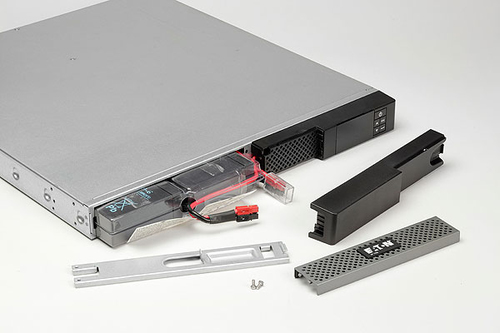

Hot-swap battery

Yes

Automatic battery test

Yes

Design

Form factor

Rackmount

Rack capacity

Product colour

Black

Display type

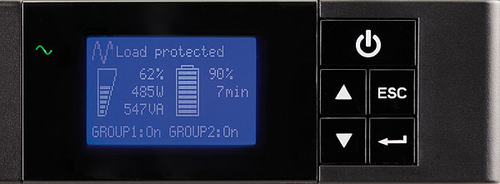

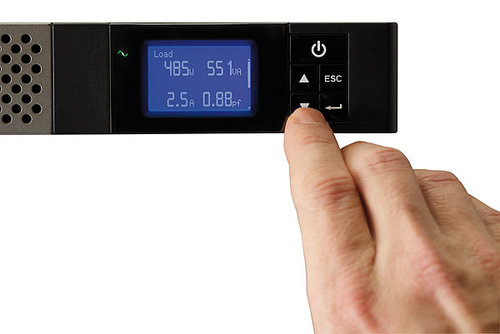

LCD

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Certificates

Certification

IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)

Packaging content

Rack mount kit

Yes

Safety regulation & standards

Safety

EN 62040-1, UL 1778

Weight & dimensions

Width

438 mm

Depth

509 mm

Height

43.2 mm

Weight

14.6 kg

Packaging data

Management card included

Bundled software

Intelligent Power Software suite

Logistics data

Harmonized System (HS) code

85078000

Other features

Input connection type

IEC C14

Mac compatibility

Nominal output voltage

230 V

Nominal input voltage

230 V

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

14.6 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

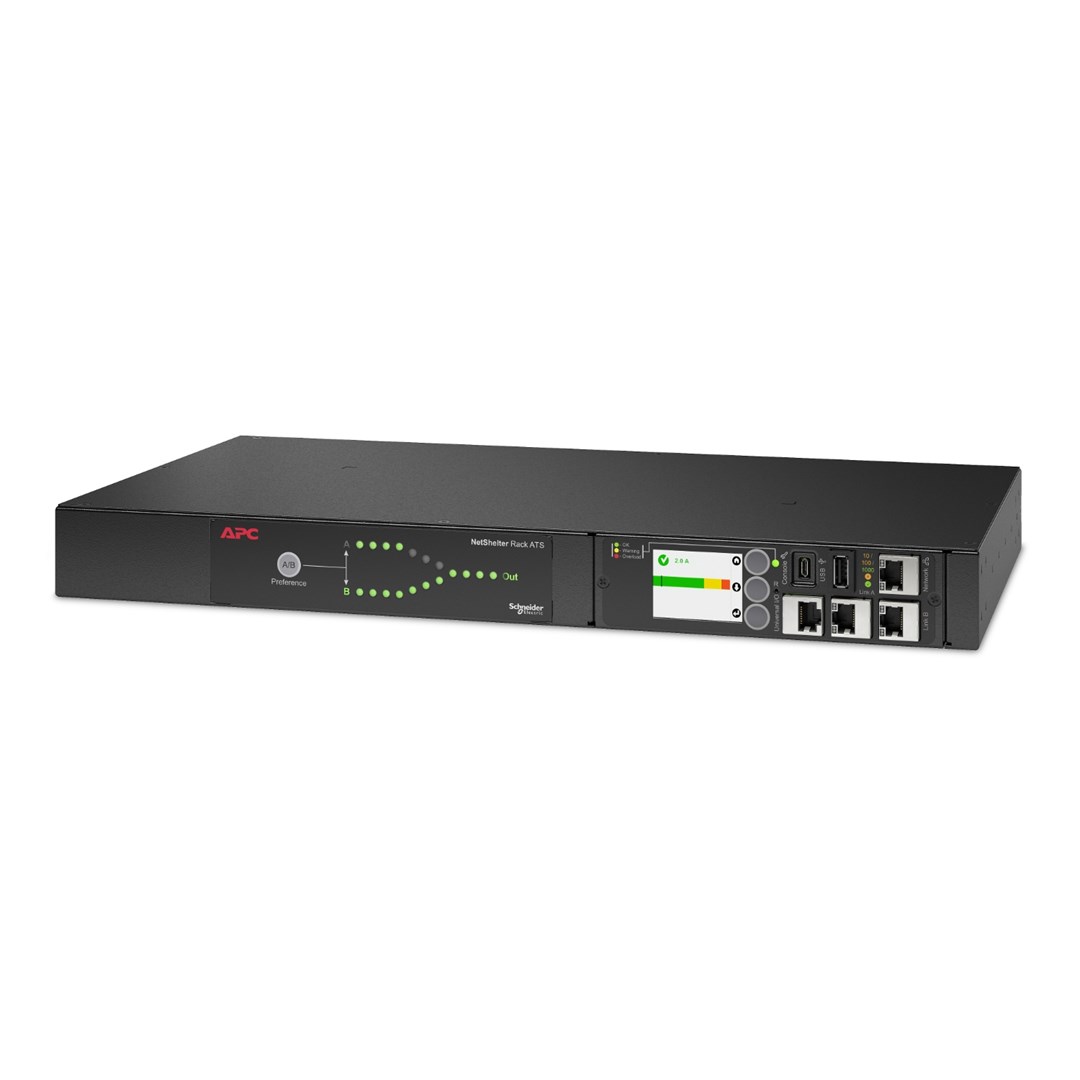

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz UPS
