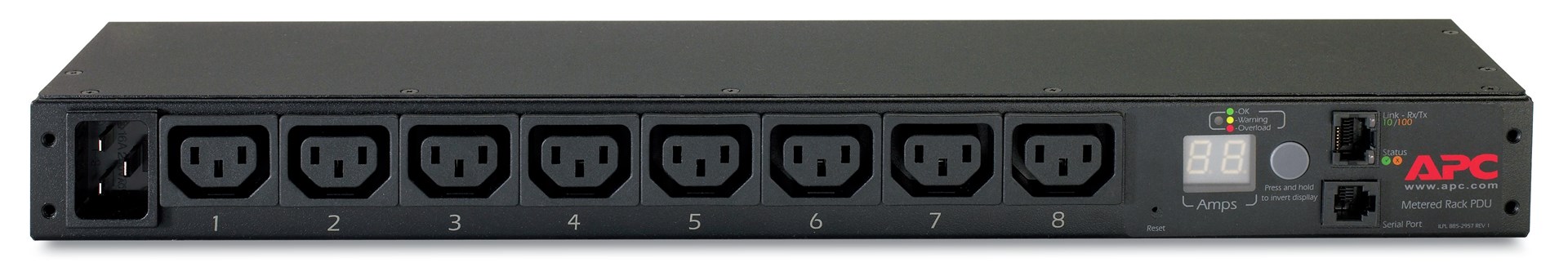

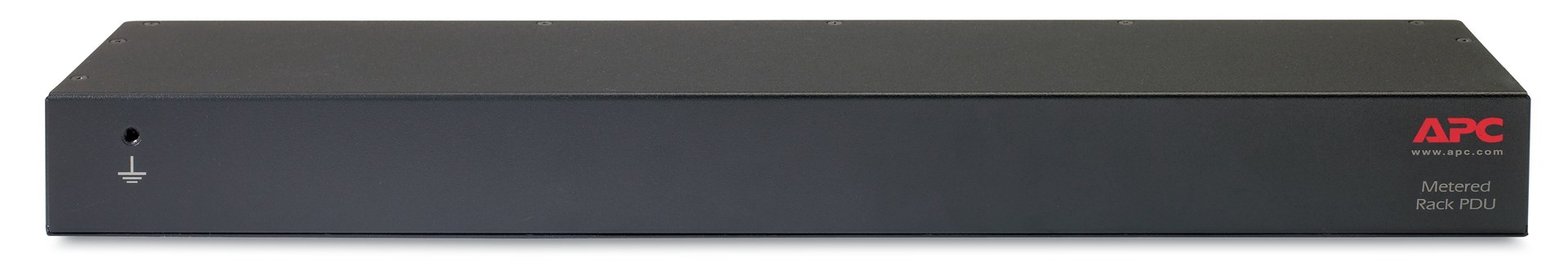

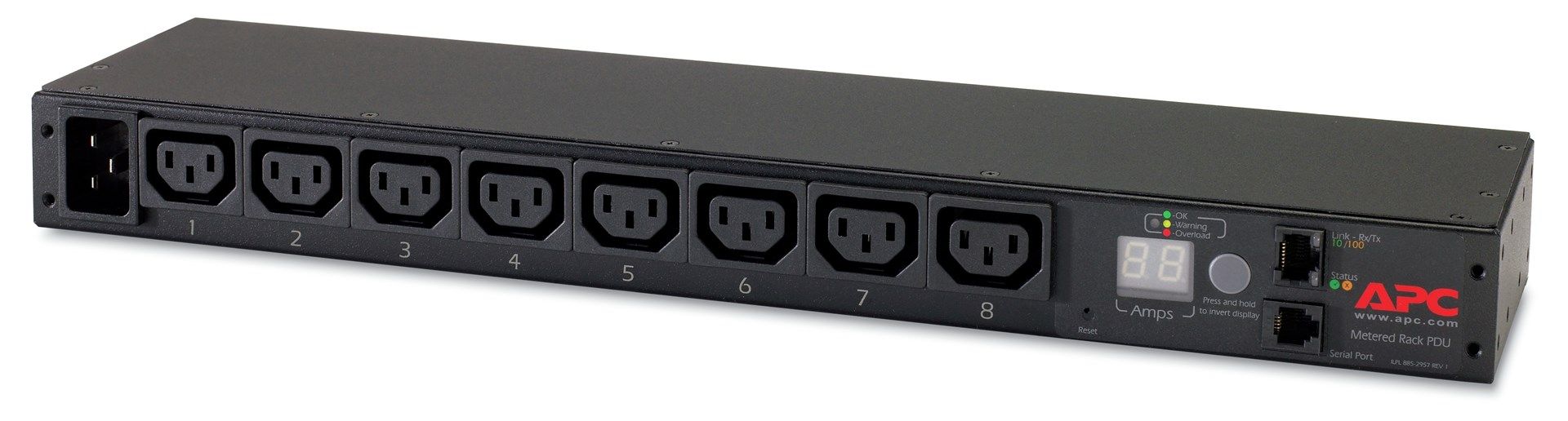

APC AP7821B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

APC AP7821B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Name: APC AP7821B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Brand: APC
SKU: AP7821B
Price: 799.71 EUR
Availability: InStock

Marketing Features

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely.

Availability

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Agility

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

17 IN STOCK

SKU: AP7821B

Manufacturer: APC APC

RRP Price €799.71

Specifications

Design

PDU types

Metered

Rack capacity

0U/1U

Mounting

Horizontal/Vertical

Product colour

Black

Ports & interfaces

AC outlets quantity

8 AC outlet(s)

Power plug

C20 coupler

AC outlet types

C13 coupler

Input connection type

IEC-320 C20

Features

LED indicators

Yes

Management features

Monitoring

Current, Power, Voltage

Power

Nominal input voltage

200-230 V

AC input frequency

50 - 60 Hz

Maximum current

20 A

Output voltage

230 V

Load capacity

3680 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

3680 W

Certificates

Compliance certificates

RoHS

Certification

cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

444 mm

Depth

102 mm

Height

44 mm

Weight

1.74 kg

Packaging content

Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual

Packaging data

Package weight

2.92 kg

Package width

470 mm

Package depth

337 mm

Package height

64 mm

Description

Manufacturer

APC

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

1.74 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

PB8TUD UPS

€42.98

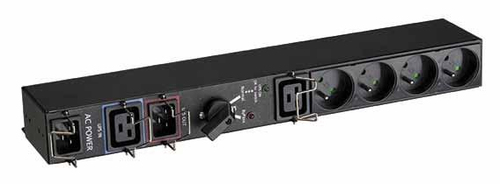

Eaton MBP3KIF UPS accessory UPS

Power distributionThe no hassle solution for improving availability and adding flexibility for single phase UPSs.Eaton HotSwap MBP- High availability for all UPSs up to 11 kVA.- HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.- HotSwap MBP are available with multiple power ratings: 3000 VA, 6000 VA, 11000 VA, 11000 VA (3 ph nput).- HotSwap MBP provides compatibility with any UPS now and in the future from Eaton or any other supplier- The HotSwap MBP 3000 VA is available with different output connectors: French, Schuko, British, IEC or erminal blocks (Hard-Wired version).- When used with a 9PX or 9SX the HotSwap MBP 6000 VA and above are providing information on the ypass status through the UPS LCD screen.- HotSwap MBP units can be installed as required; at the back, side, top of the UPSs, or rack-mounted.

€181.87

VW00I UPS

€2,125.60

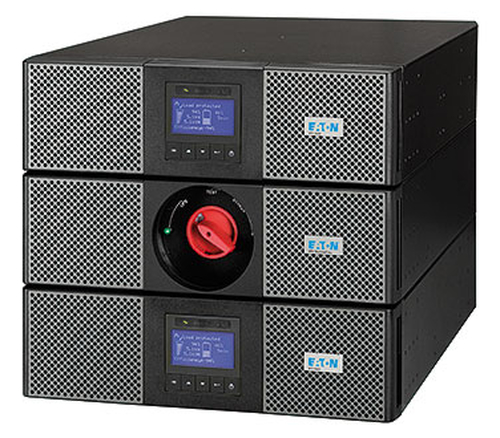

Eaton 9PXM22KiRTN uninterruptible power supply (UPS) Double-conversion (Online) 22 kVA 20000 W 1 AC outlet(s) UPS

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

€14,918.71

Eaton 5SC750i uninterruptible power supply (UPS) 0.75 kVA 525 W 6 AC outlet(s) UPS

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.

€300.57

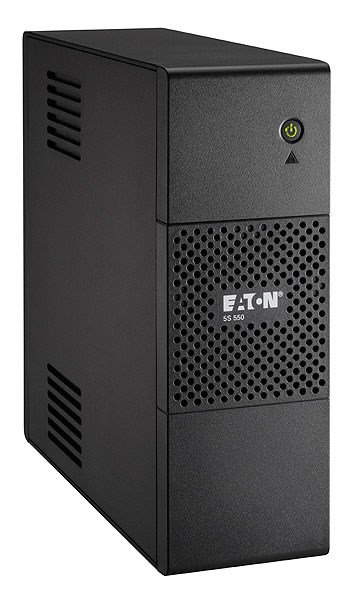

Eaton 5S 550i uninterruptible power supply (UPS) 0.55 kVA 330 W 4 AC outlet(s) UPS

The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.

€104.64

VW00D UPS

€1,065.99

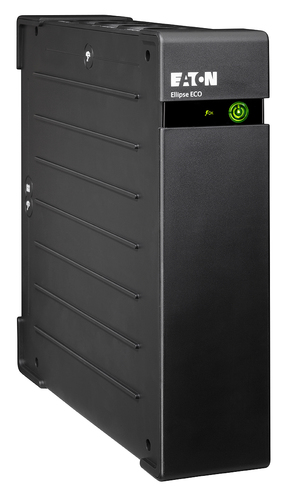

Eaton Ellipse ECO 1200 USB DIN uninterruptible power supply (UPS) Standby (Offline) 1.2 kVA 750 W 8 AC outlet(s) UPS
