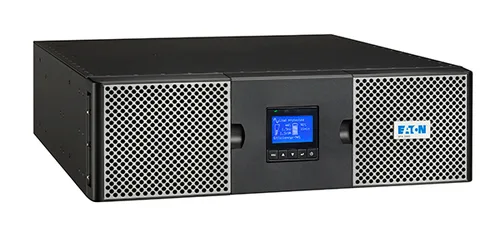

Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)

Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)

Name: Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)
Brand: Eaton
SKU: 9PX3000IRTM
Price: 4905.65 EUR
Availability: OutOfStock

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.

ON ORDER

SKU: 9PX3000IRTM

Manufacturer: Eaton Eaton

RRP Price €4,905.65

Specifications

Features

UPS topology

Double-conversion (Online)

Output power capacity

3 kVA

Output power

3000 W

Waveform

Pure sine

Input operation voltage (min)

176 V

Input operation voltage (max)

276 V

Input frequency

40/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Number of input phases

Efficiency

0.94%

Power factor

Noise level

40 dB

Ports & interfaces

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

10 AC outlet(s)

USB port

Yes

USB 2.0 ports quantity

Serial interface

Yes

Serial interface type

RS-232

RS-232 ports

Battery

Battery technology

Sealed Lead Acid (VRLA)

Typical backup time at half load

9.5 min

Hot-swap battery

Yes

Automatic battery test

Yes

Design

Form factor

Rackmount/Tower

Rack capacity

Product colour

Black

Display type

LCD

LED indicators

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Certificates

Certification

IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Packaging content

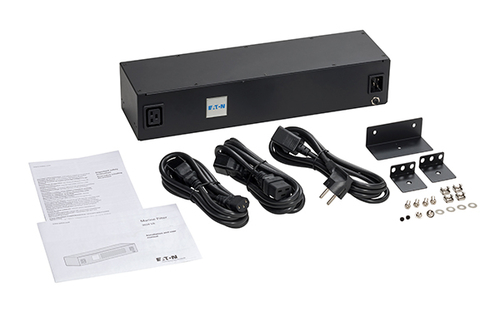

Rack mount kit

Yes

Safety regulation & standards

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

440 mm

Depth

485 mm

Height

130 mm

Weight

27.4 kg

Packaging data

Management card included

Bundled software

Intelligent Power Software suite

Logistics data

Harmonized System (HS) code

85078000

Other features

Nominal output voltage

230 V

Nominal input voltage

230 V

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

27.4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
