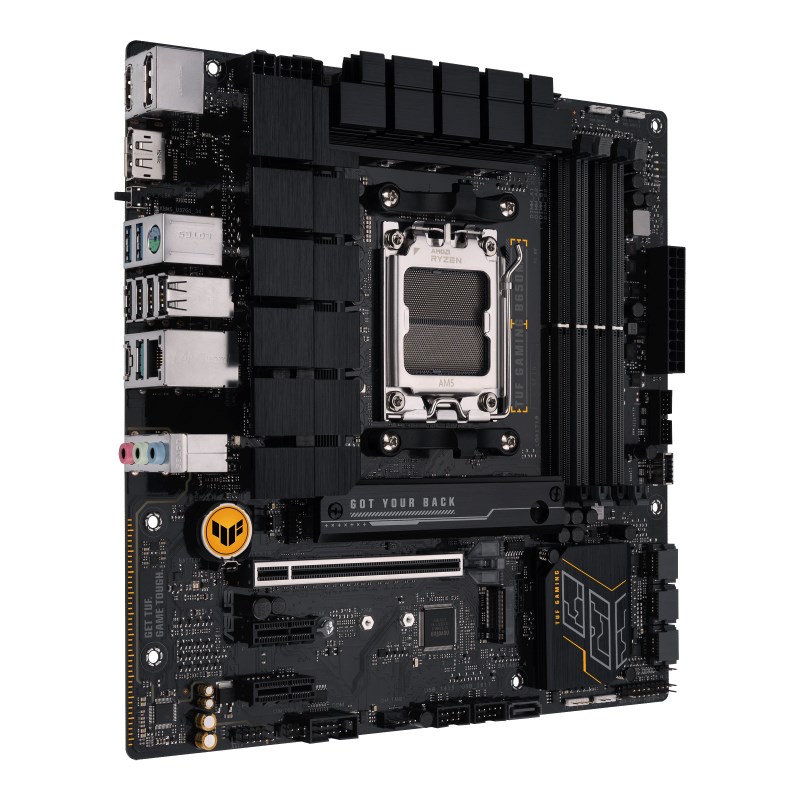

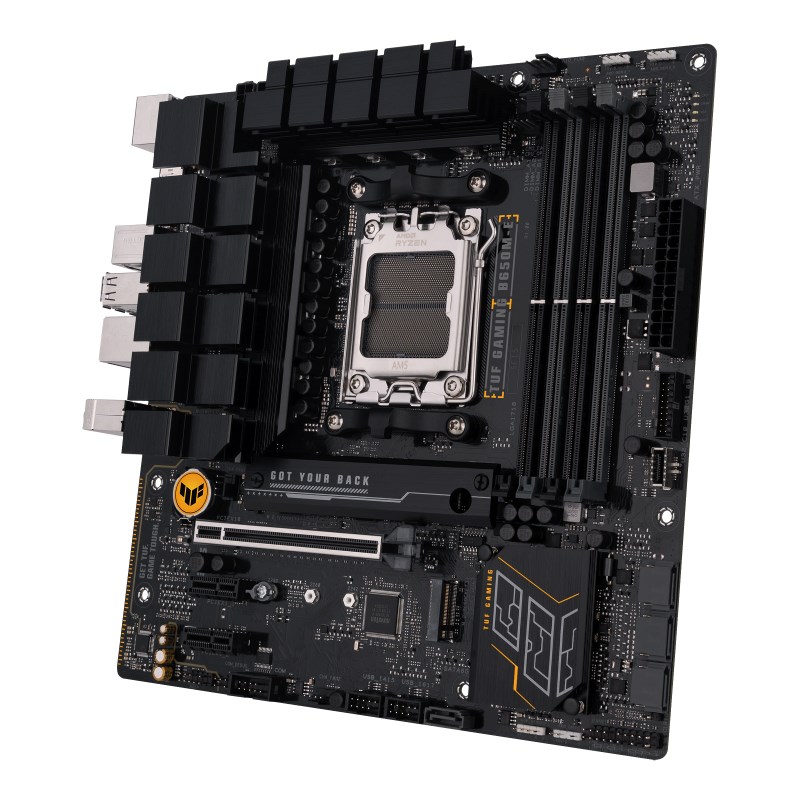

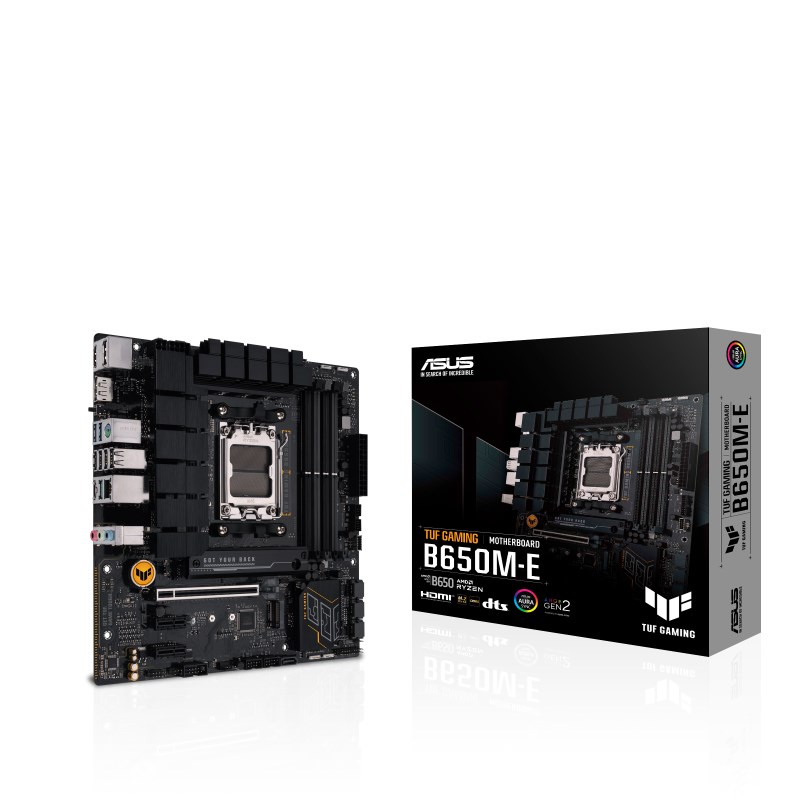

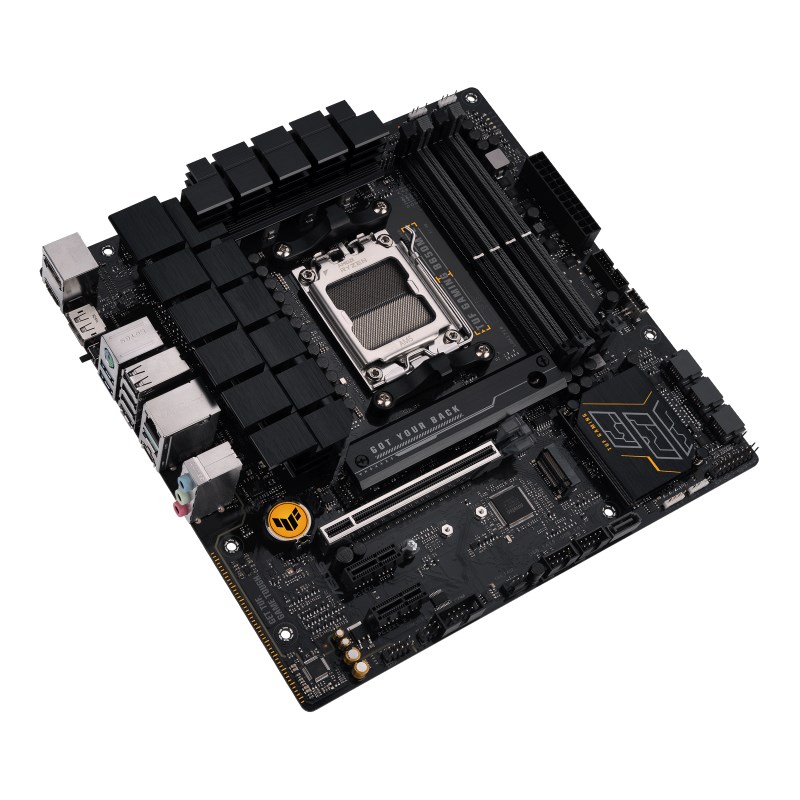

ASUS TUF GAMING B650M-E AMD B650 Socket AM5 micro ATX

TUF GAMING B650M-E
ASUS TUF GAMING B650M-E takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.

Teamed Power Stages
8+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

65 IN STOCK

SKU: 90MB1FU0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €208.47

Specifications

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10

Graphics

Parallel processing technology support
Not supported

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
8
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes
RGB LED pin header
Yes

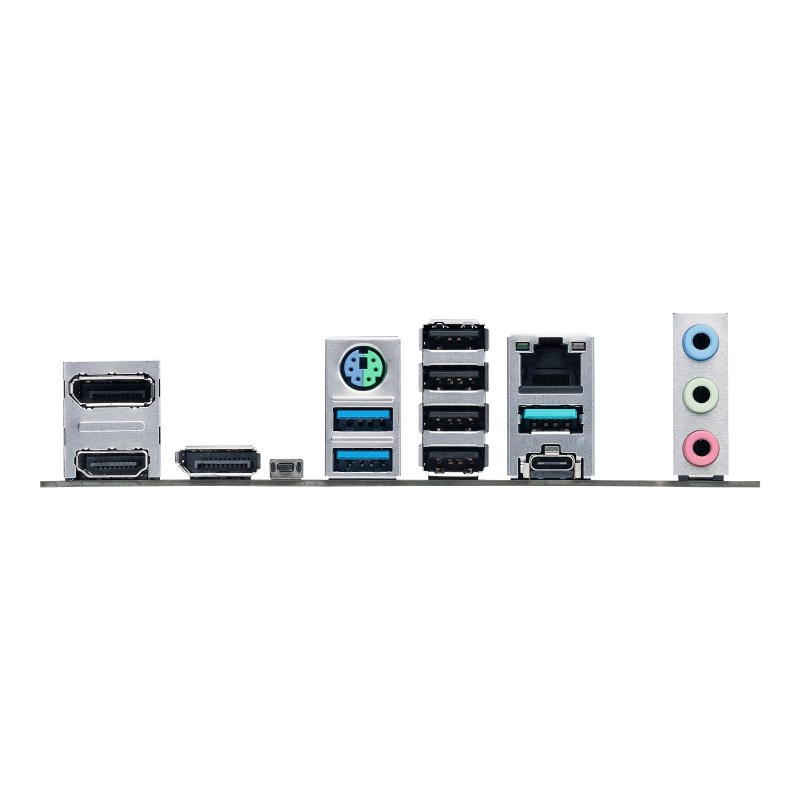

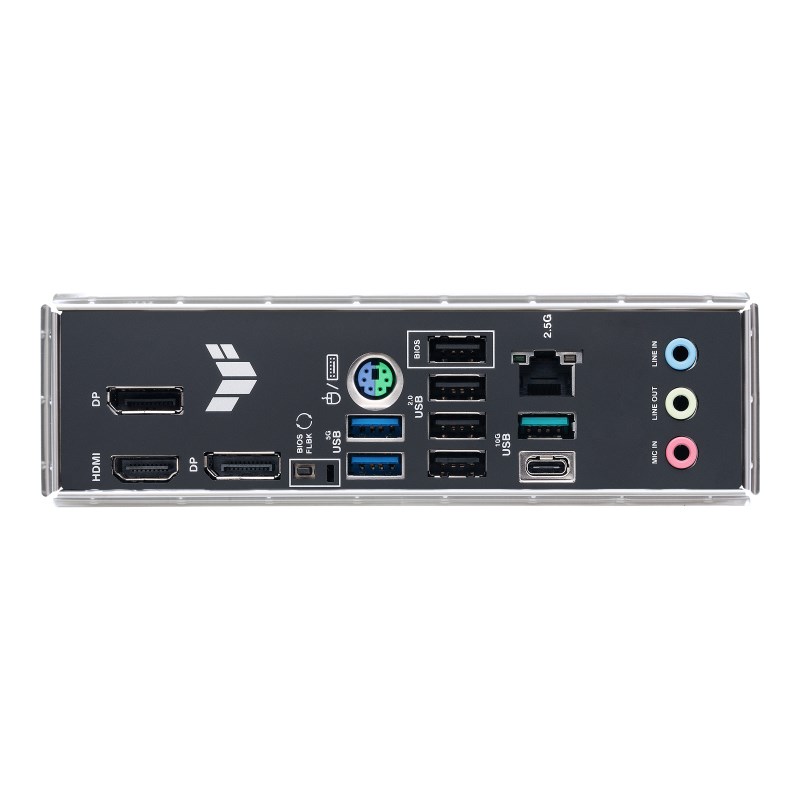

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
2
Headphone outputs
1
Line-in
Yes
Microphone in
Yes

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
No

Features

Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Packaging data

Package width
275 mm
Package depth
275 mm
Package height
67.4 mm
Package weight
1.61 kg

Weight & dimensions

Width
244 mm
Depth
244 mm

Packaging content

Cables included
SATA

Accessories

License
