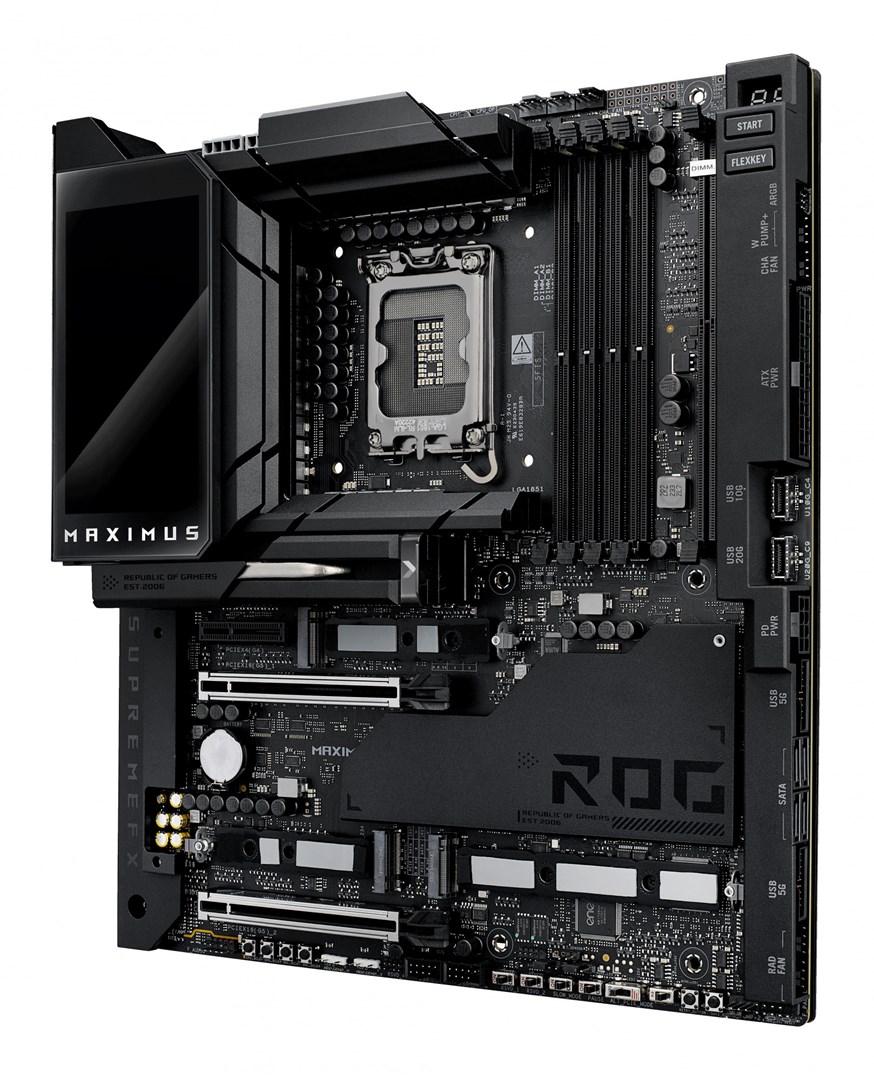

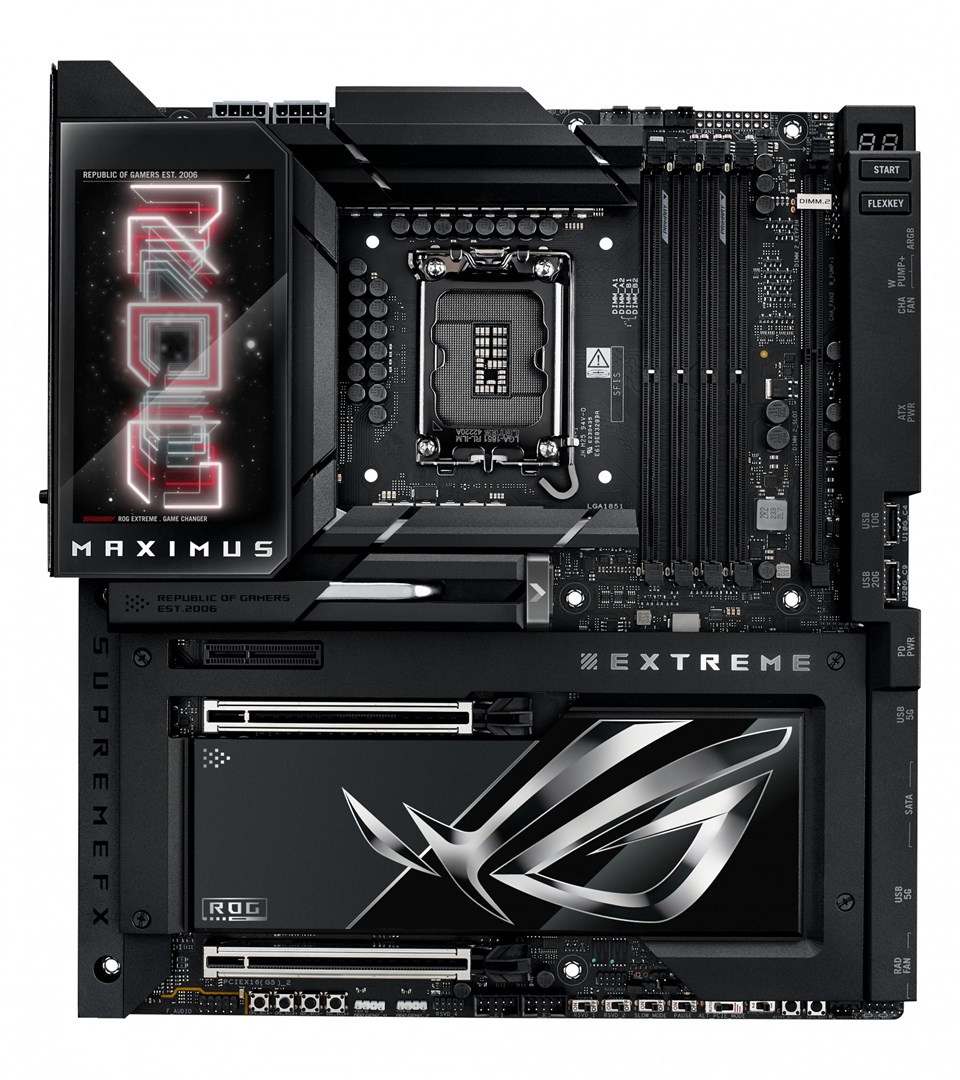

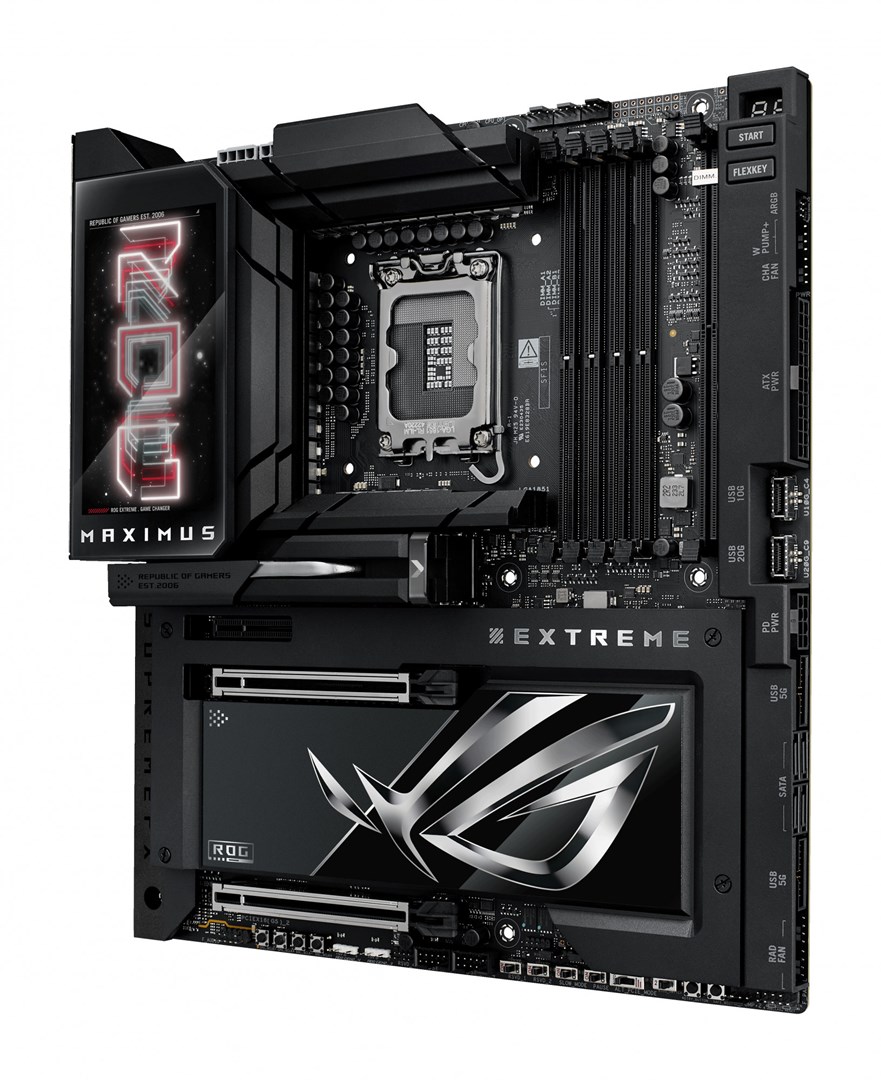

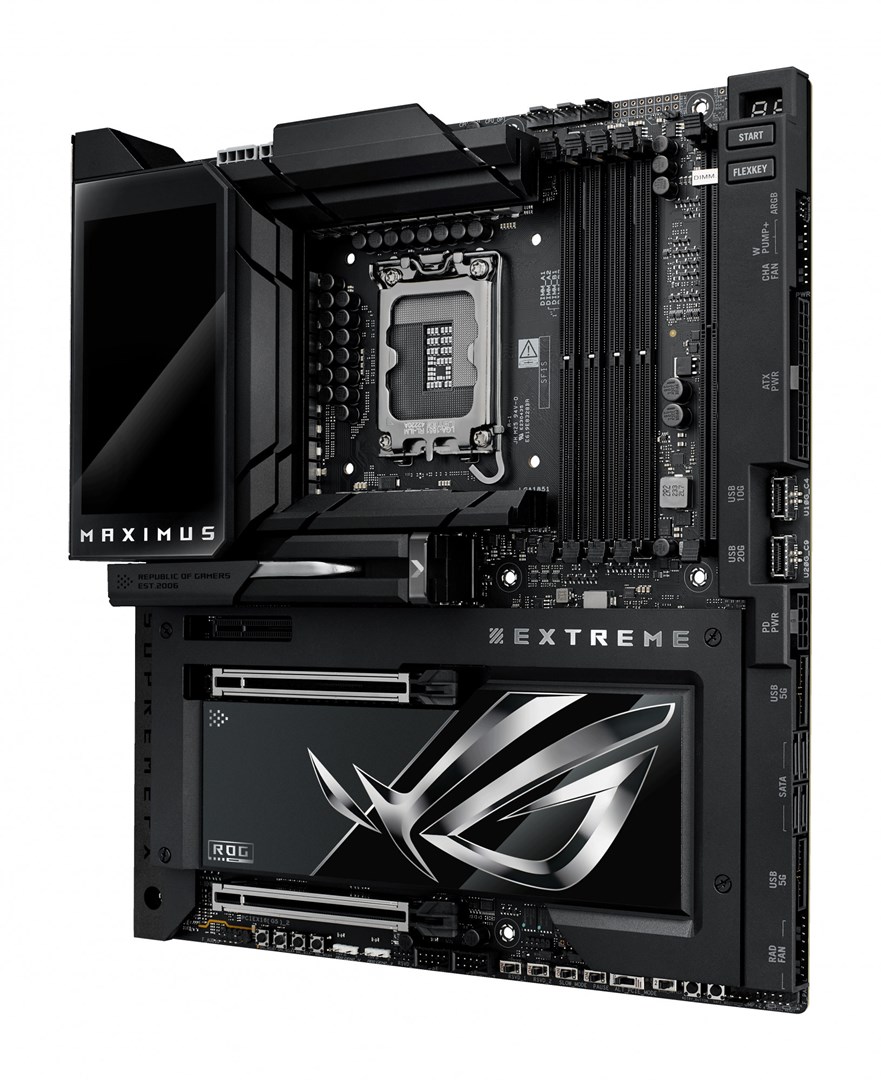

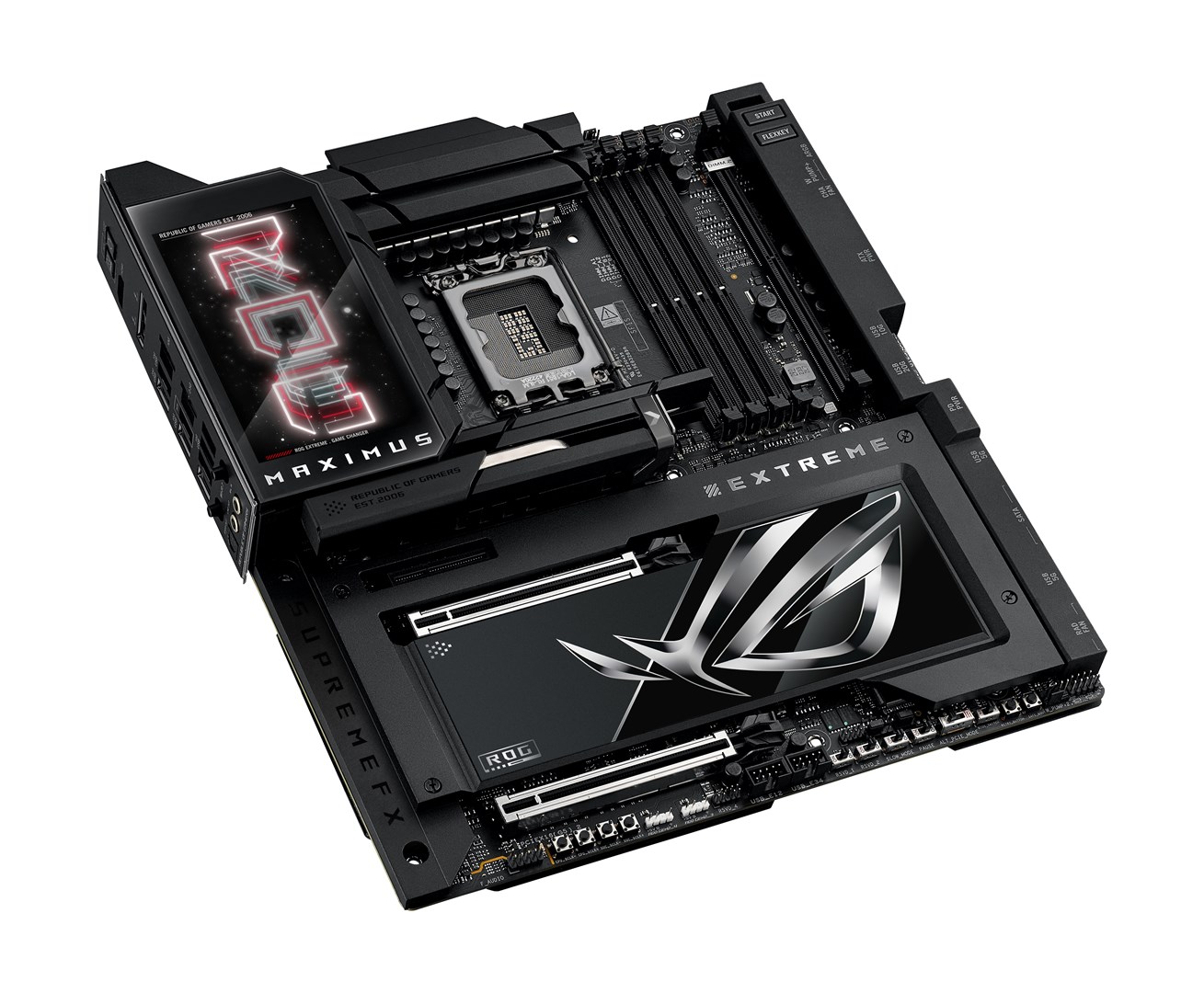

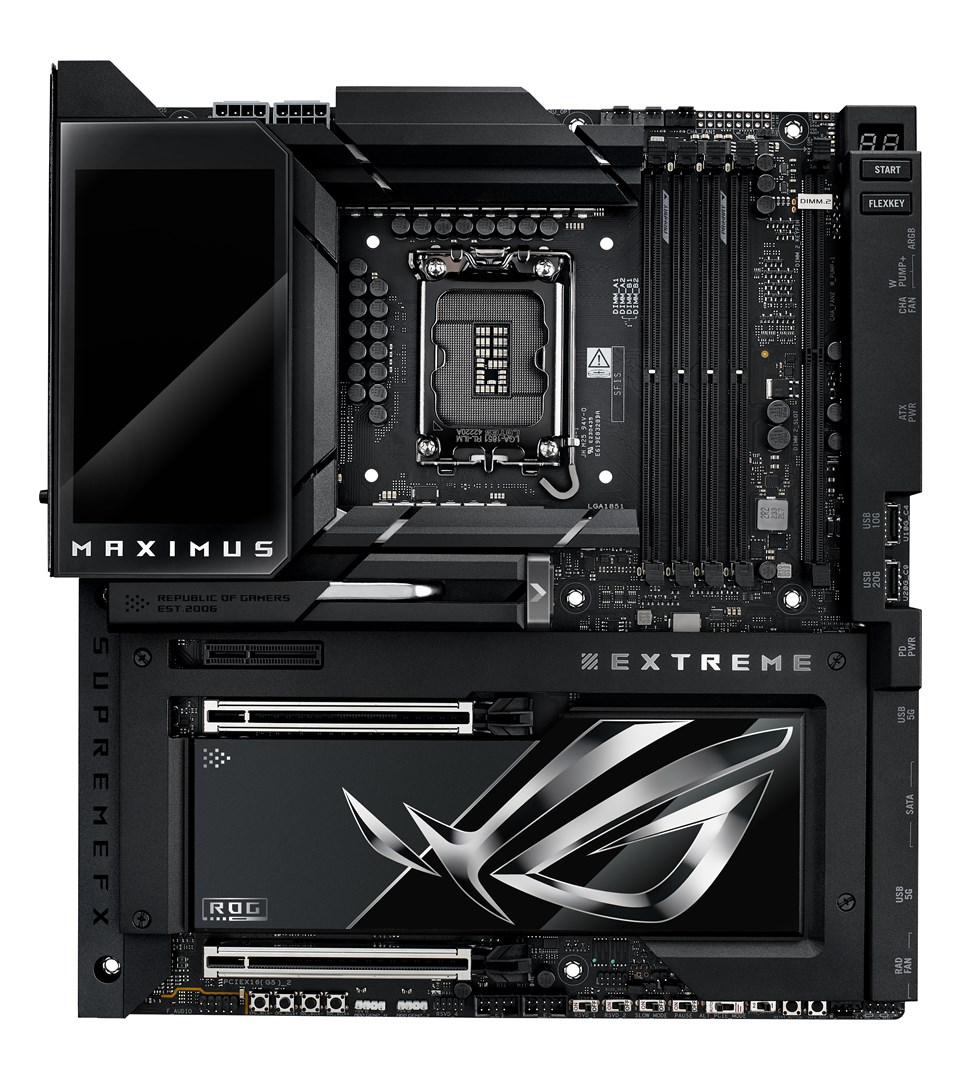

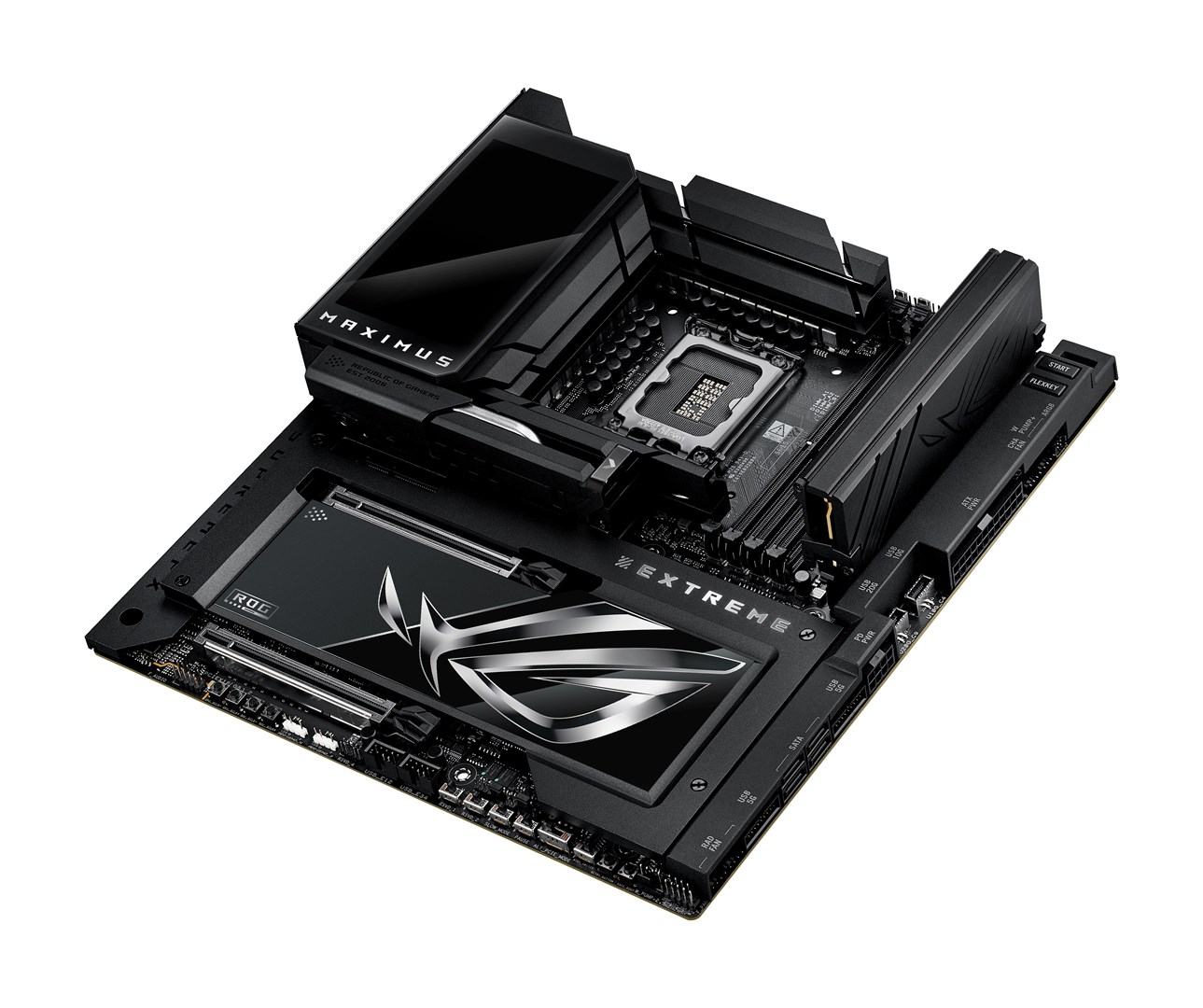

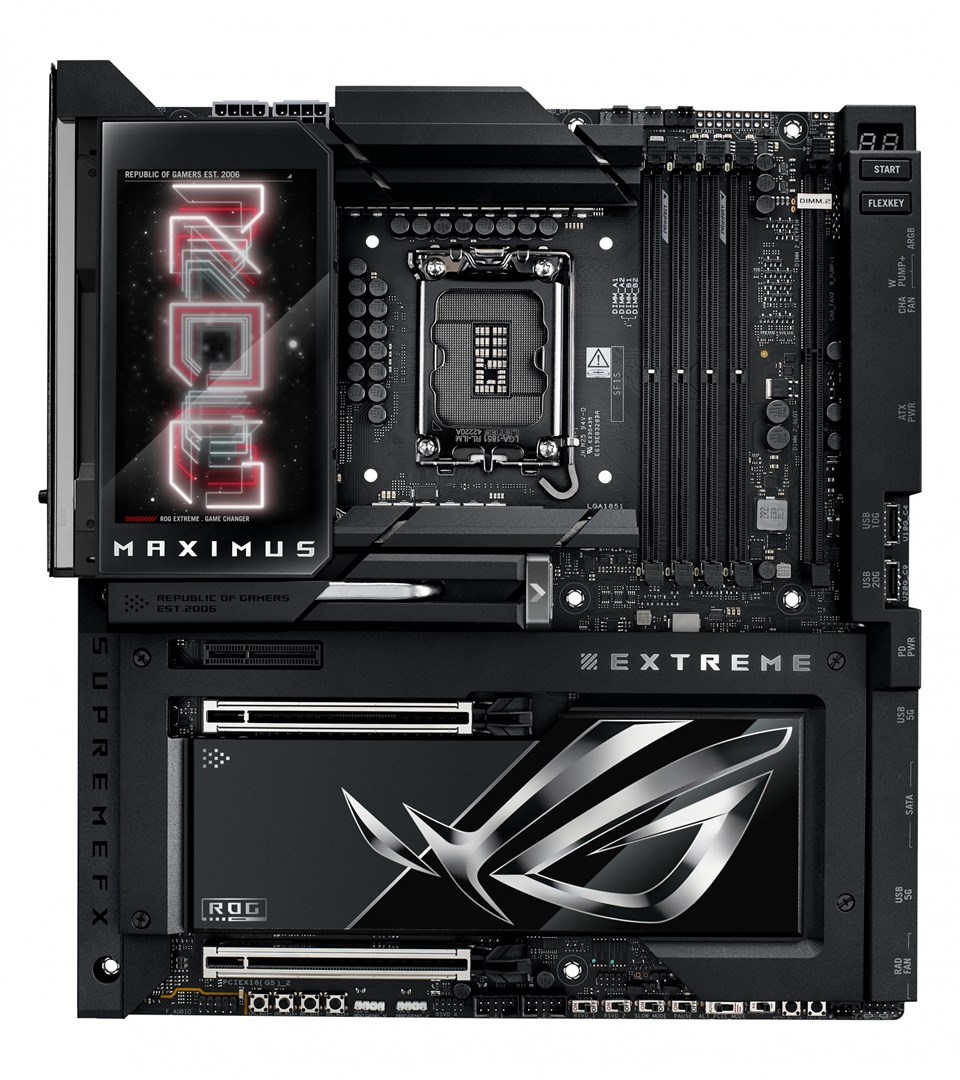

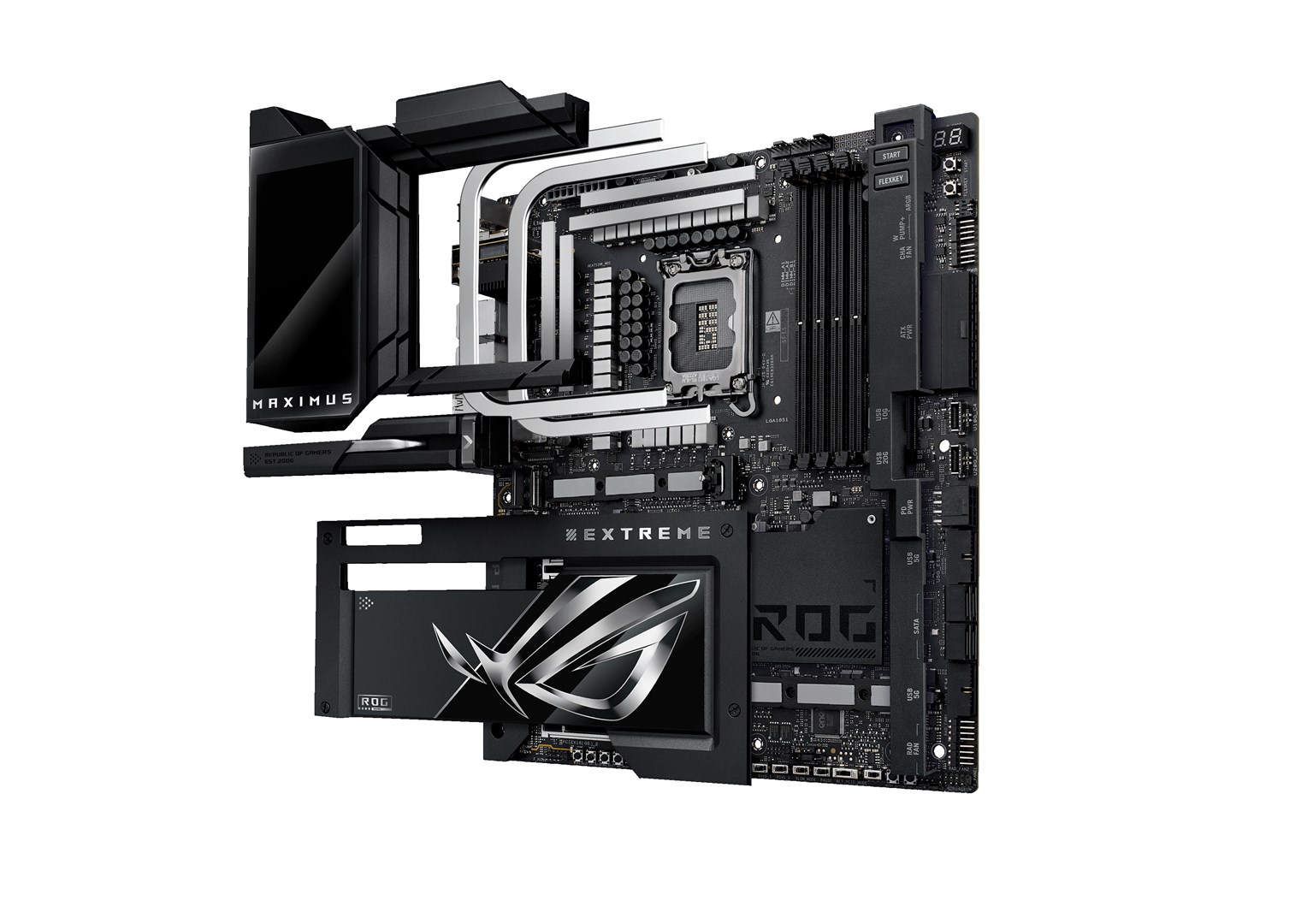

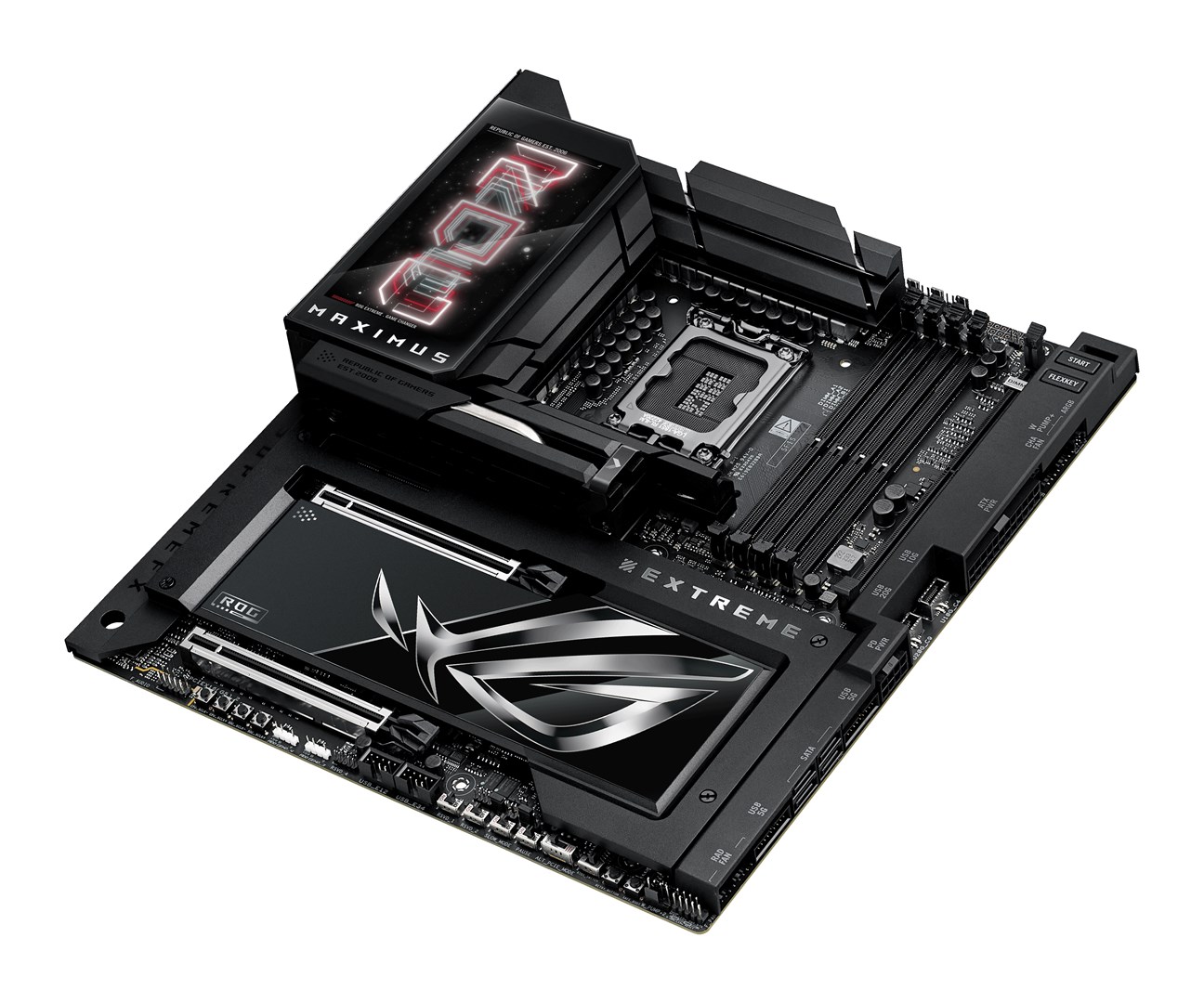

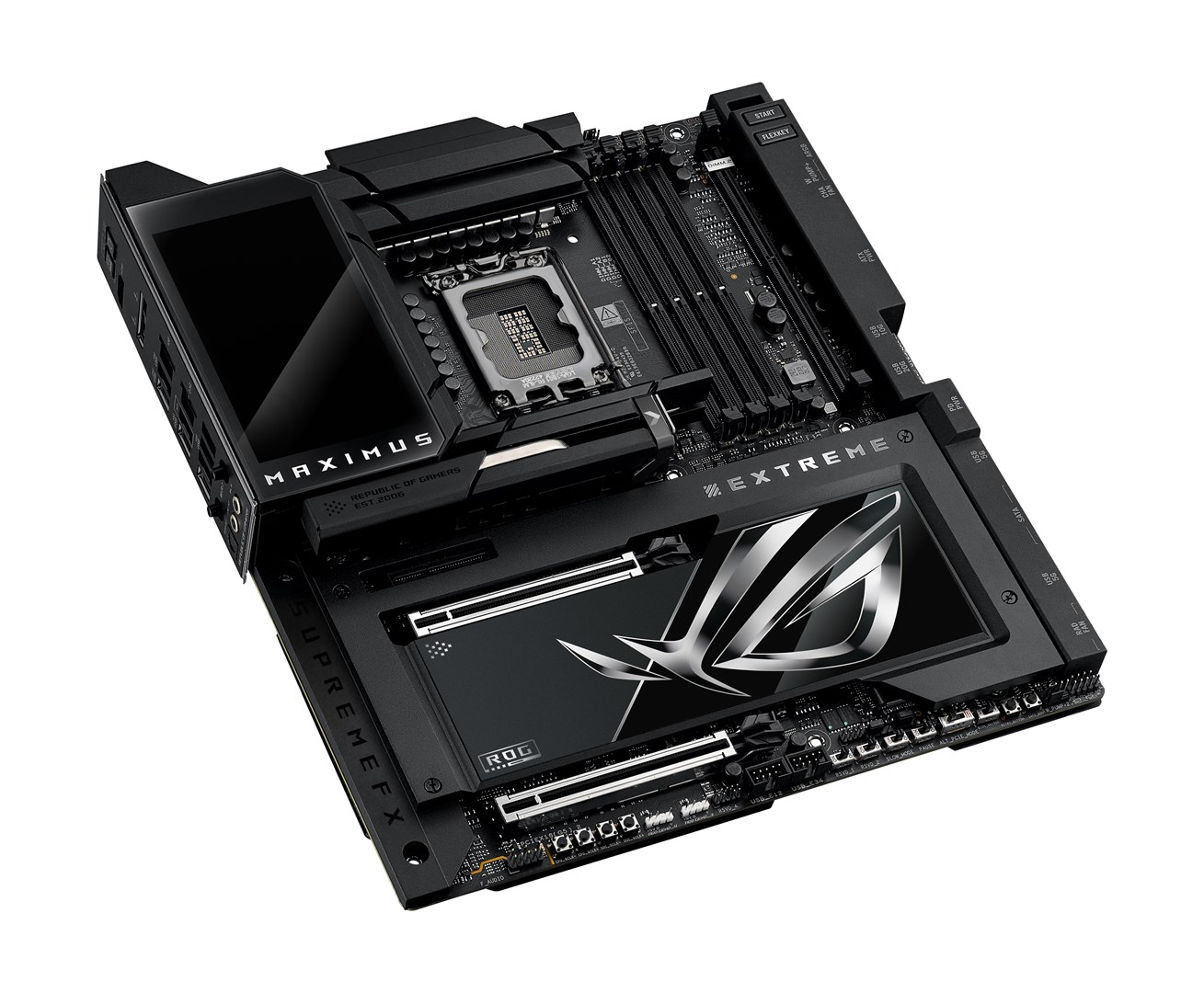

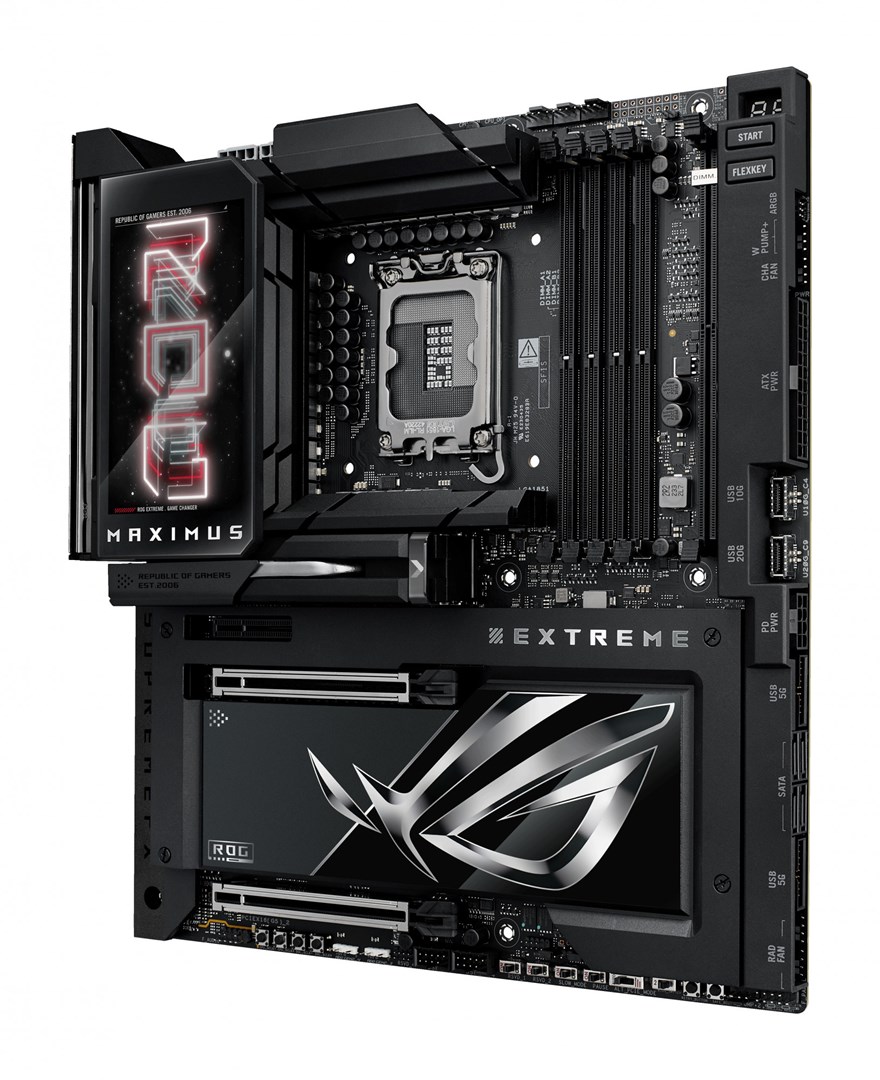

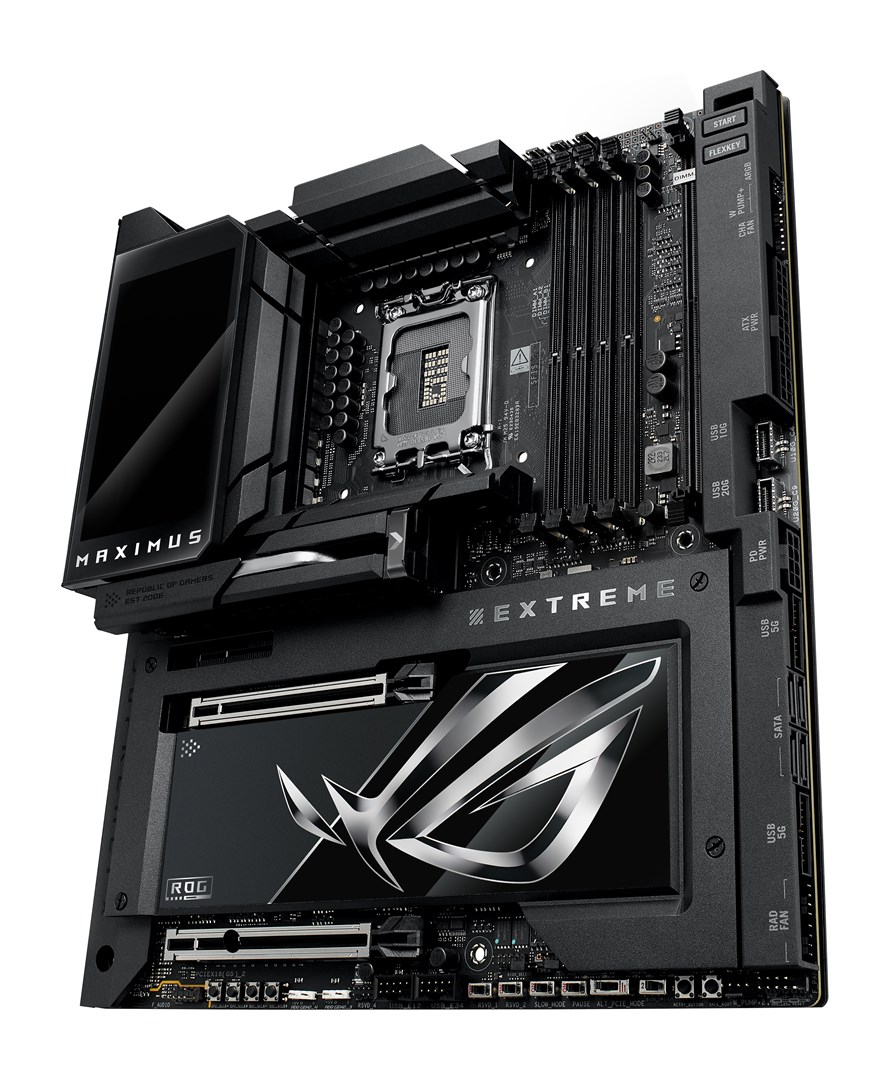

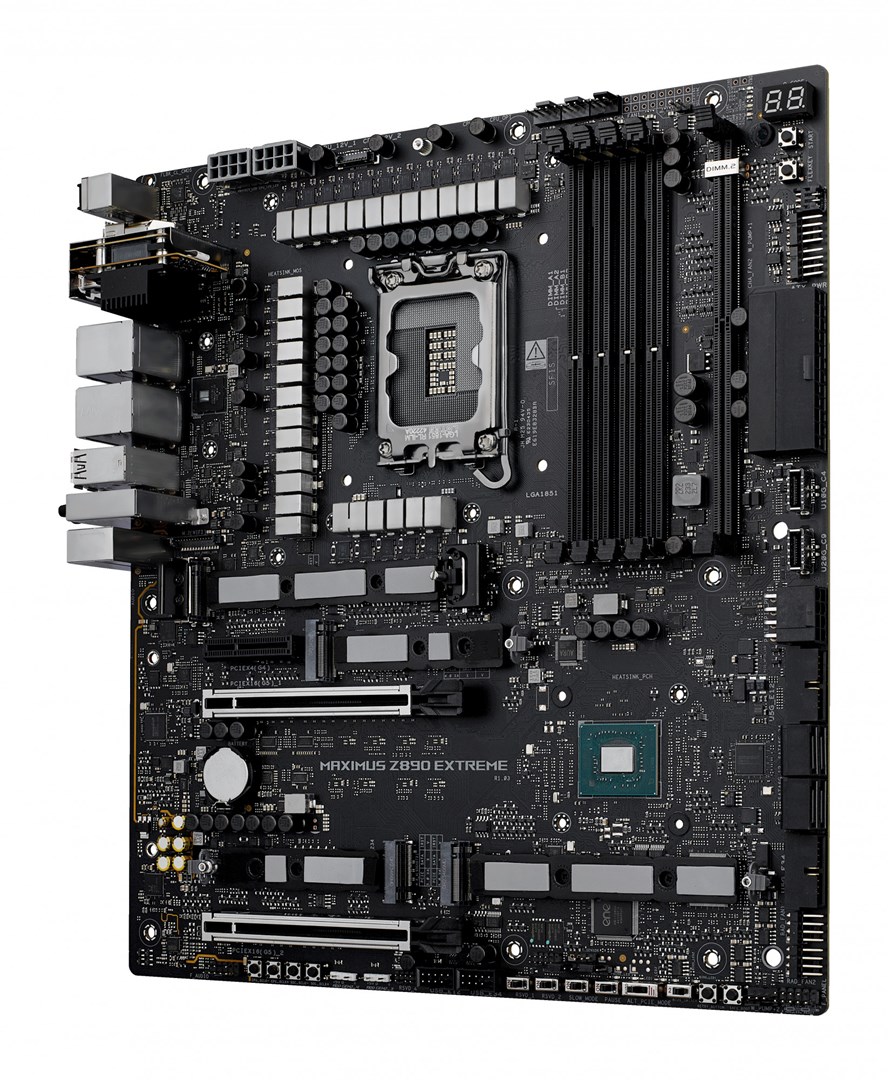

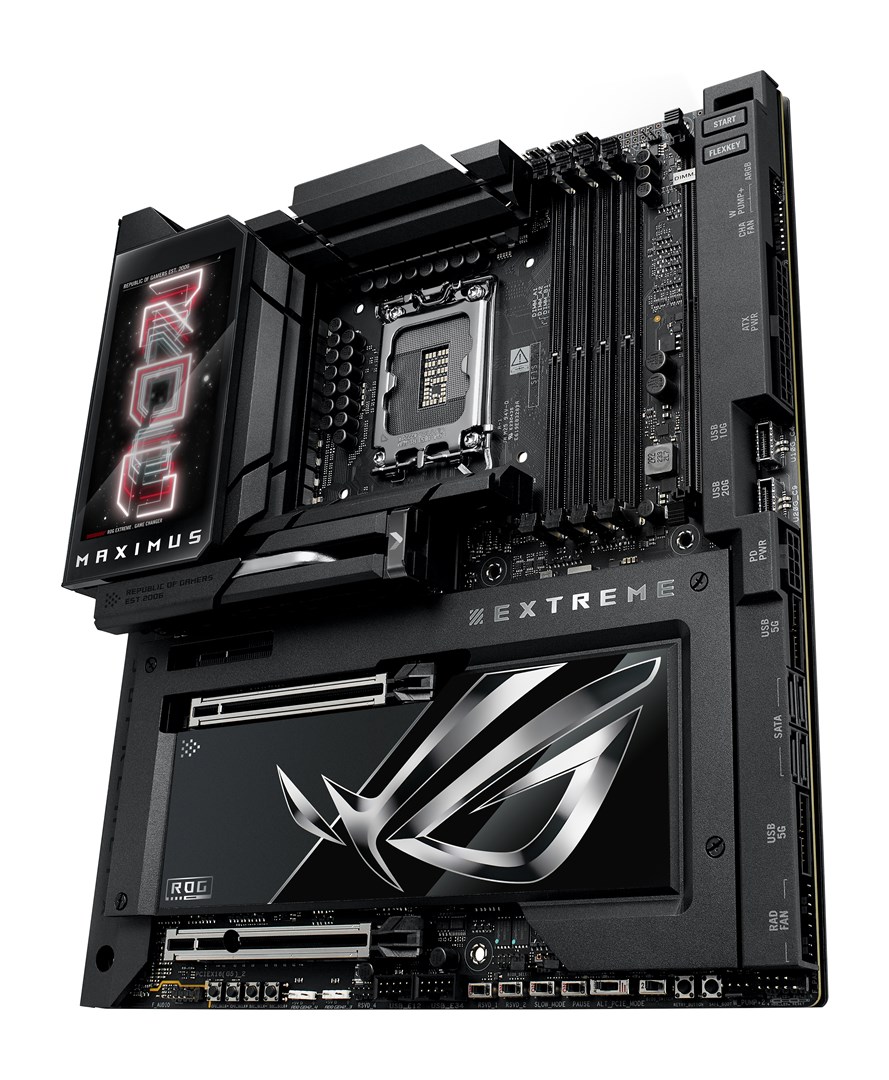

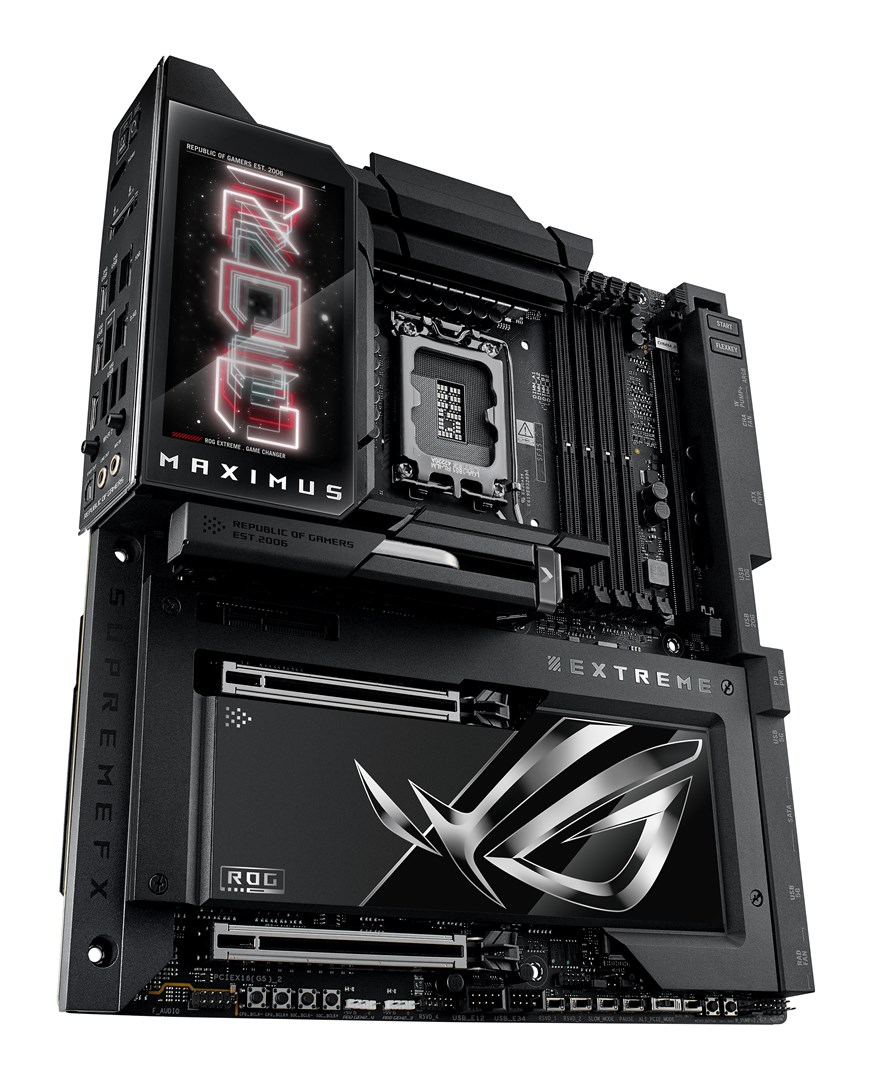

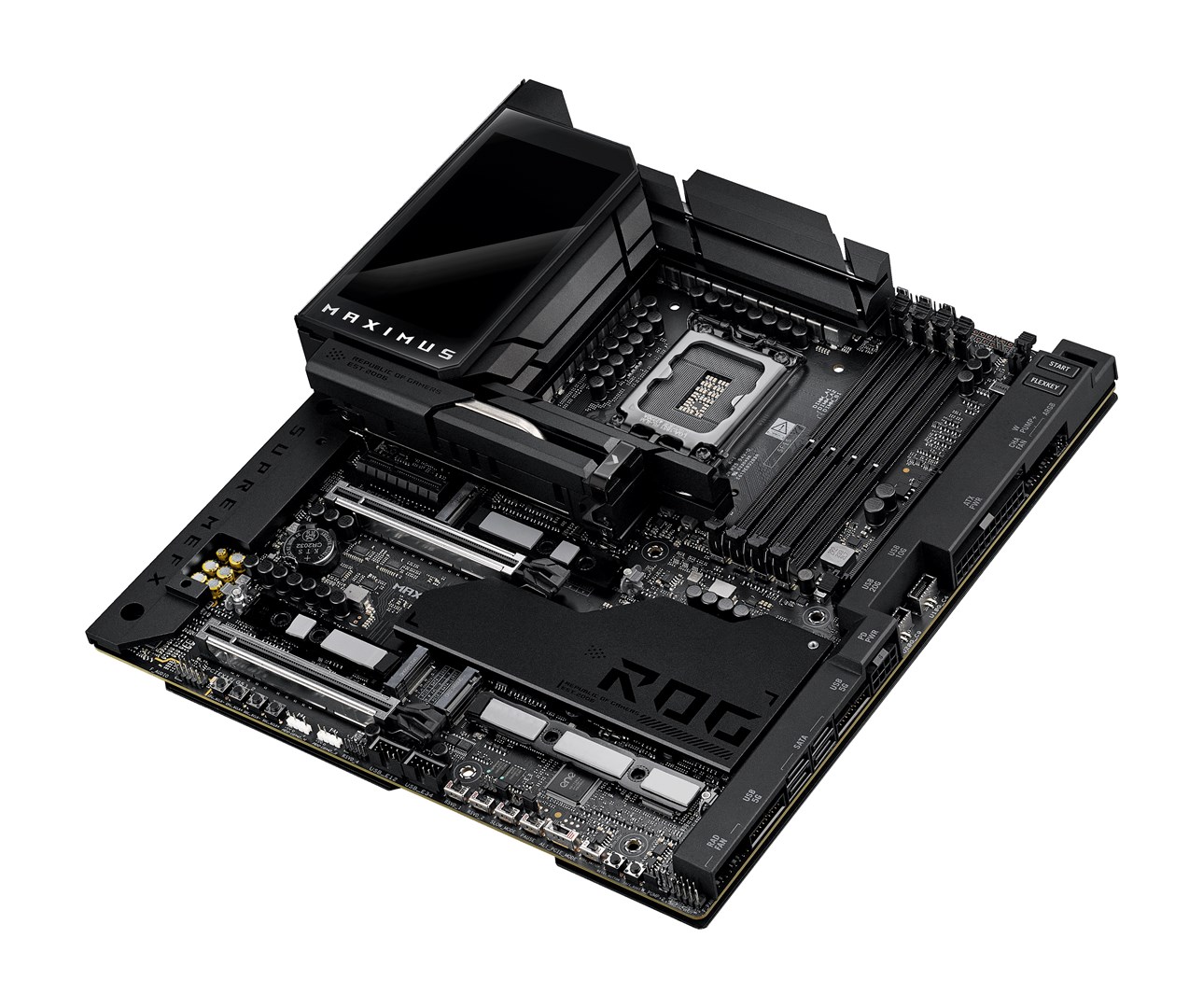

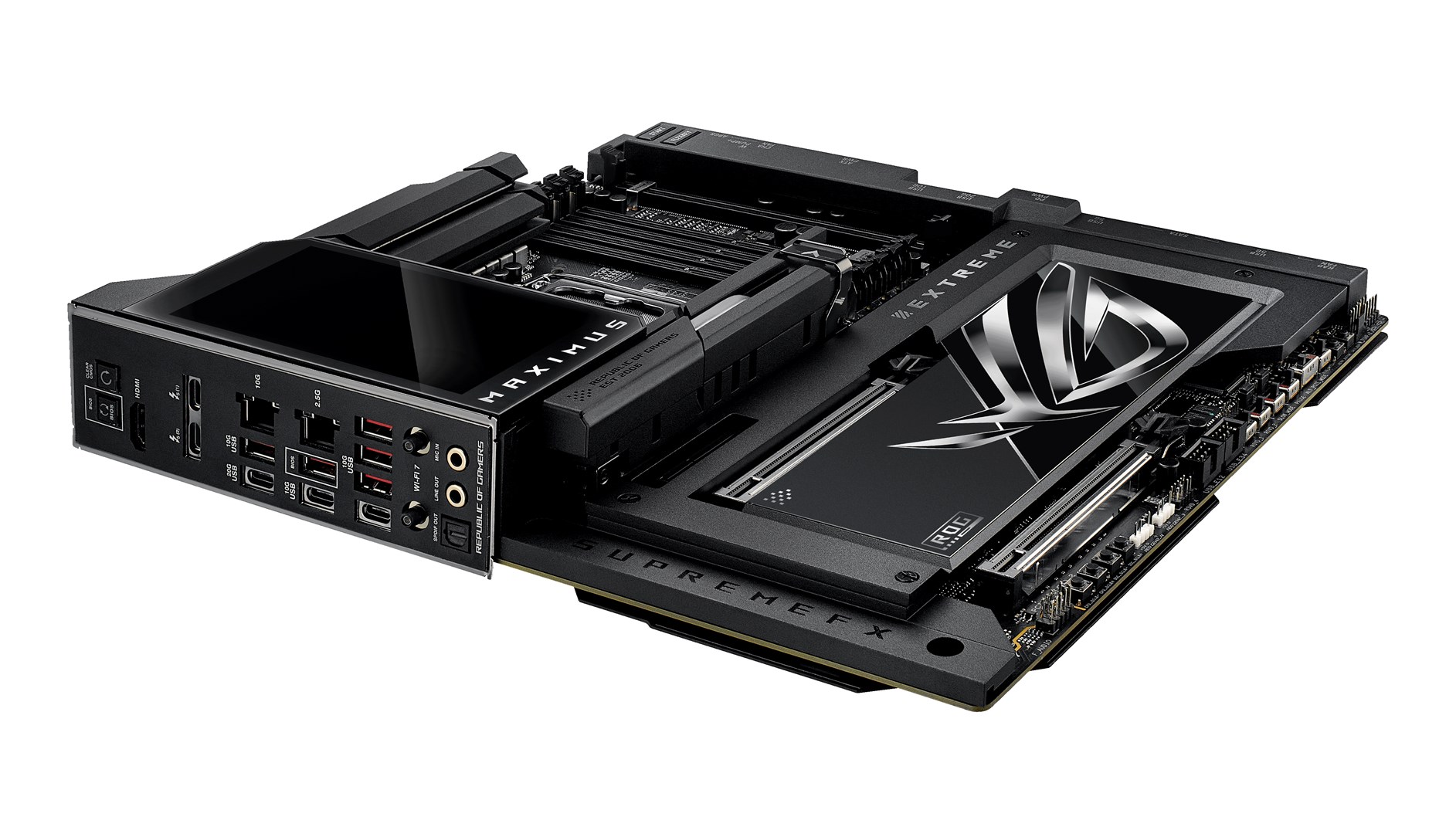

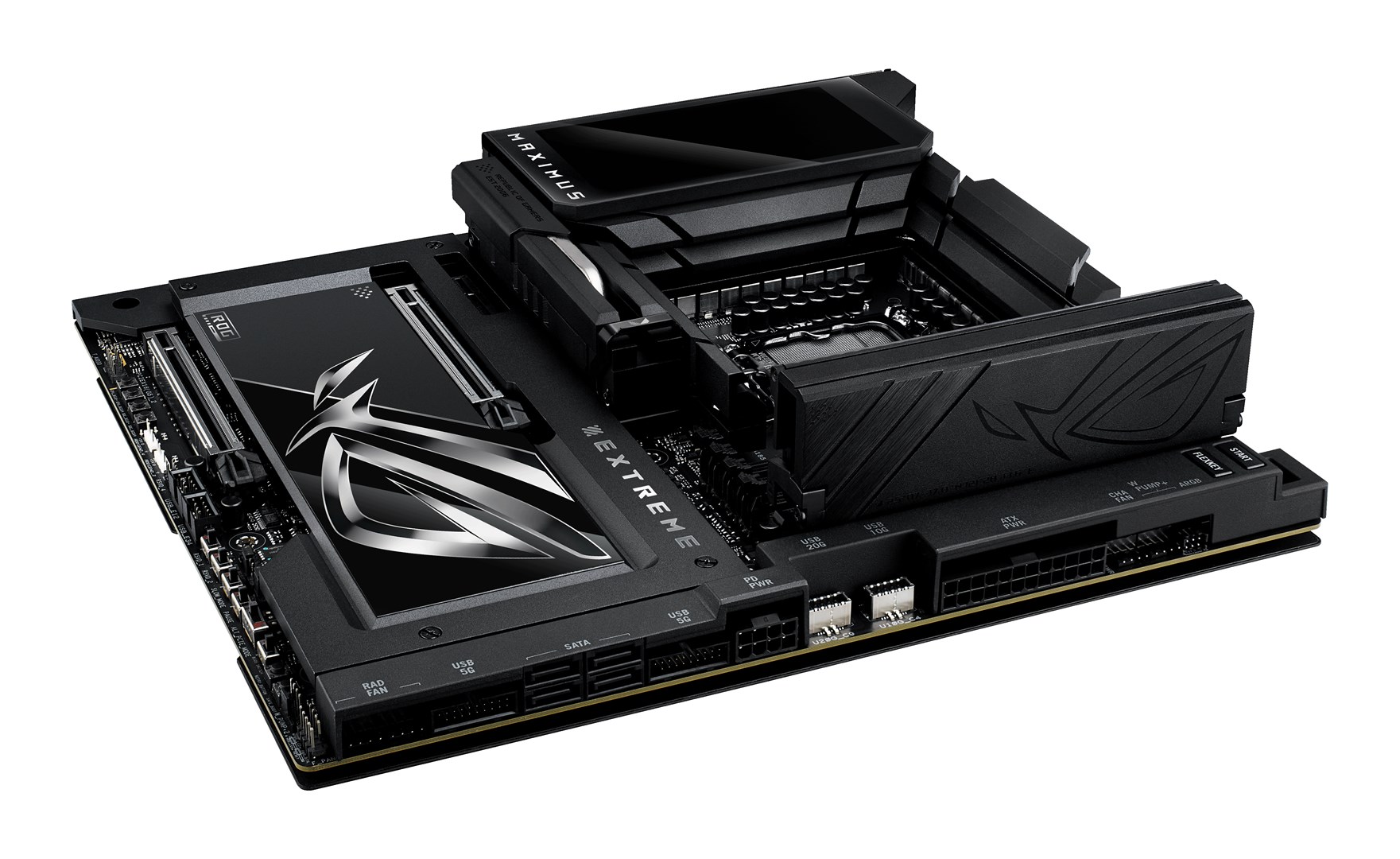

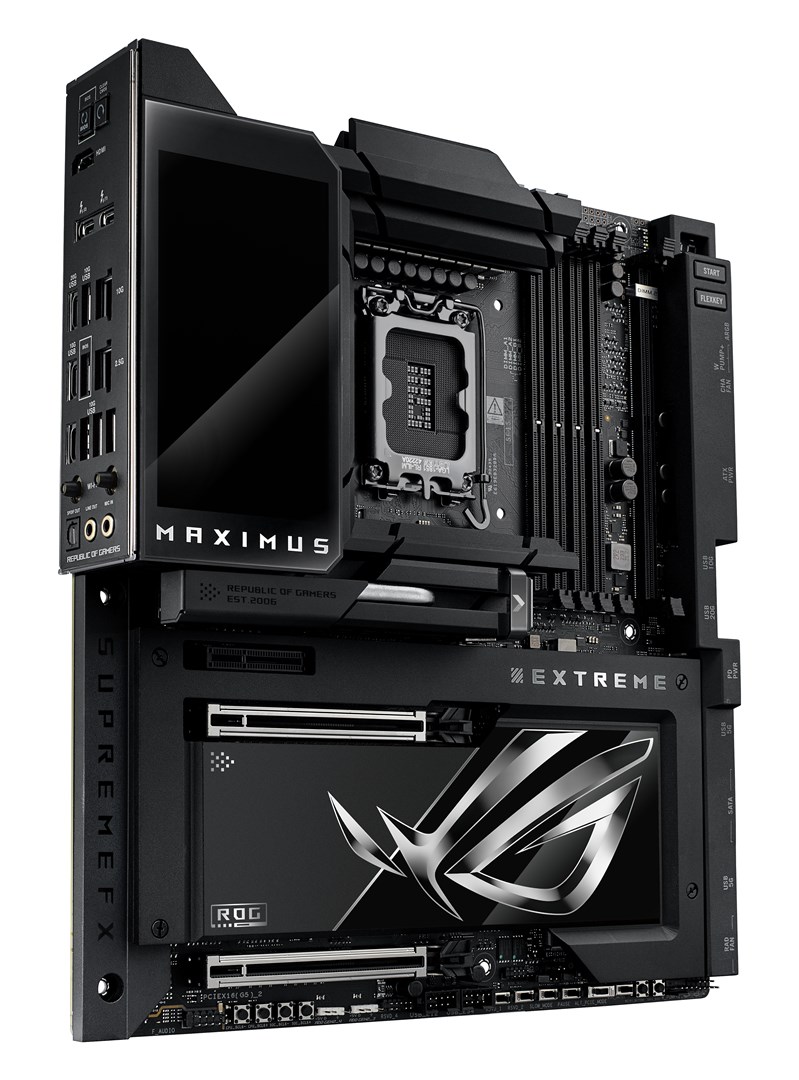

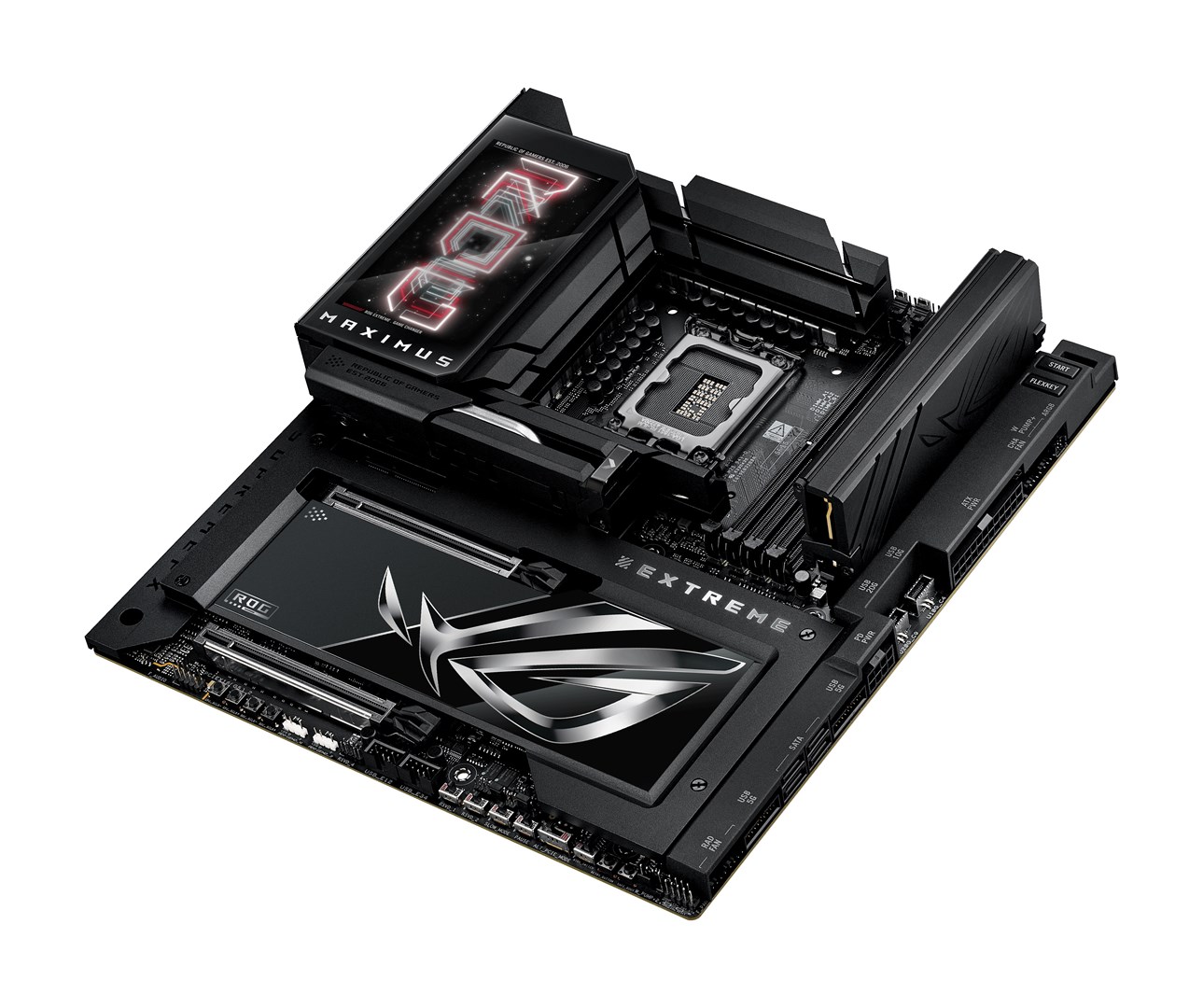

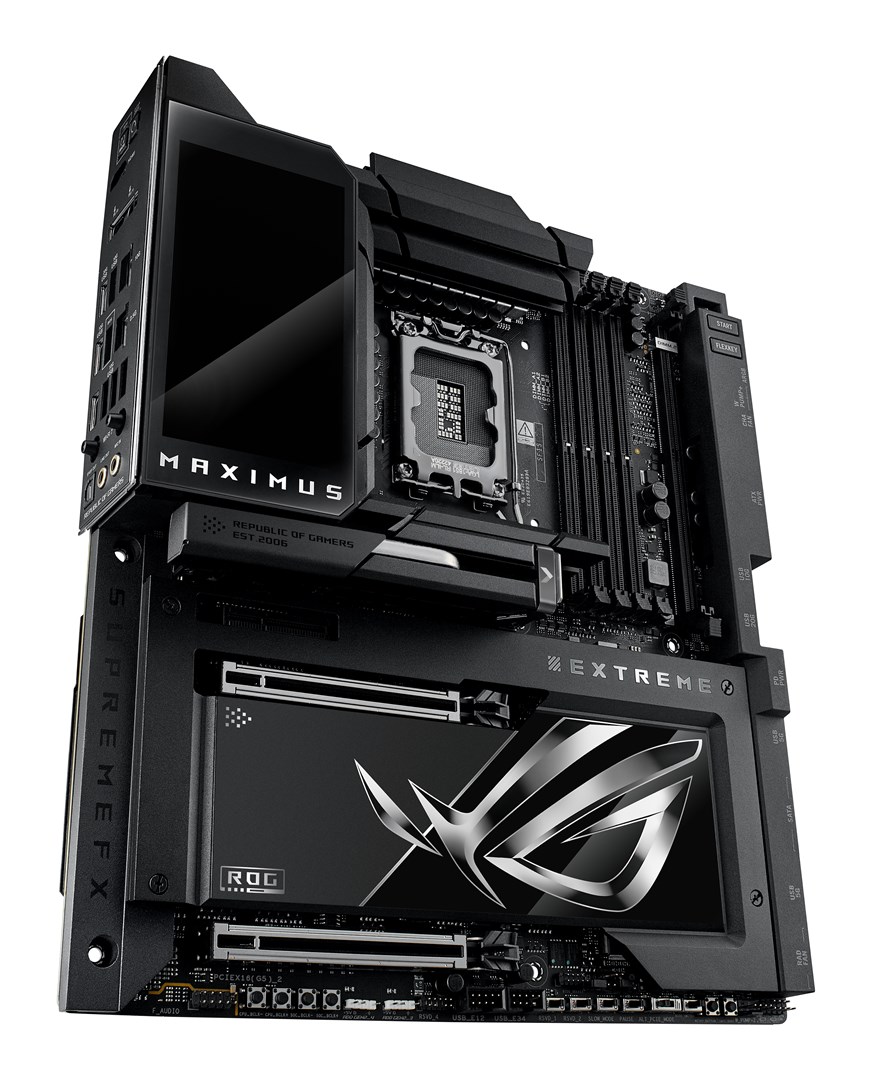

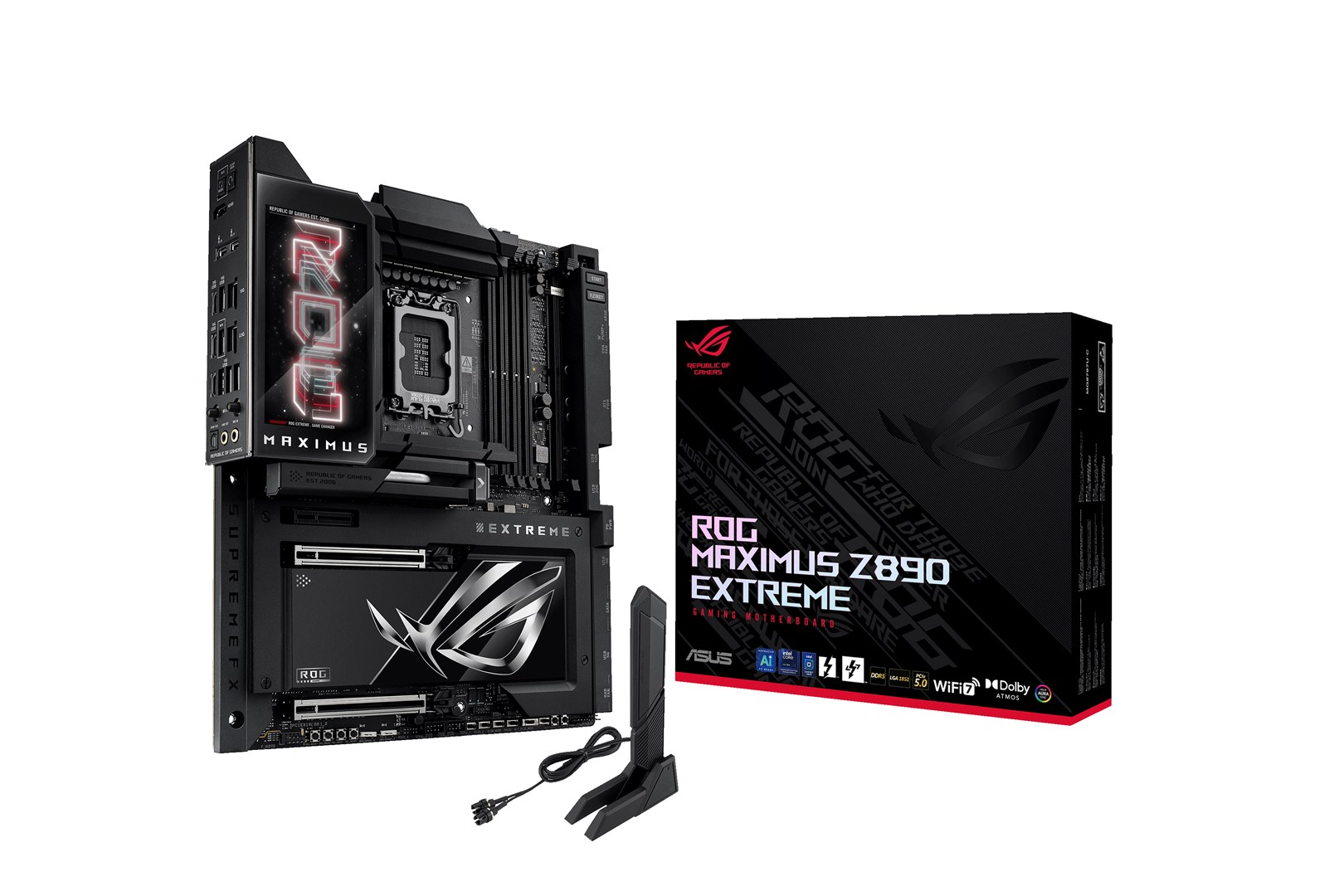

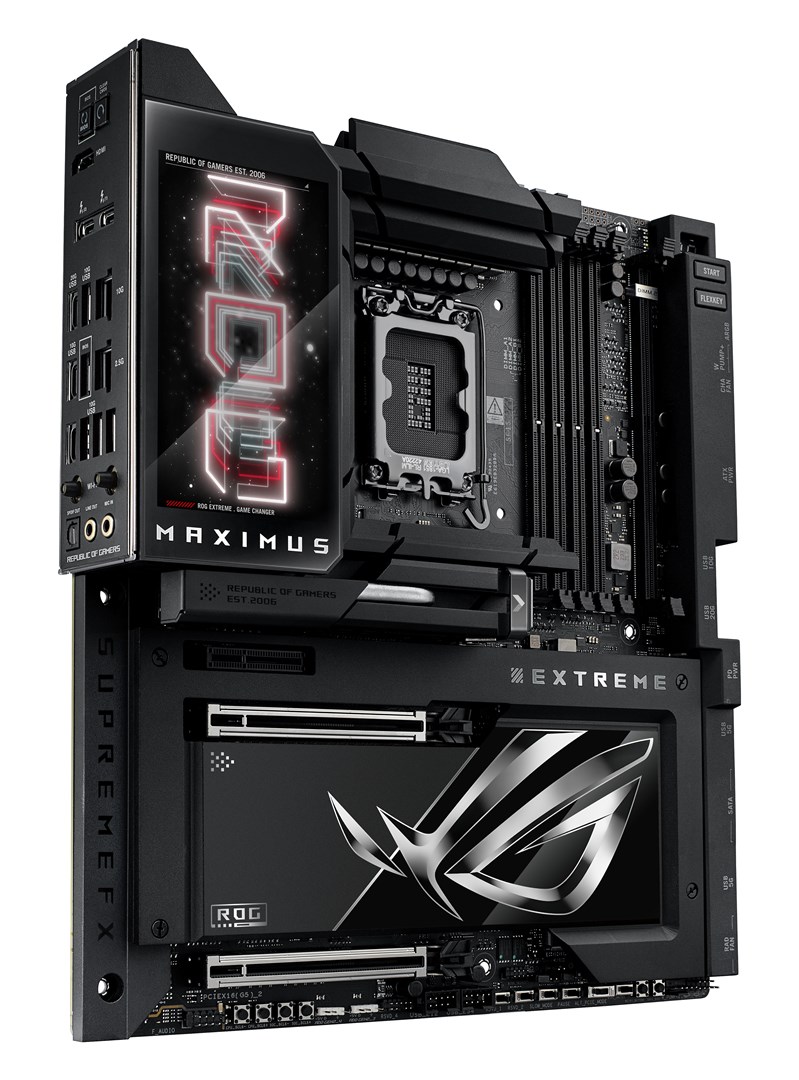

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

ROG Maximus Z890 Extreme

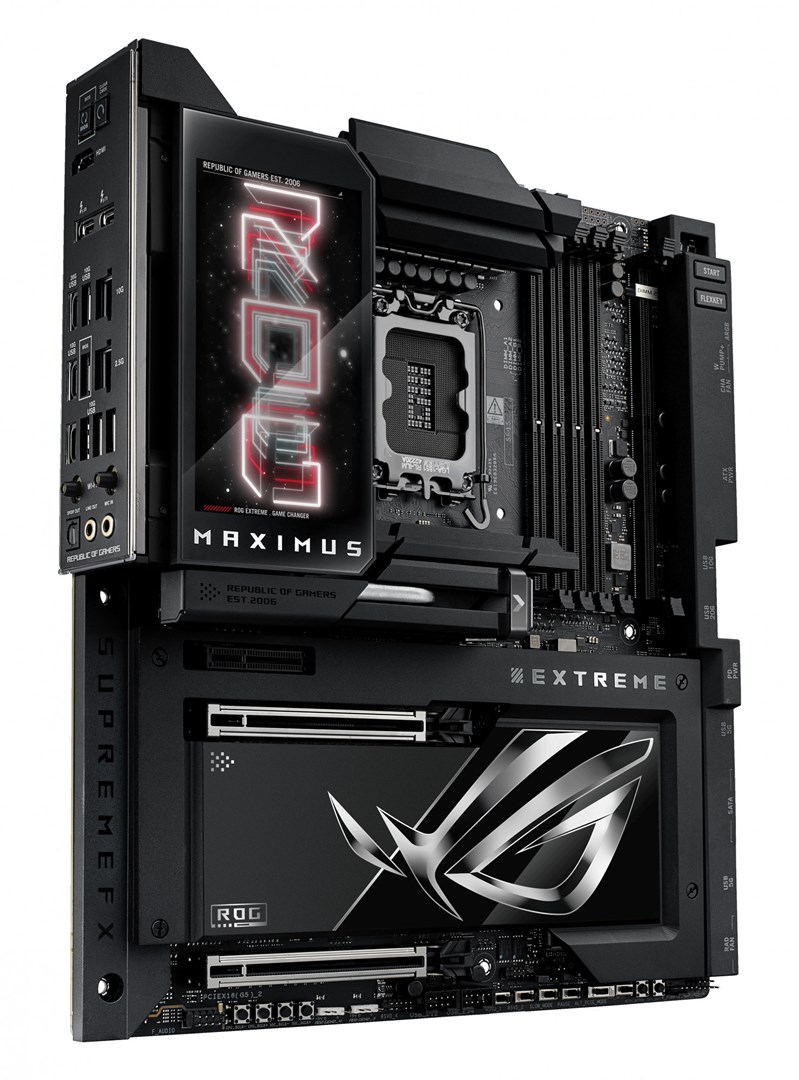

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

4 IN STOCK

SKU: 90MB1IA0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €1,545.34

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8800 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes

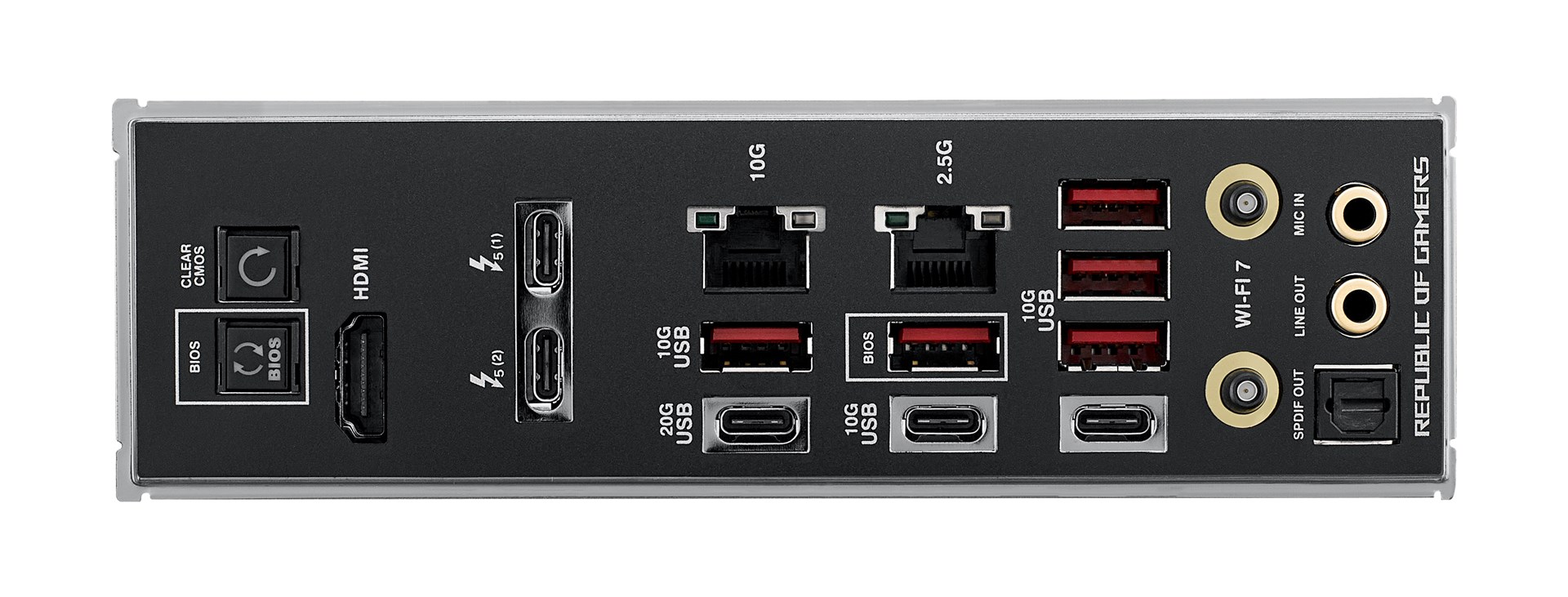

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet

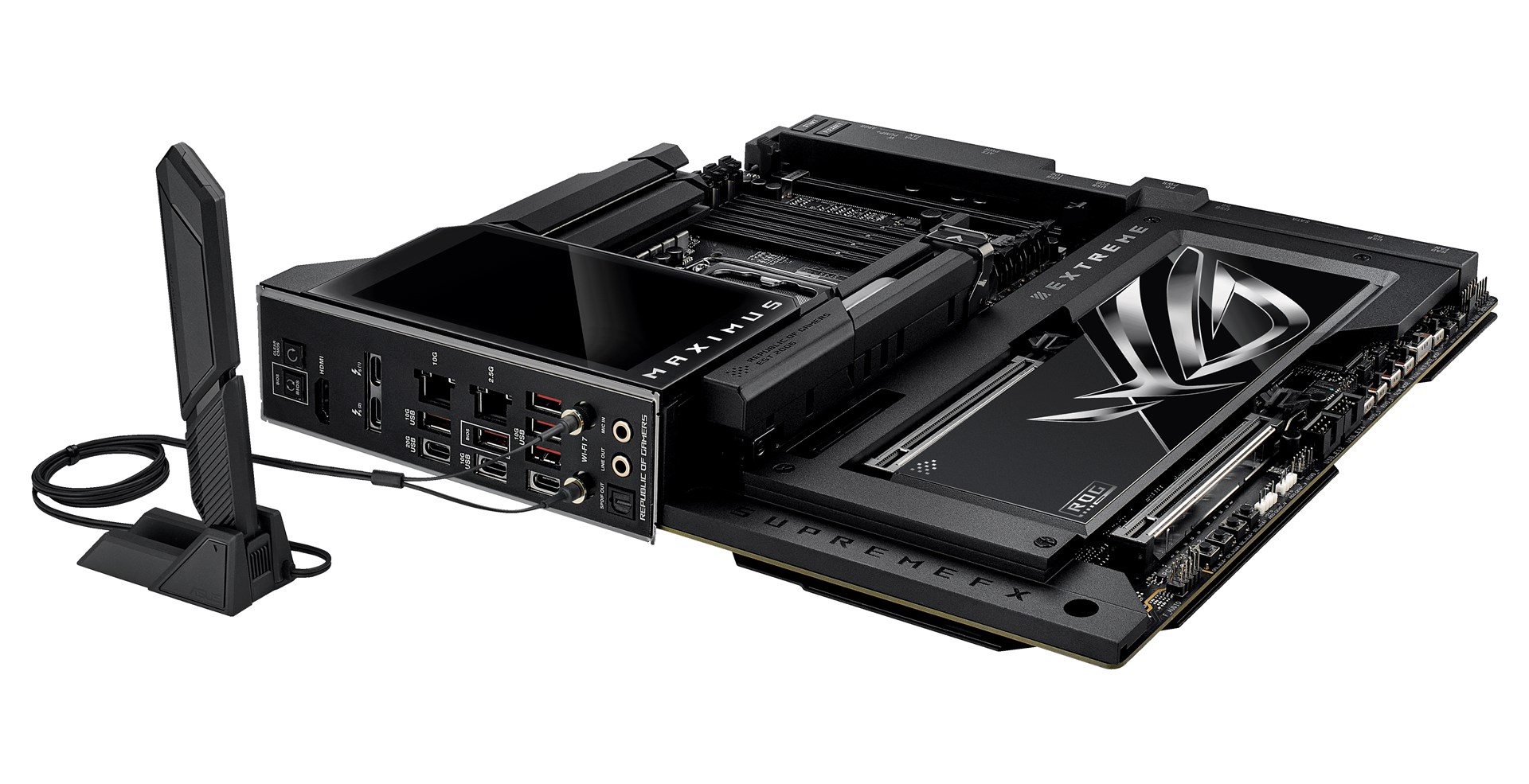

Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
Intel Z890
Audio chip
Realtek ALC4082
Audio output channels
7.1 channels
Product colour
Black
Component for
PC
Motherboard form factor
Extended ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
6

BIOS

BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes

Packaging data

Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.73 kg

Weight & dimensions

Width
305 mm
Depth
277 mm
