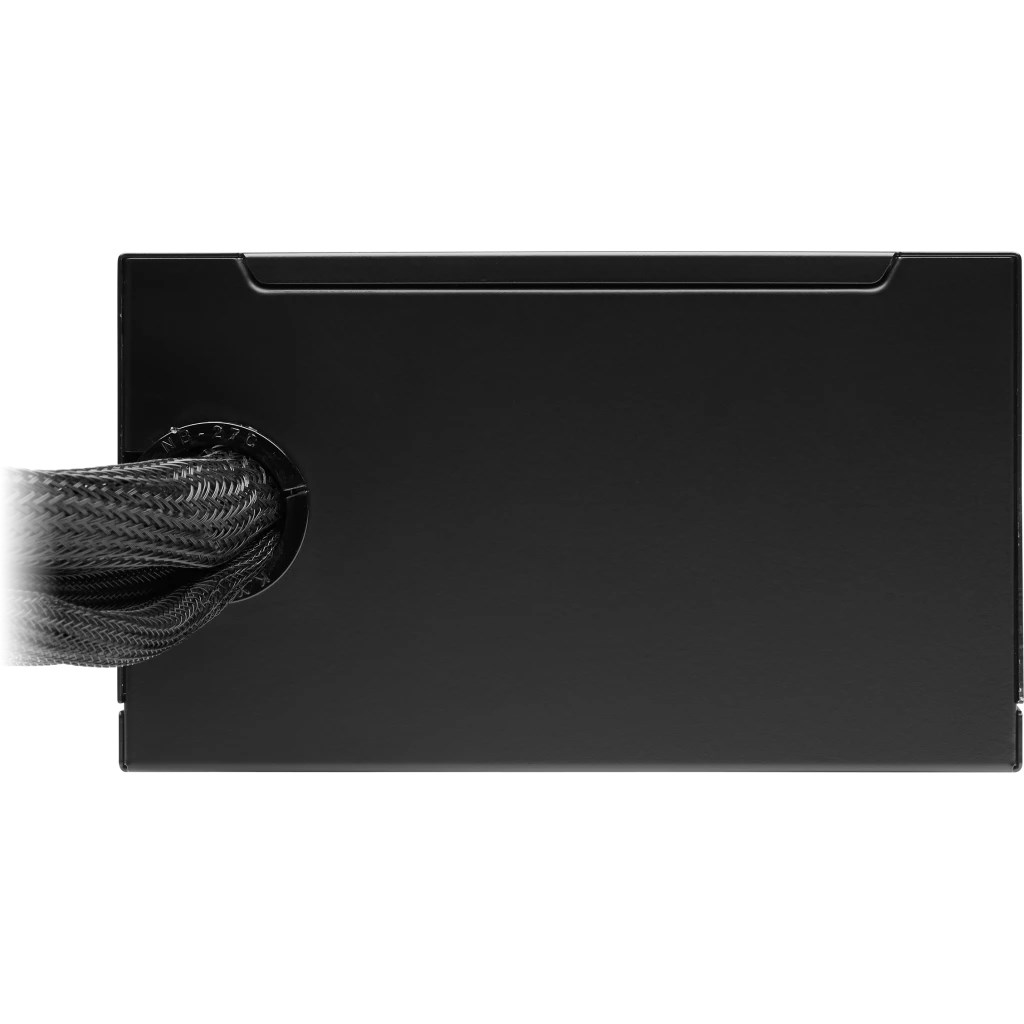

Corsair CX Series CX550 power supply unit 550 W 24-pin ATX ATX Black

CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.

80 PLUS BRONZE POWER
Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.

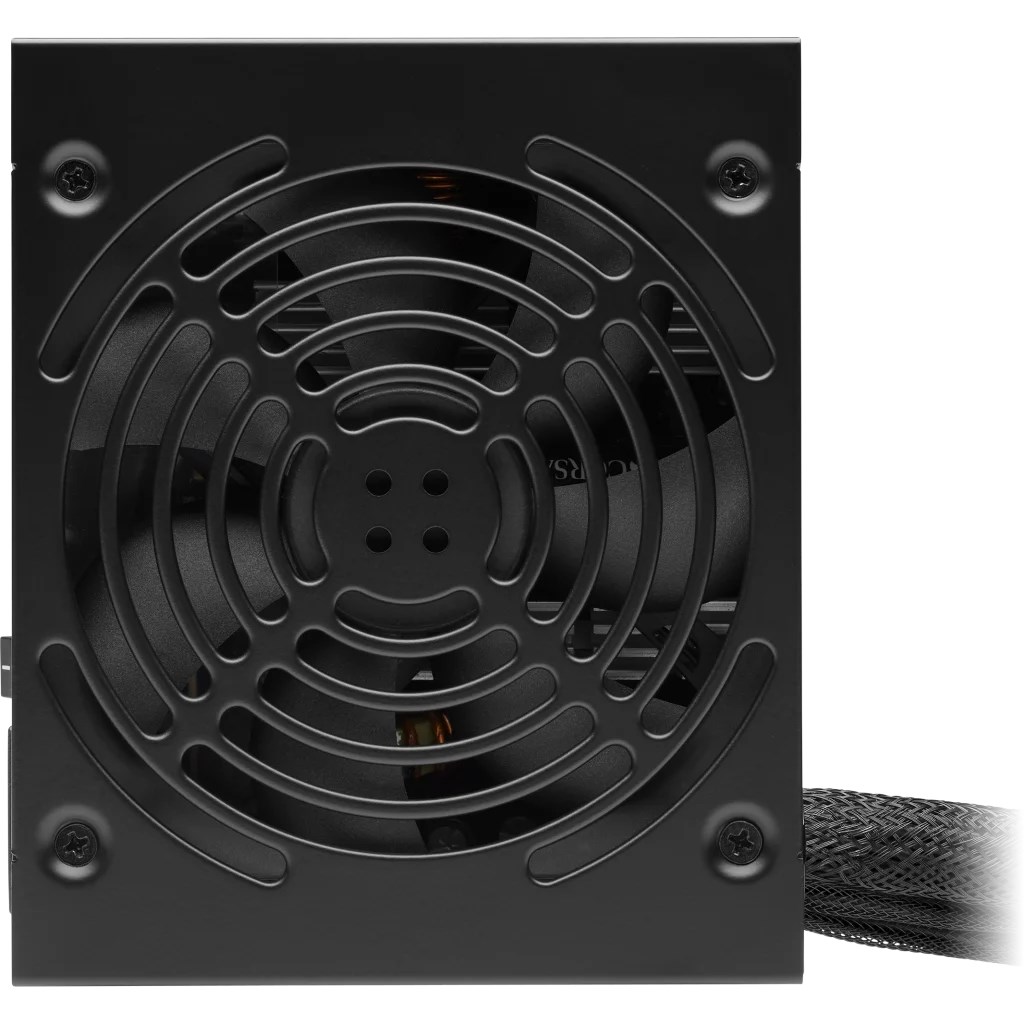

120mm LOW-NOISE FAN
Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.

AN EASY FIT
A compact 125mm-long casing ensures an easy fit in almost all modern PC cases.

ON ORDER

SKU: CP-9020277-EU

Manufacturer: Corsair Corsair

RRP Price €0.00

Specifications

Power

Total power
550 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Input current
10 - 5 A
Combined power (+3.3V)
130 W
Combined power (+12V)
624 W
Combined power (+5V)
130 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
24 A
Max output current (+12V)
52 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A

Ports & interfaces

Motherboard power connector
24-pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
8
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
1
Cabling type
Non-Modular

Performance

80 PLUS certification
80 PLUS Bronze
Purpose
PC
Power supply unit (PSU) form factor
ATX

Design

Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top

Weight & dimensions

Width
150 mm
Depth
125 mm

Accessories
