Crestron CRESNET-NP-BK-B500 signal cable 152 m Blue, Yellow

Name: Crestron CRESNET-NP-BK-B500 signal cable 152 m Blue, Yellow
Brand: Crestron
SKU: CRESNET-NP-BK-B500
Price: 262.74 EUR
Availability: OutOfStock

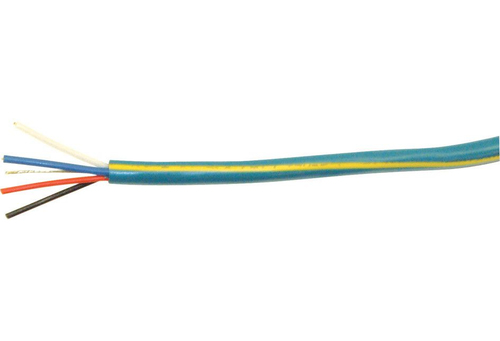

Crestron certified for use in the wiring of a Cresnet® control network. Provides (1) 22 AWG shielded twisted pair for Cresnet control data, and (1) 18 AWG pair for 24VDC and Ground, within a single PVC jacket.

The Cresnet bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both homerun and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.

Within a single non-plenum PVC jacket, CRESNET-NP contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data. CRESNET-NP is available in four colors: teal, orange, black, or white.

ON ORDER

SKU: CRESNET-NP-BK-B500

Manufacturer: Crestron

RRP Price €262.74

Specifications

Features

Cable length

152 m

Product colour

Blue, Yellow

Impedance

100 Ω

Description

Manufacturer

Crestron

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Crestron DM-CBL-8G-P-SP1000 networking cable Blue 304.8 m Cat5e F/UTP (FTP) Audio & Video

Ultra high-performance CAT5e shielded twisted-pair cable designed to deliver optimum performance for the wiring of DigitalMedia 8G+®, HDBaseT®, and Sonnex® systems, and anywhere else CAT5e is required.Crestron® DigitalMedia 8G™ Cable (DM-CBL-8G-P) is a 350MHz-certified twisted-pair cable with overall foil shield (F/UTP) that is engineered to deliver optimum performance for use in data networking and high-definition AV signal distribution applications. It is precision manufactured and tested to significantly exceed the CAT5e specifications for bandwidth, crosstalk, and interference rejection, and is qualified for use wherever a high-quality shielded CAT5e wire is required. DigitalMedia 8G Cable provides a complete Crestron-guaranteed wiring solution for use with DigitalMedia 8G+® devices, and is also highly recommended for use with Sonnex® Multiroom Audio Systems, HDBaseT®, and other CATx based audio, video, and data distribution products.350MHz Multimedia and Data-Grade Shielded CAT5eFor digital multimedia or Ethernet data networking, DM 8G® Cable provides the finest shielded CAT5e on the market. Every spool is individually certified to ANSI/TIA/EIA-568-B.2 Category 5e, and tested to 350 MHz bandwidth, ensuring ultimate performance for demanding AV and data network applications. Its high-quality 100% foil shield ensures very low EMI/RFI interference, preventing video signal interruption or loss of data — even in noisy environments. Foot markers printed on the cable's outer jacket make it easy to verify the exact length of each cable during installation.DigitalMedia 8G+® HD AV Signal Distribution over One WireCrestron DigitalMedia™ (DM®) is the world's most evolved system solution for distributing uncompressed, high-definition digital video and audio throughout a home or commercial structure. DigitalMedia 8G+ is the latest generation of DM, providing a true one-wire transport for moving HD and Ultra HD video, high-bitrate 7.1 audio, high-speed Ethernet, and power over CAT5e. DigitalMedia 8G Cable is specially designed and pre-qualified for use with DM 8G+® transmitters, receivers, and switchers. Compared to ordinary CAT5e, DM 8G Cable affords much higher performance margin to ensure a reliable installation every time.[1]HDBaseT® RecommendedHDBaseT technology is a consumer electronic connectivity technology optimized for whole-home and commercial multimedia distribution. HDBaseT converges uncompressed full HD digital video, audio, Ethernet, power, and control signals through a single CAT5e cable. Crestron DM 8G Cable is ideally designed and tested for use with HDBaseT products.[1]

€1,035.36

HEATING, COOLING, AND RELATIVE HUMIDITY THERMOSTAT, DIN RAIL MOUNT - 6509627 Audio & Video

HEATING, COOLING, AND RELATIVE HUMIDITY THERMOSTAT, DIN RAIL MOUNT - 6509627

€432.00

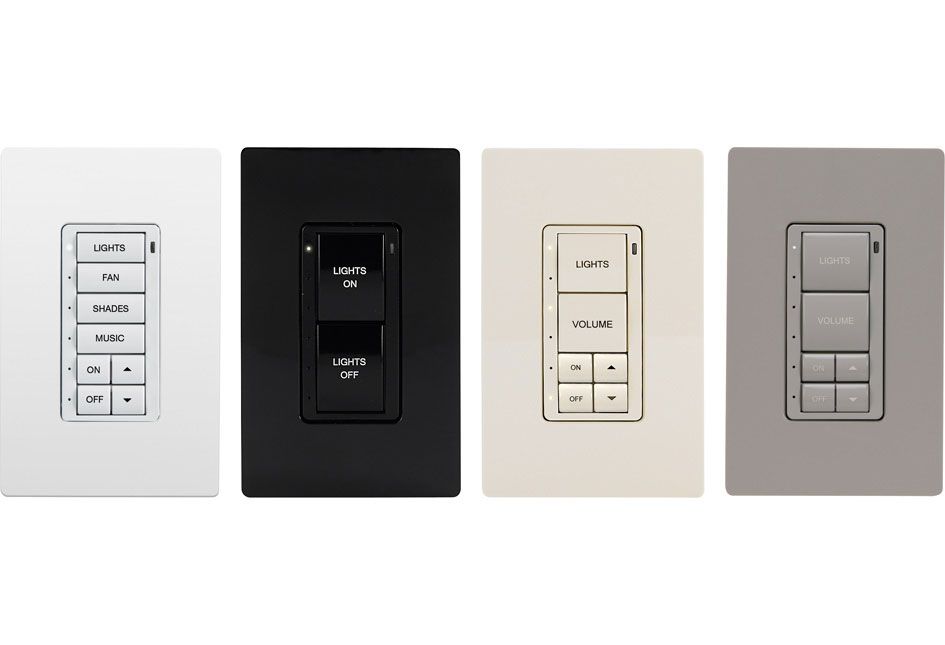

CAMEO KEYPAD, FLUSH MOUNT, ALMOND TEXTURED - 6504673 Audio & Video

CAMEO KEYPAD, FLUSH MOUNT, ALMOND TEXTURED - 6504673

€181.44

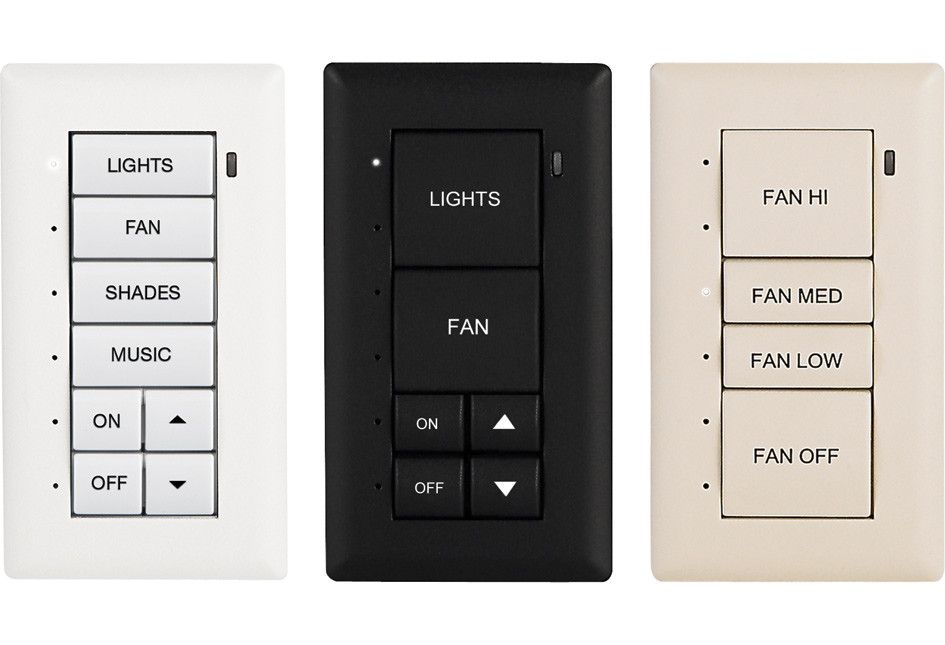

CAMEO KEYPAD, STANDARD MOUNT, DUSK TEXTURED - 6509751 Audio & Video

CAMEO KEYPAD, STANDARD MOUNT, DUSK TEXTURED - 6509751

€181.44

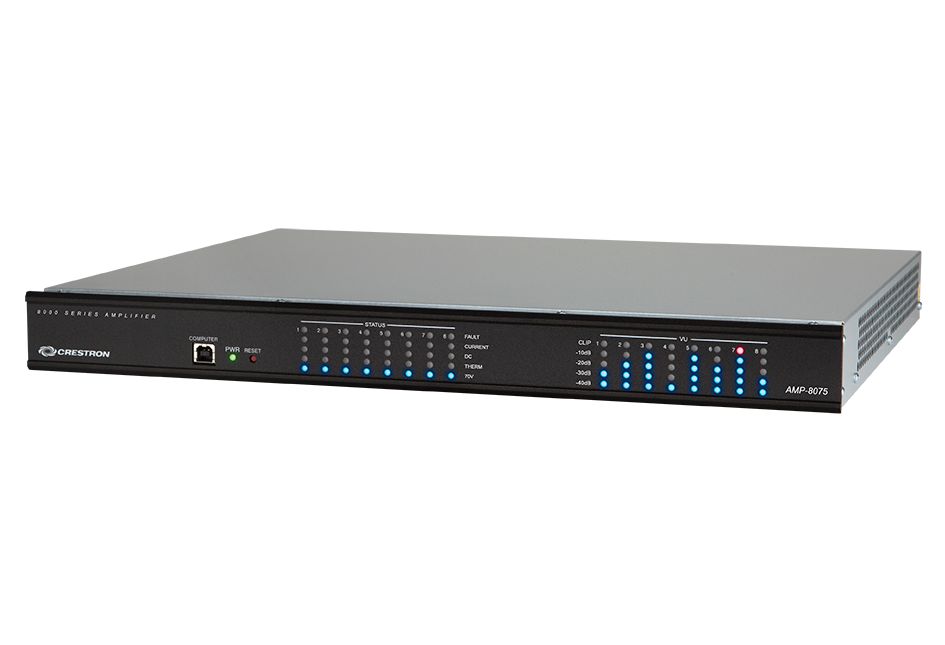

8-CHANNEL POWER AMPLIFIER, 75W/CH., 4/8 OHM OR 70V, NORTH AMERICA & JAPAN, 100-120V - 6507619 Audio & Video

8-CHANNEL POWER AMPLIFIER, 75W/CH., 4/8 OHM OR 70V, NORTH AMERICA & JAPAN, 100-120V - 6507619

€2,760.48

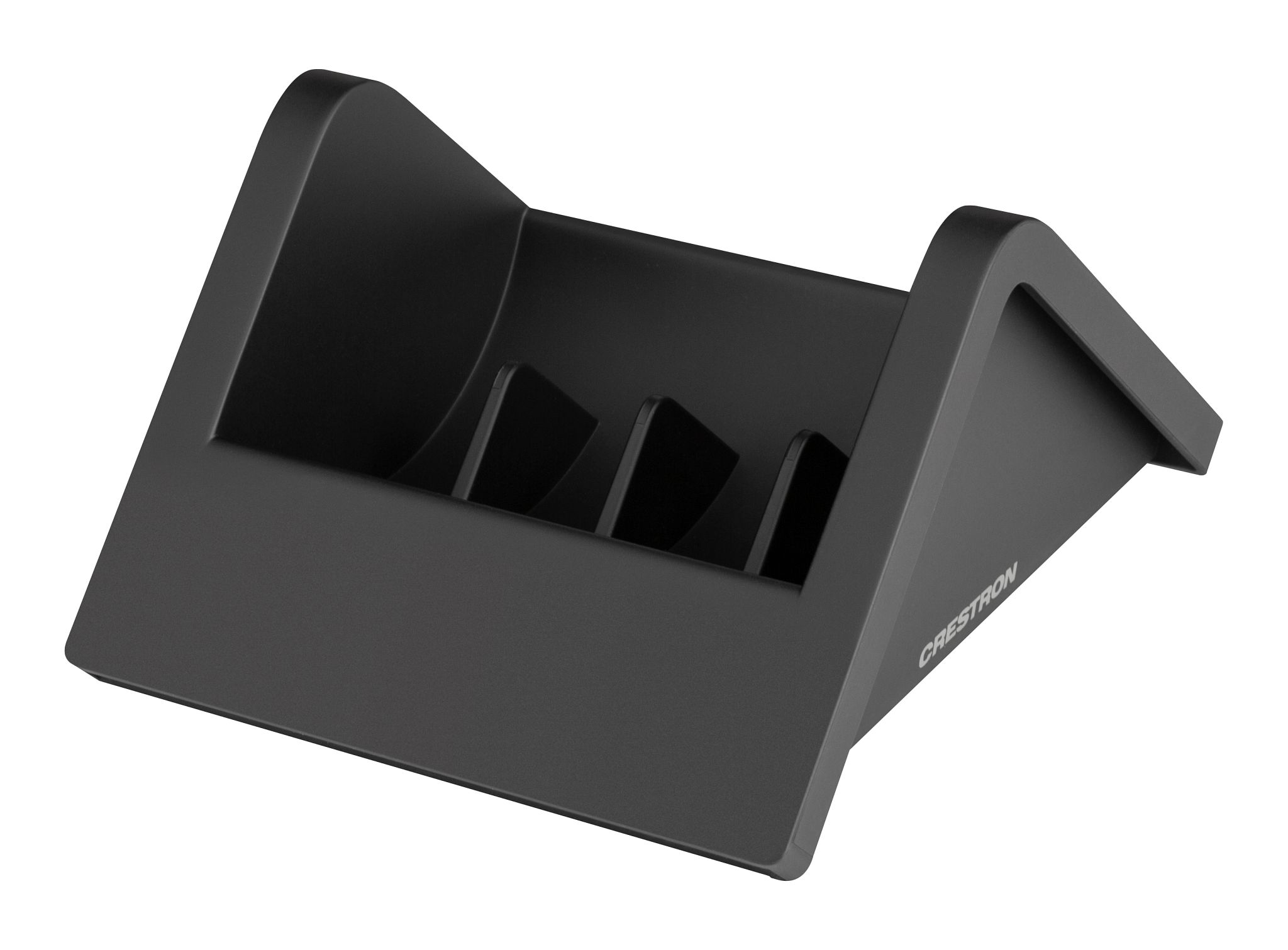

TABLETOP CRADLE FOR UP TO FOUR AM-TX3-100 ADAPTORS - 6512130 Audio & Video

TABLETOP CRADLE FOR UP TO FOUR AM-TX3-100 ADAPTORS - 6512130

€126.72

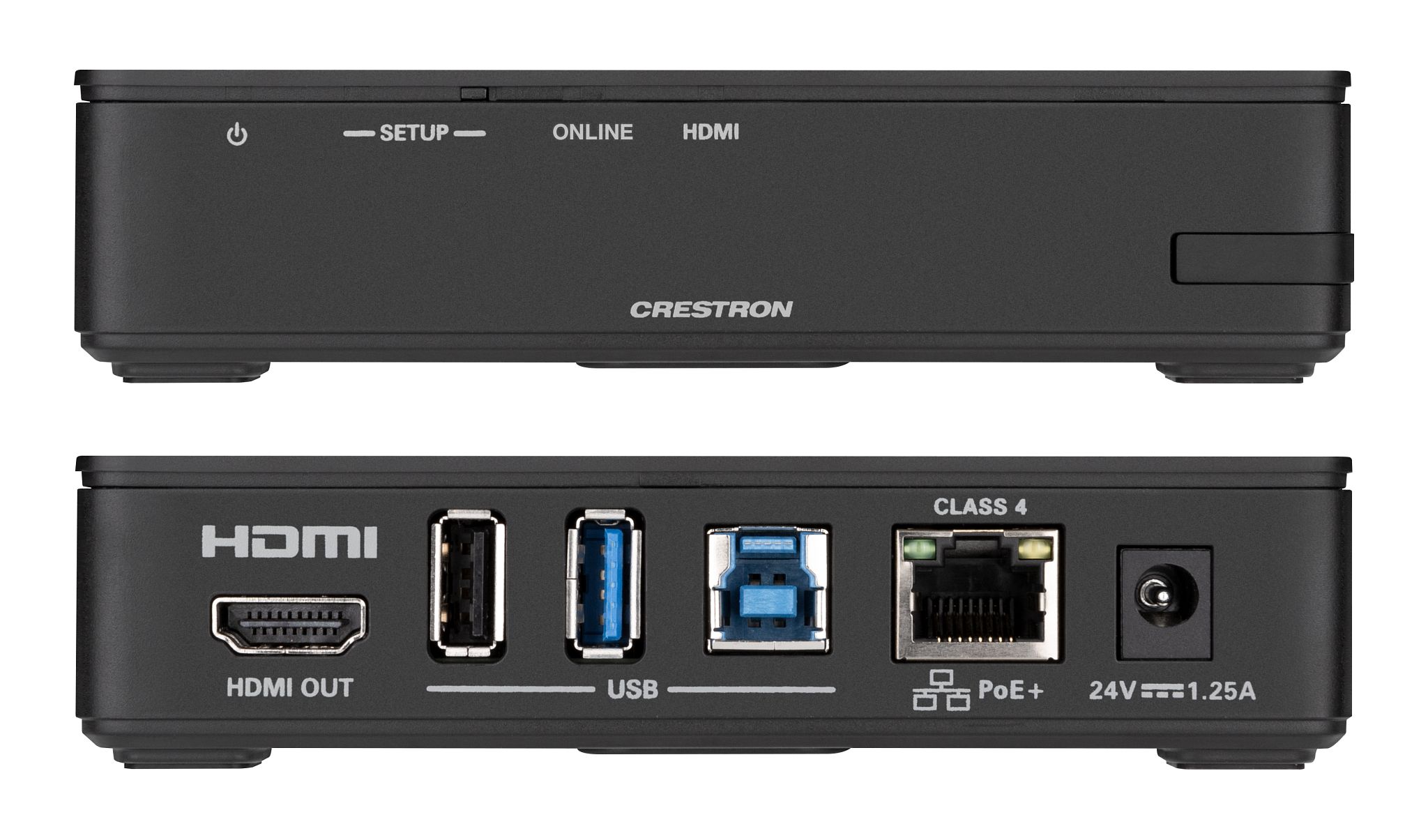

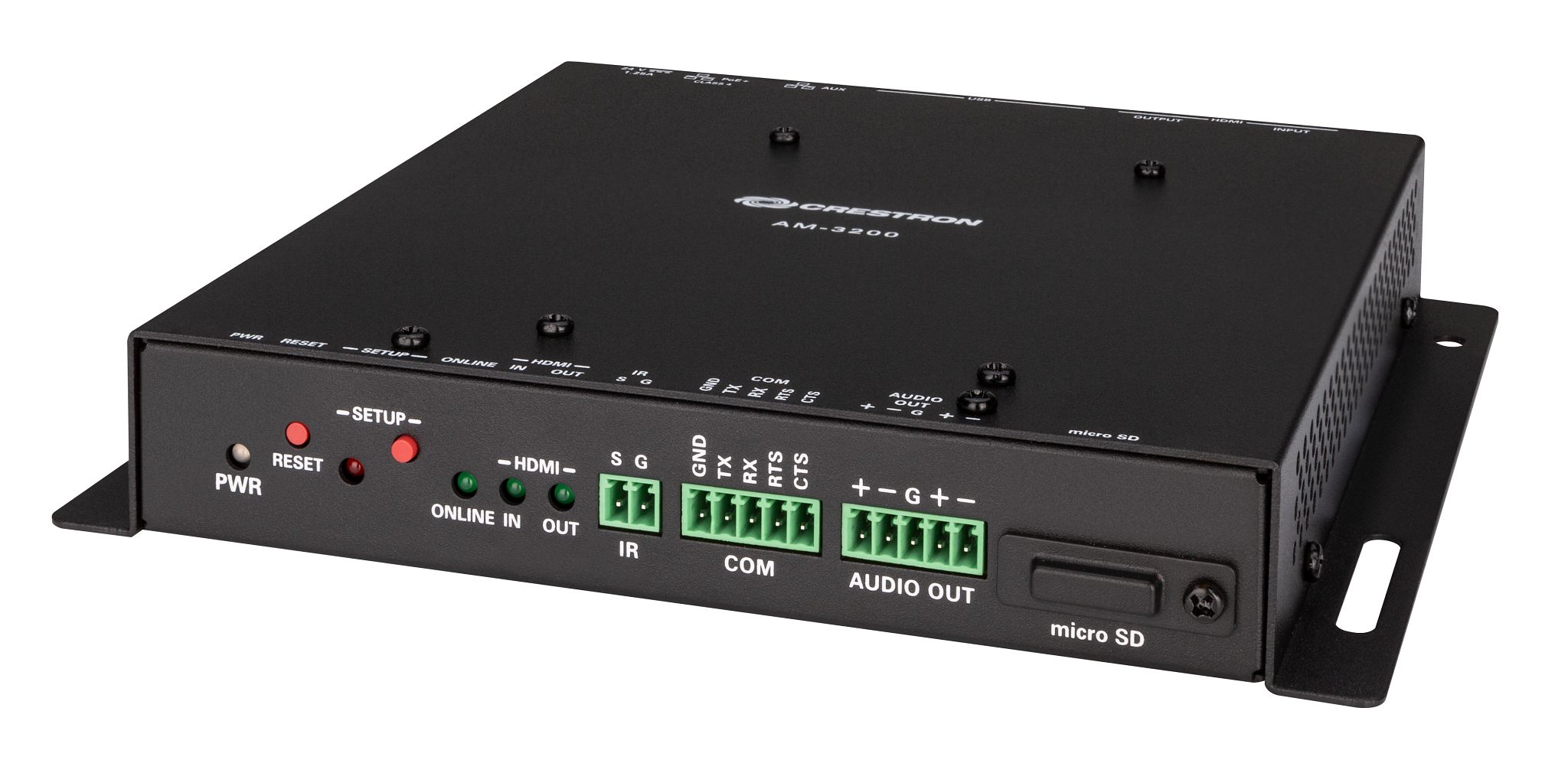

AIRMEDIA RECEIVER 3200 - 6511482 Audio & Video

AIRMEDIA RECEIVER 3200 - 6511482

€1,897.92

AIRMEDIA RECEIVER 3000 WITH WI-FI NETWORK CONNECTIVITY, INTERNATIONAL - 6513019 Audio & Video

AIRMEDIA RECEIVER 3000 WITH WI-FI NETWORK CONNECTIVITY, INTERNATIONAL - 6513019

€862.56

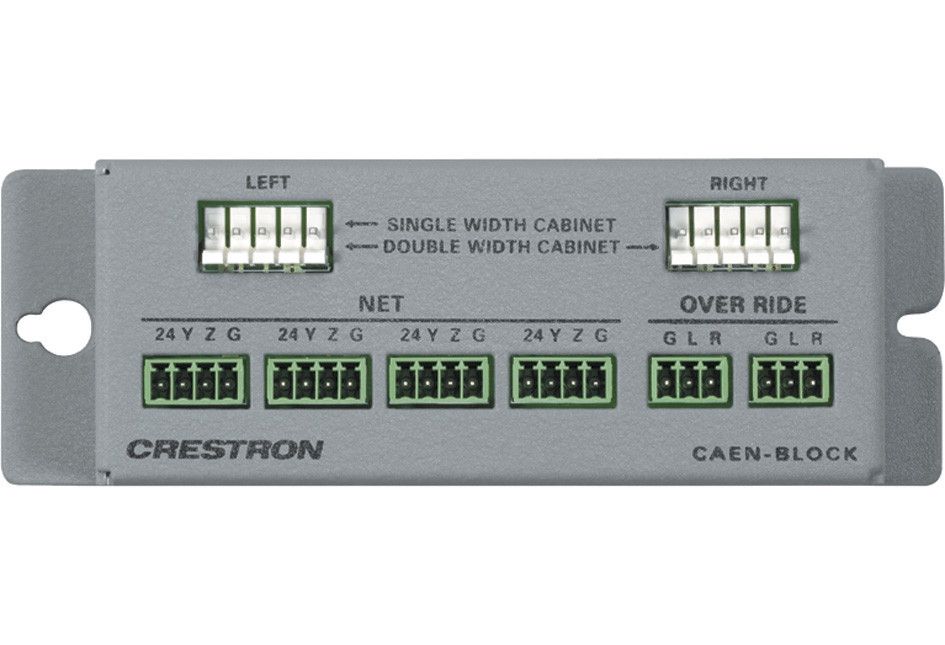

CRESNET NETWORK TERMINATION BLOCK FOR CAEN AND CAENIB AUTOMATION ENCLOSURES - 6500568 Audio & Video

CRESNET NETWORK TERMINATION BLOCK FOR CAEN AND CAENIB AUTOMATION ENCLOSURES - 6500568

€131.04

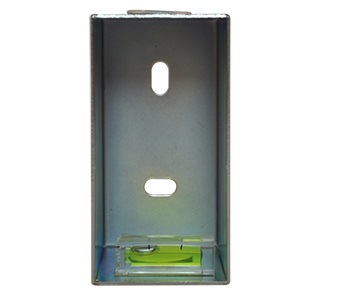

METAL BACK BOX FOR C2N-CBF KEYPAD WITH SPIRIT LEVEL - 6508706 Audio & Video
