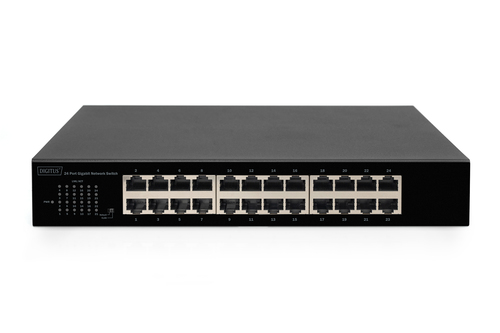

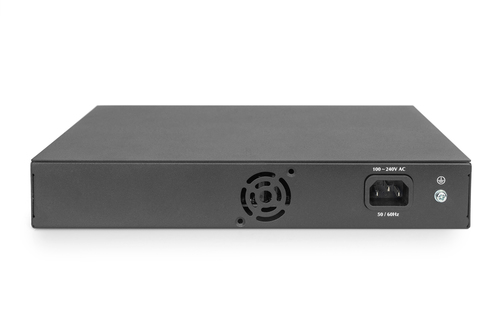

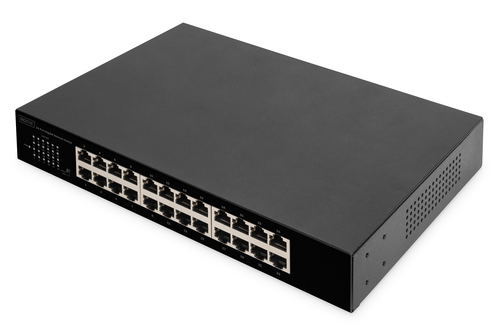

Digitus 24 Port Gigabit Network Switch

24 Port Gigabit Network Switch, 2 uplink ports, flow control, 8K MAC address table, VLAN

- Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3az
- Flow control for full duplex operation and back pressure for half duplex operation
- Supports VLAN mode
- LED lights for monitoring the operating status and for fault analysis
- Line speed forwarding, smart identification
- 48 Gbps switching capacity
- MAC address table: 8K
- Supports jumbo frame up to 9216K bytes
- Line speed forwarding, smart identification
- 48 Gbps switching capacity

The DN-80113-1 has 24 10/100/1000 Mbps RJ45 ports, with port 23 and port 24 as the uplink ports. It uses store-and-forward technology in combination with the dynamic memory allocation for each port. The integrated VLAN function can improve the network environment and reduces network maintenance costs. The DN-80113-1 is easy to manage and maintain.

ON ORDER

SKU: DN-80113-1

Manufacturer: Digitus Digitus

RRP Price €138.43

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes

Data transmission

Switching capacity
48 Gbit/s
Forwarding rate
35.7 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB

Design

Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Vandal-proof
No
Suitable for outdoor use
No

Power

Power source
AC
Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Ethernet interface type
Gigabit Ethernet

Weight & dimensions

Width
280 mm
Depth
179 mm
Height
44 mm
Weight
1.54 kg

Packaging content

Manual
Yes

Packaging data

Package width
370 mm
Package depth
230 mm
Package height
80 mm
Package volume
6808 cm³
Package weight
1.84 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
