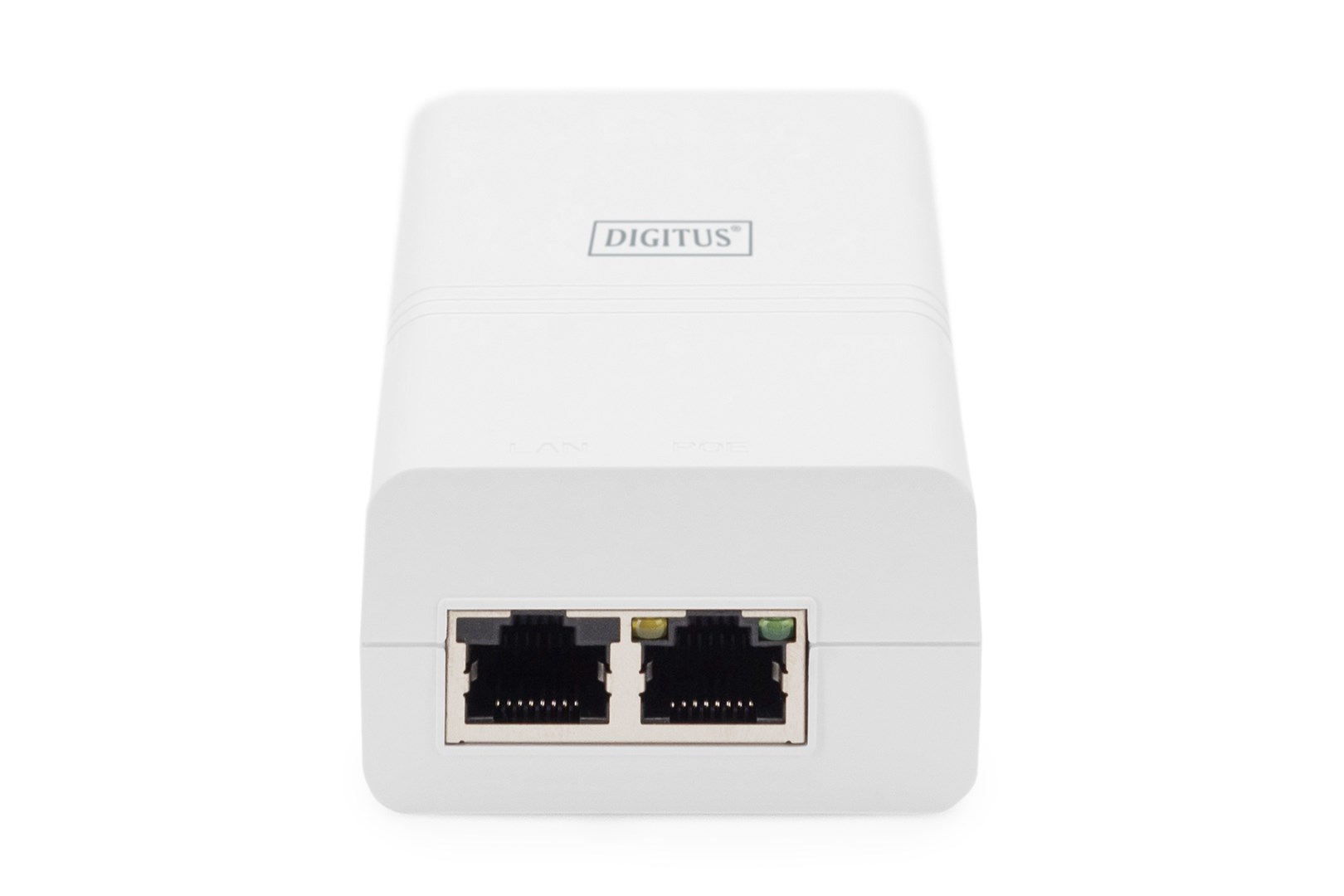

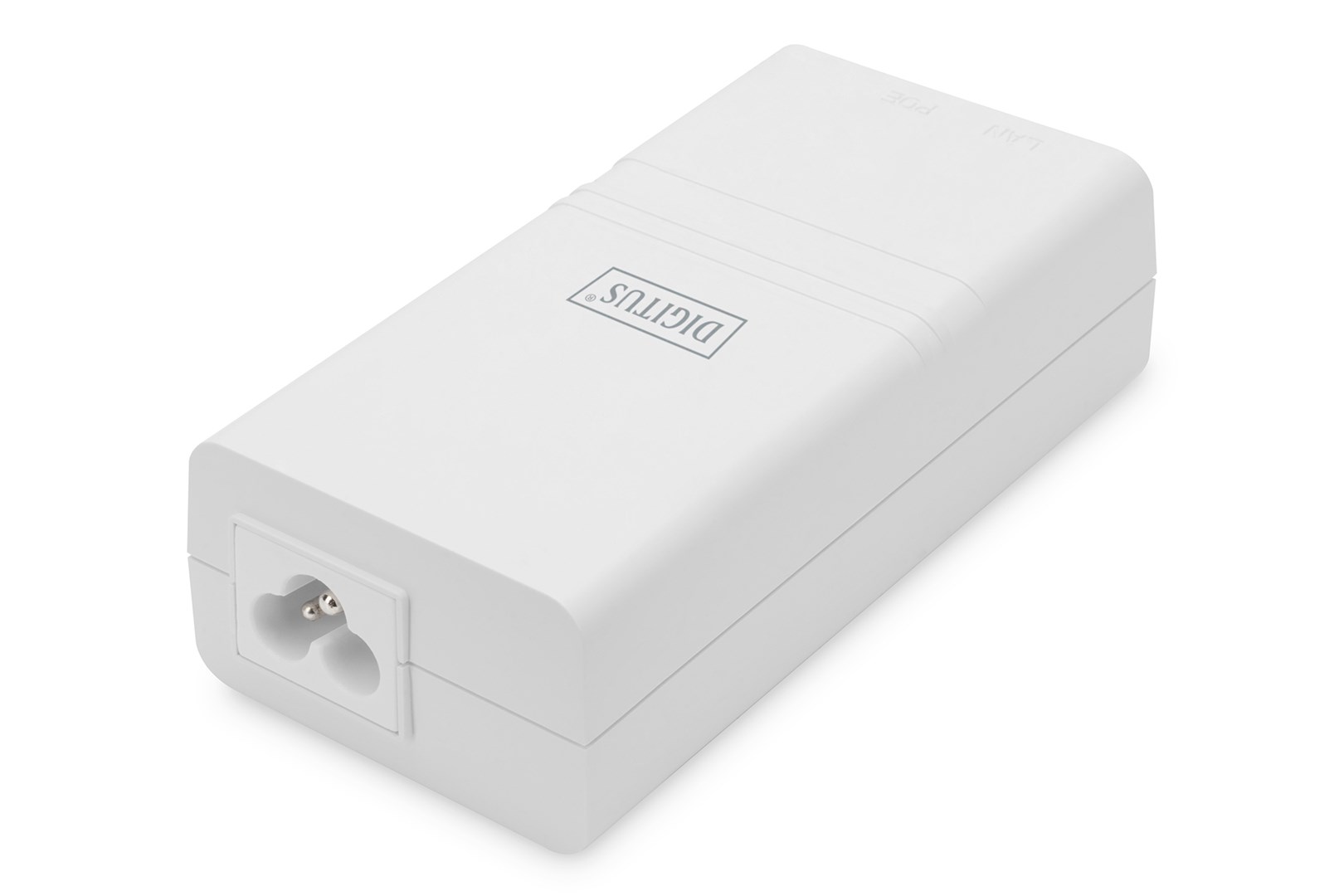

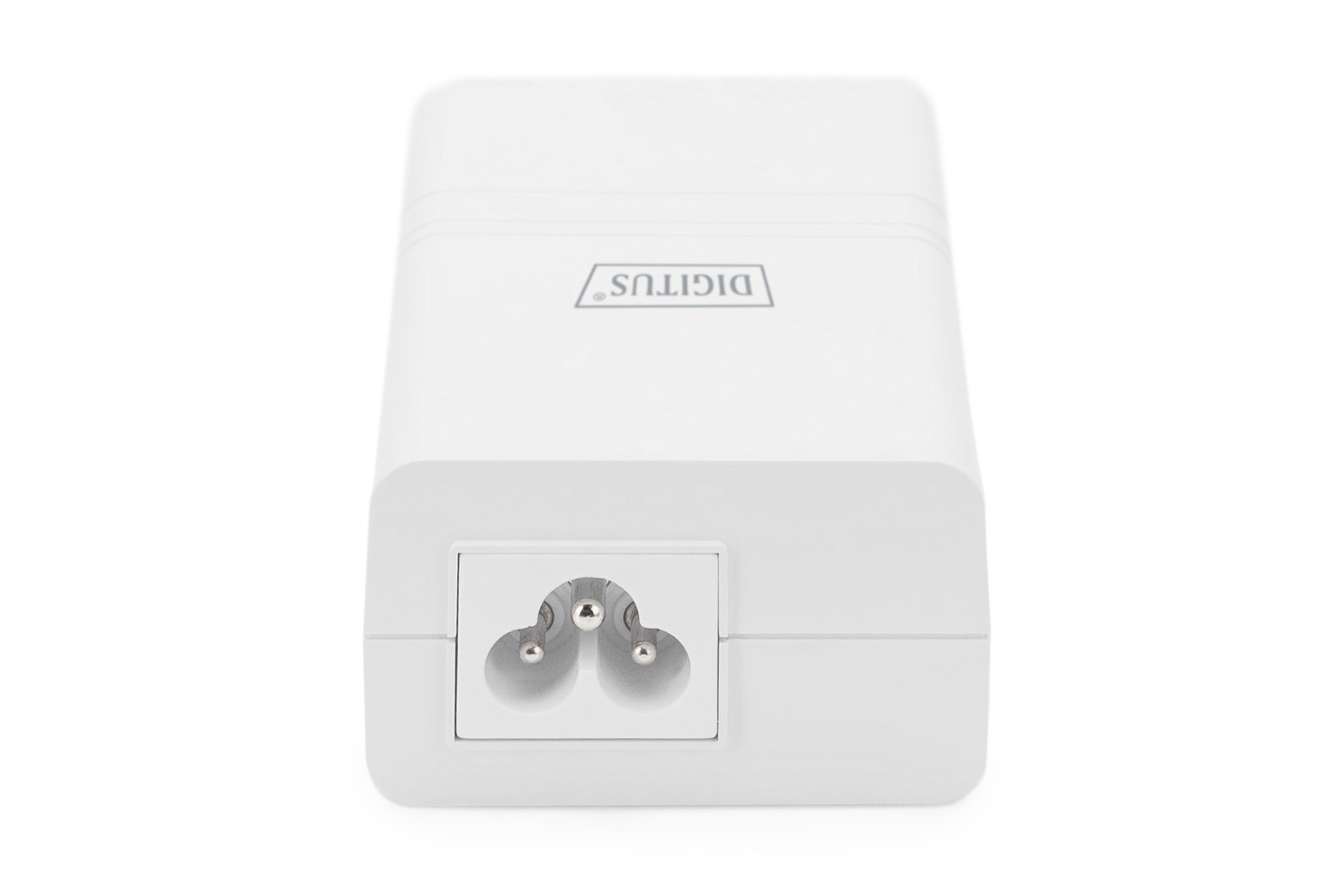

Digitus Gigabit Active 802.3af PoE Midspan

Digitus Gigabit Active 802.3af PoE Midspan

Name: Digitus Gigabit Active 802.3af PoE Midspan
Brand: Digitus
SKU: DN-95131
Price: 21.06 EUR
Availability: OutOfStock

The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.

- Provides 48Vdc, 0.32A power for remote PDs over 2 pairs output
- Supports both 10/100 Base-T and Gigabit device
- Works with a wide input voltage of 100-240 VAC, 50 or 60 Hz
- Easily merge of power and data cables into a single cable
- Each output port has output current limited, short-circuit protection, complete Powered Device (PD) detection and classification
- The Injector can be used independent of operating system

DN-95131 is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 48Vdc, 0.32A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 15.4W PoE PDs, such as wireless APs, WLAN routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to IEEE802.3af PoE standard. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.

ON ORDER

SKU: DN-95131

Manufacturer: Digitus Digitus

RRP Price €21.06

Specifications

Network

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3af

Features

Product colour

White

Housing material

Plastic

LED indicators

PoE, Power

International Protection (IP) code

IP40

Power

Power over Ethernet (PoE) voltage

48 V

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Input current

0.5 A

Certificates

Compliance certificates

RoHS, WEEE

Certification

CE/FCC

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 2000 m

Weight & dimensions

Width

85 mm

Depth

46 mm

Height

30 mm

Weight

100 g

Packaging content

Number of products included

1 pc(s)

Quick installation guide

Yes

Manual

Yes

Packaging data

Package width

168 mm

Package depth

100 mm

Package height

43 mm

Package weight

32.25 g

Package volume

722.4 cm³

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.1 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
