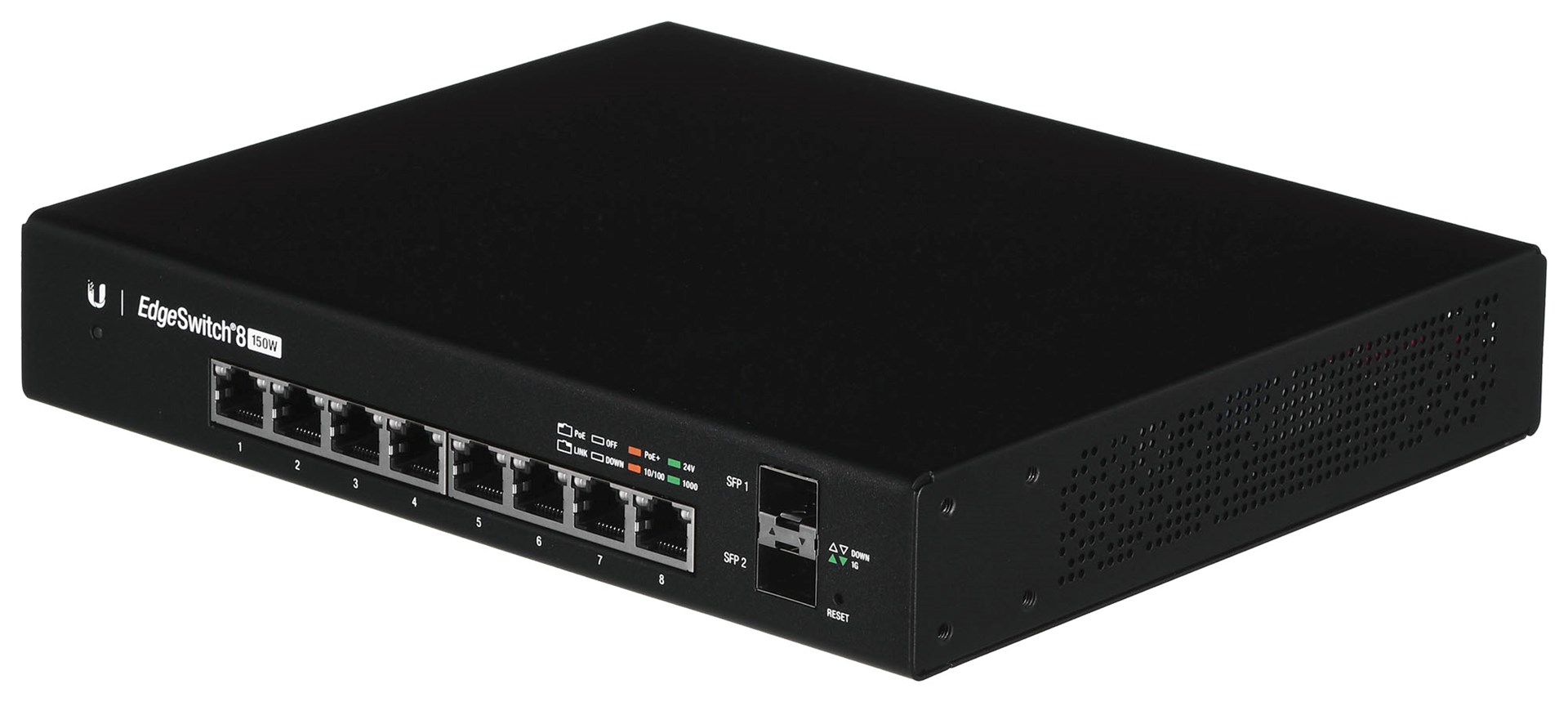

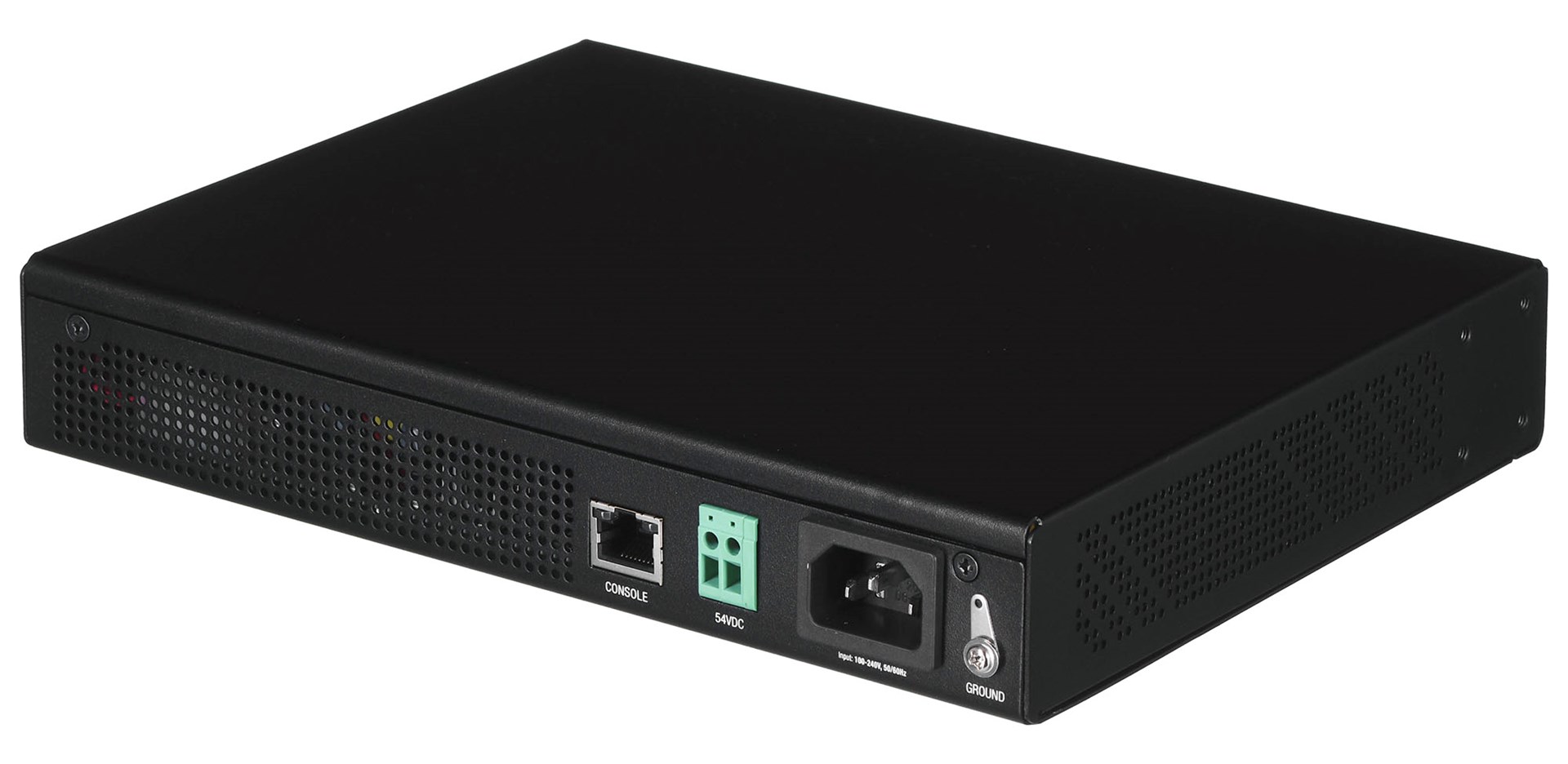

Ubiquiti EdgeSwitch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Gigabit Connectiviy

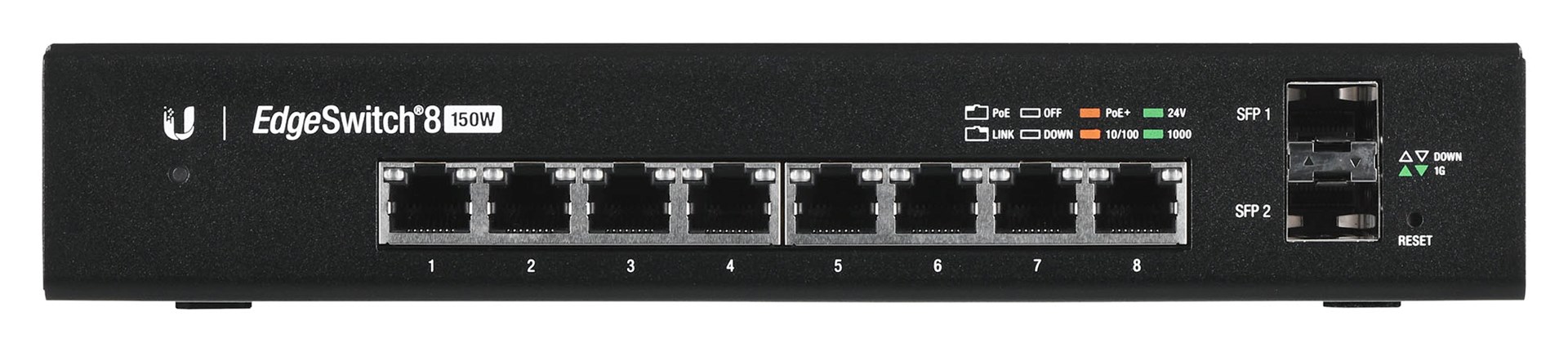

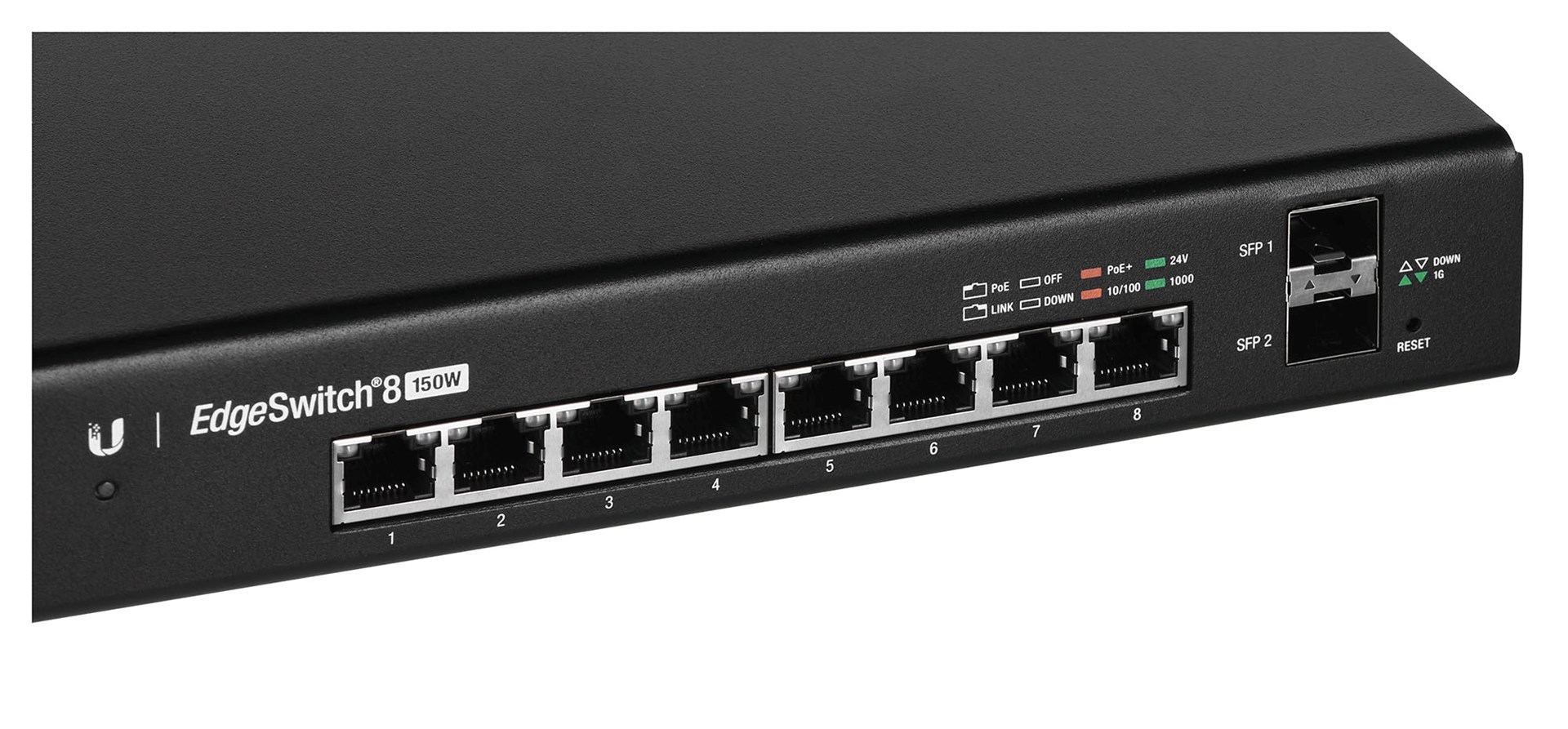

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support

Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul

The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance

The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

ON ORDER

SKU: ES-8-150W

Manufacturer: Ubiquiti Ubiquiti

RRP Price €259.69

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

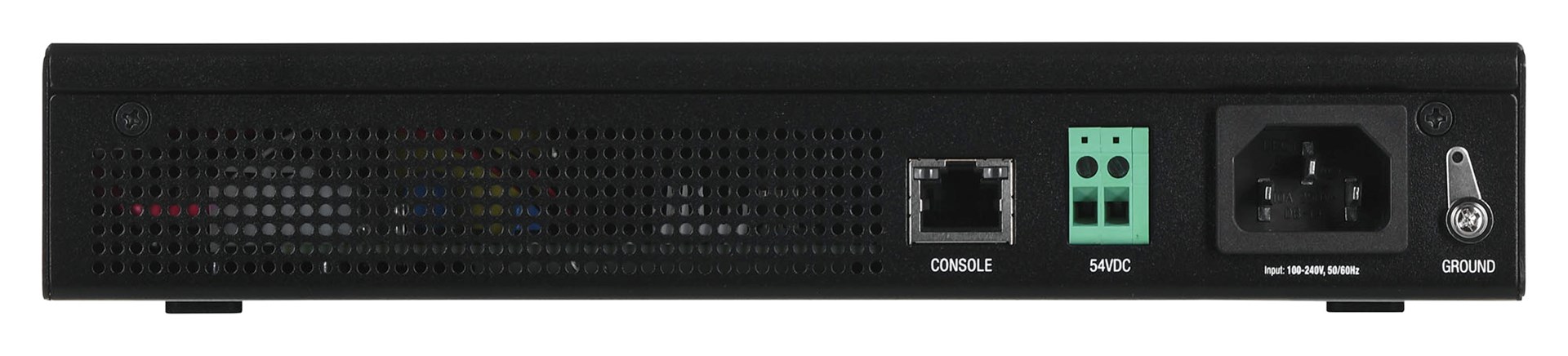

Console port
RJ-45
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Active link detection
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Port-based VLAN
Number of VLANs
255

Data transmission

Switching capacity
20 Gbit/s
Throughput
14.88 Mpps
MAC address table
8000 entries
Number of trunks
8
Jumbo frames support
Yes

Security

DHCP features
DHCP server
Access Control List (ACL)
Yes
Access Control List (ACL) rules
100
IGMP snooping
Yes
Security algorithms
SNMP, SSH, SSH-2
MAC address filtering
Yes
SSH/SSL support
Yes
Authentication
Guest VLAN, Port-based authentication

Multicast features

Multicast support
Yes

Design

Stackable
No
Product colour
Black
LED indicators
Activity, LAN, Link, PoE, Speed
Wall mountable
Yes

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input voltage
42 - 56 V
Power consumption (max)
150 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) voltage range
50 - 75 V
Power over Ethernet (PoE) power per port
34.2 W

Operational conditions

Operating temperature (T-T)
-25 - 60 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
204 mm
Depth
235 mm
Height
43 mm
Weight
1.72 kg

Packaging data

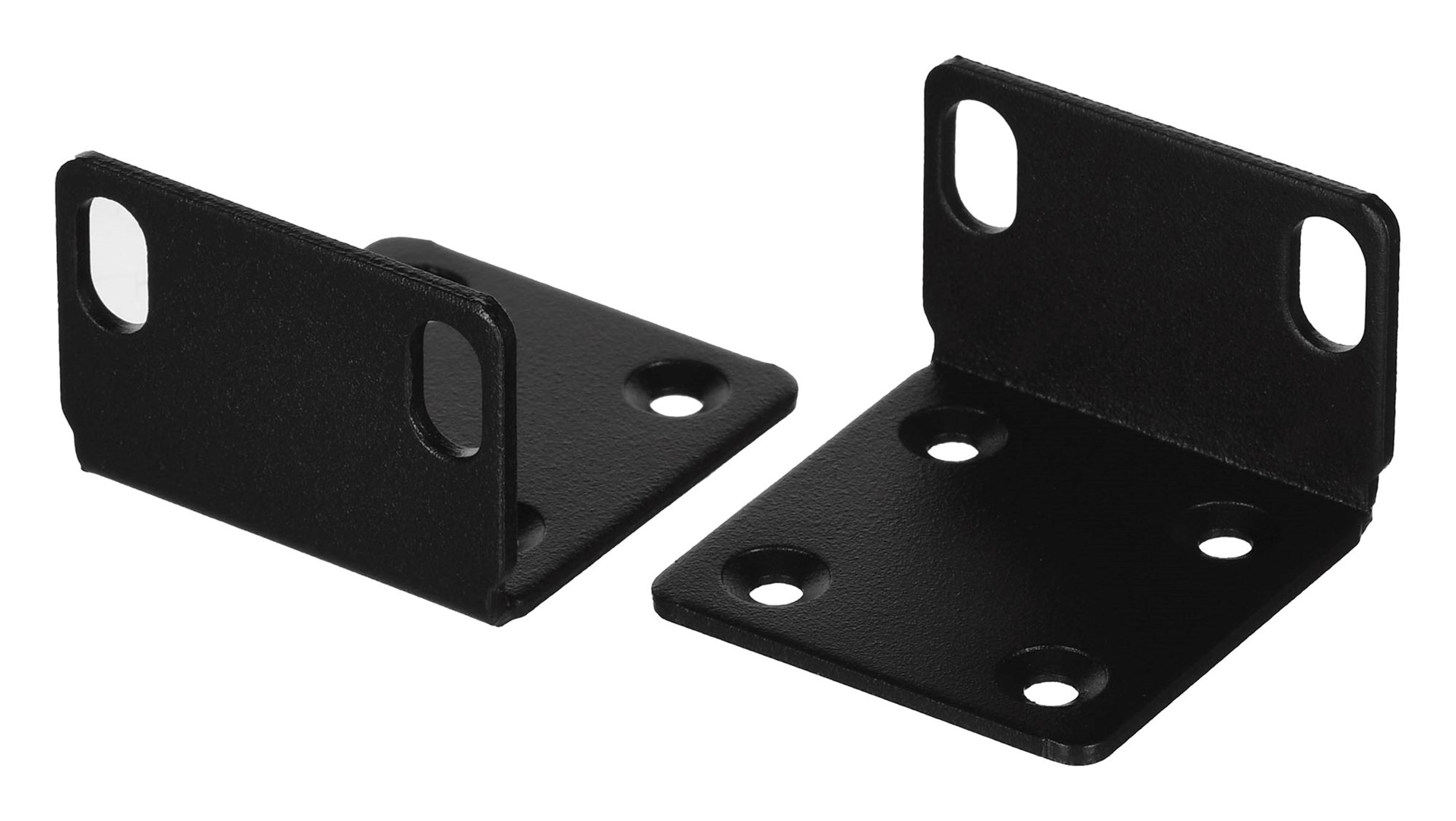

Mounting brackets included
Yes

Certificates

Certification
CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
