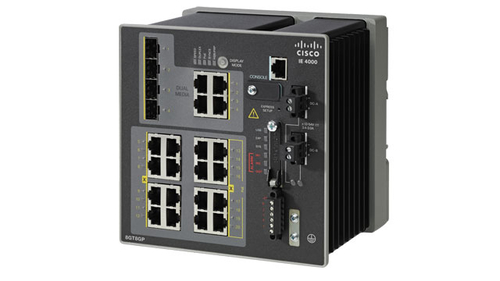

Cisco Industrial Ethernet 4000 L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today’s most flexible and scalable industrial Ethernet platform that will grow with your network.

Product Overview
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

ON ORDER

SKU: IE-4000-4GS8GP4G-E

Manufacturer: Cisco Cisco

RRP Price €12,970.87

Specifications

Management features

Switch layer
L2
Quality of Service (QoS) support
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Number of VLANs
1000

Data transmission

MAC address table
16000 entries
Number of queues
4

Security

DHCP features
DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
FIPS 140-2, SNMP, SSH
SSH/SSL support
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication

Multicast features

Multicast support
Yes

Protocols

Management protocols
Fast Boot, Express Setup, Web Device Manager, Cisco Network Assistant, Cisco Primeâ„¢ platform, MIB, SmartPort, SNMP, syslog, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM size configuration, DOM (digital optical management)

Power

Input current
3.7 A
Power consumption (typical)
40 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Weight & dimensions

Width
612 mm
Depth
612 mm
Height
509 mm
Weight
2.88 kg

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
