Ubiquiti IsoStation network antenna 14 dBi

Name: Ubiquiti IsoStation network antenna 14 dBi
Brand: Ubiquiti
SKU: IS-M5
Price: 133.09 EUR
Availability: OutOfStock

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected

The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

ON ORDER

SKU: IS-M5

Manufacturer: Ubiquiti

RRP Price €133.09

Specifications

Performance

Frequency band

5 GHz

Cabling technology

10/100/1000Base-T(X)

Antenna gain (5 GHz)

14 dBi

Horizontal beam width

45°

Vertical beam width

45°

Built-in processor

Yes

Processor model

Atheros MIPS 74Kc

Internal memory

64 MB

Internal memory type

DDR2

Antenna gain level (max)

14 dBi

Features

Product colour

Black, White

LED indicators

Power

Mounting

Pole

Power

Input voltage

24 V

Certificates

Certification

FCC, IC, CE

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

174 mm

Depth

174 mm

Height

150 mm

Weight

725.7 g

Logistics data

Harmonized System (HS) code

85177100

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.7257 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

CRESTRON FLEX ADVANCED SMALL ROOM CONFERENCE SYSTEM WITH JABRA PANACAST 50 VIDEO BAR AND WALL MOUNTED CONTROL INTERFACE FOR ZOOM ROOMS SOFTWARE - 6512618 Audio & Video

CRESTRON FLEX ADVANCED SMALL ROOM CONFERENCE SYSTEM WITH JABRA PANACAST 50 VIDEO BAR AND WALL MOUNTED CONTROL INTERFACE FOR ZOOM ROOMS SOFTWARE - 6512618

€7,629.12

CRESTRON FLEX ADVANCED SMALL ROOM CONFERENCE SYSTEM WITH VIDEO SOUNDBAR AND WALL MOUNTED CONTROL INTERFACE FOR ZOOM ROOMS SOFTWARE - 6511940 Audio & Video

CRESTRON FLEX ADVANCED SMALL ROOM CONFERENCE SYSTEM WITH VIDEO SOUNDBAR AND WALL MOUNTED CONTROL INTERFACE FOR ZOOM ROOMS SOFTWARE - 6511940

€6,899.04

USB OVER CATEGORY CABLE EXTENDER WALL PLATE, REMOTE, WHITE - 6510560 Audio & Video

USB OVER CATEGORY CABLE EXTENDER WALL PLATE, REMOTE, WHITE - 6510560

€518.40

Crestron NIKO-USB-120 KIT mobile device charger Audio & Video

€86.40

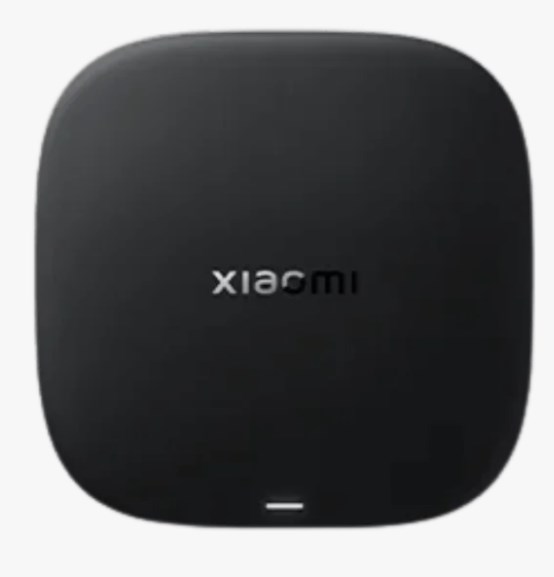

Xiaomi Mi TV Box S (3rd Generation) EU Multimedia Player Audio & Video

€55.88

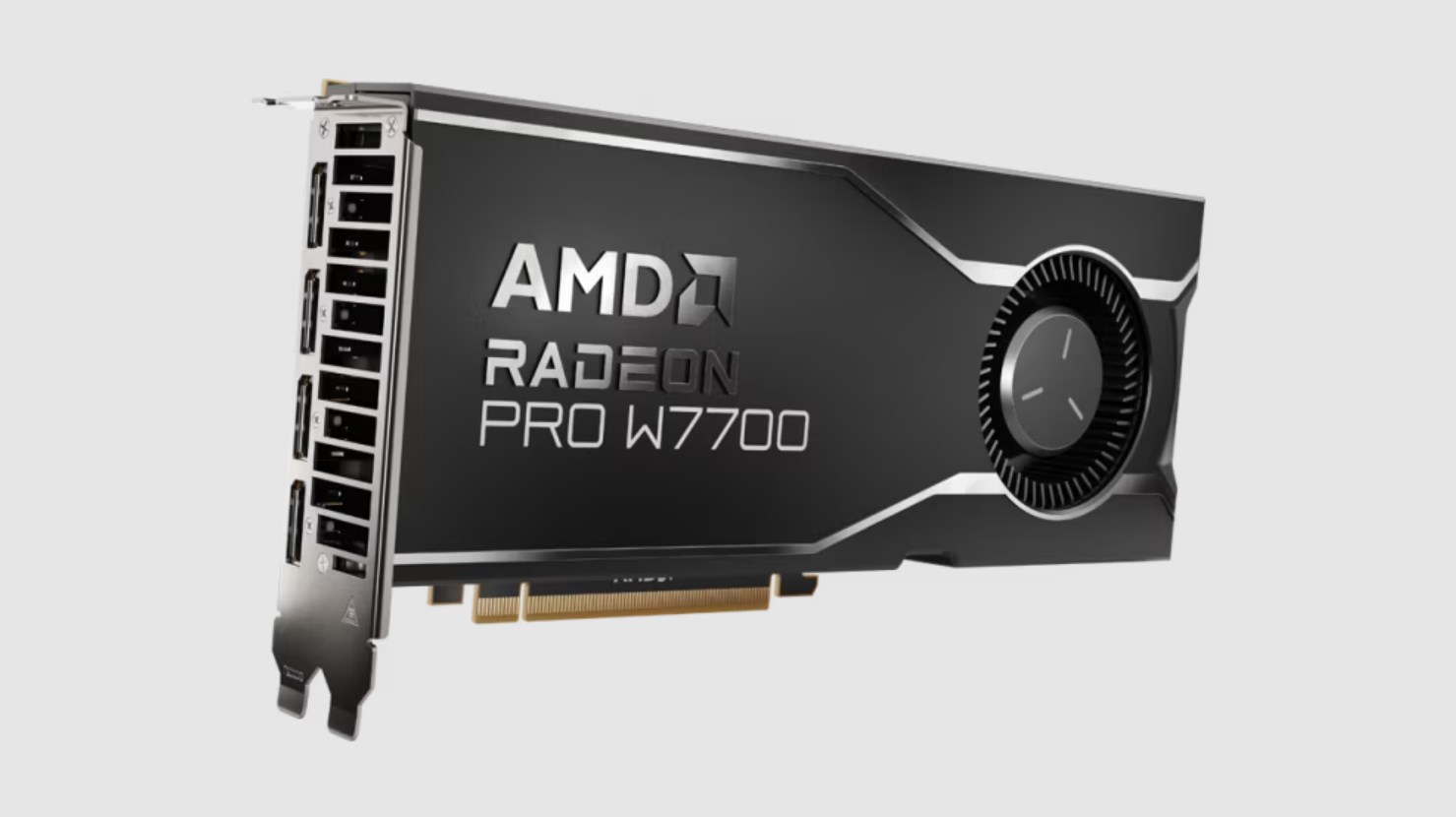

AMD Radeon PRO W7700 16 GB GDDR6 Audio & Video

AMD Software: PRO EditionGain access to a modern UI design from the ground up for the needs of professional users.AMD Radeon™ ProRenderA powerful physically-based rendering engine that enables creative professionals to produce stunningly photorealistic images.Certified ApplicationsCertification assures engineers, designers, and animators that AMD Radeon™ PRO Graphics deliver a stable and high performance workstation graphics environment on both Windows® and Linux® platforms.AMD Remote WorkstationYour workstation virtually anywhere. AMD Software: PRO EditionAMD's powerful and reliable professional-grade graphics software designed to unleash your creativity.AMD Radeon™ VR Ready CreatorEmpowering VR content creators with amazingly powerful and capable development tools.

€990.80

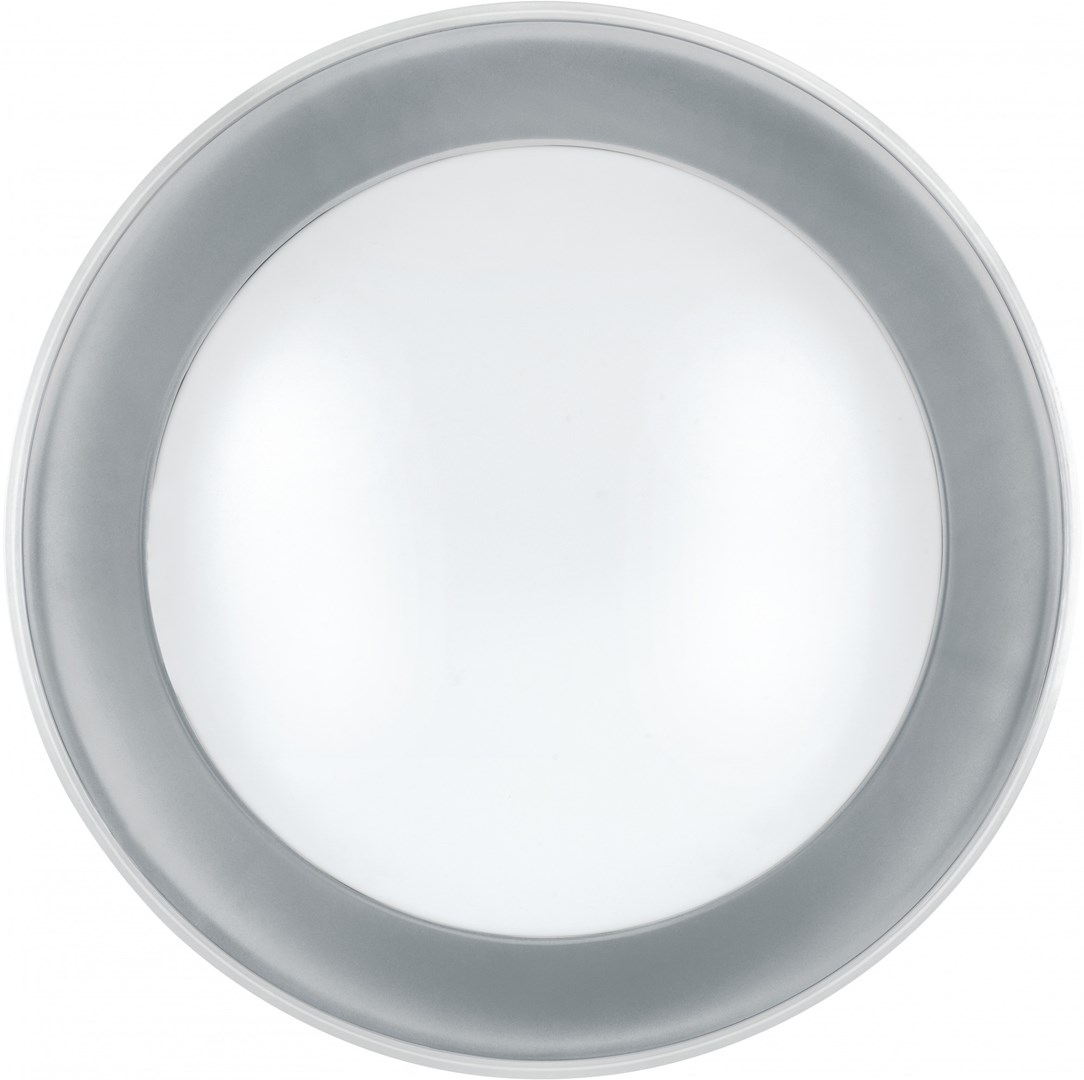

Modern LED dimmable ceiling plafond Activejet LED KRIS Grey wireless control by remote Audio & Video

€0.00

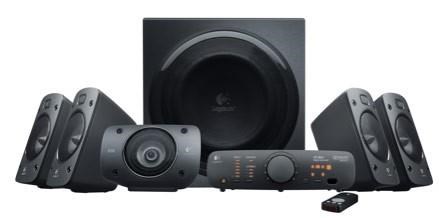

Logitech Surround Sound Speakers Z906 Audio & Video
