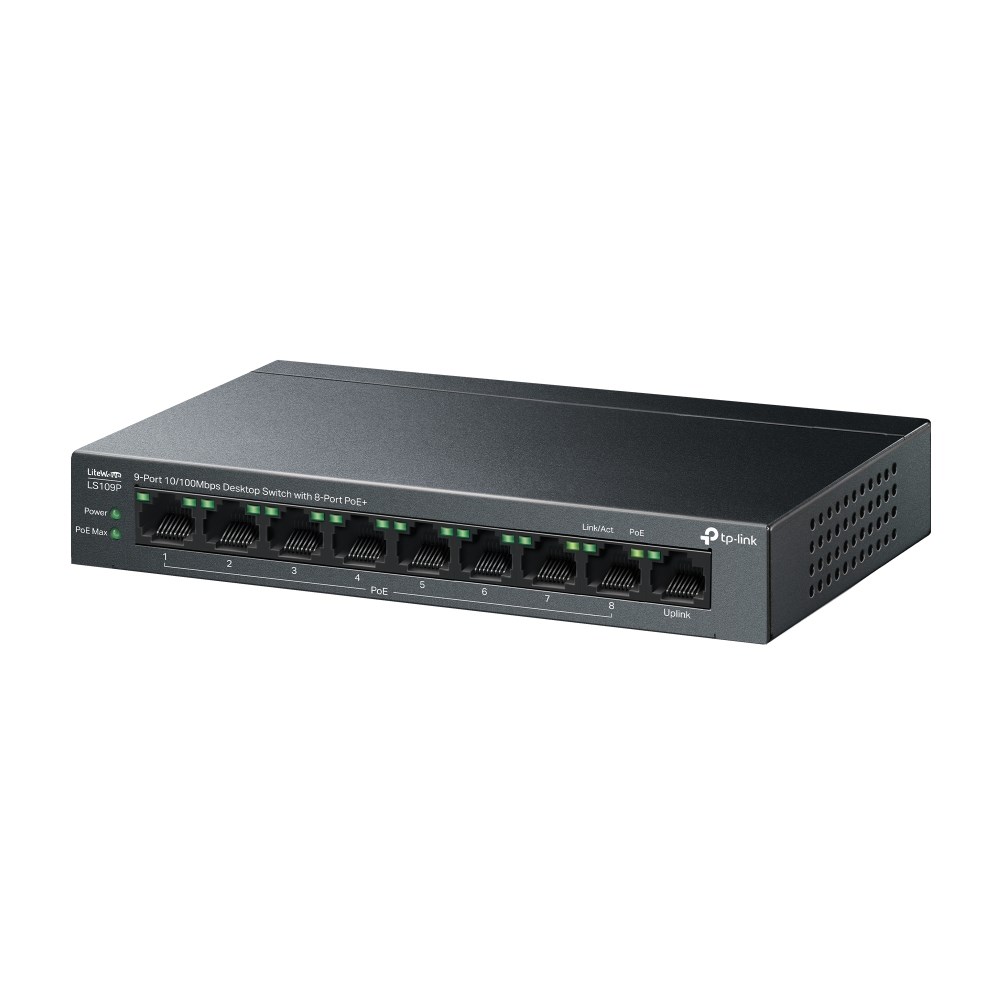

TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Name: TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Brand: TP-Link
SKU: LS109P
Price: 29.58 EUR
Availability: InStock

Switch de sobremesa de 9 puertos a 10/100 Mbps con 8 puertos PoE+

- 63 W de potencia PoE. 8 puertos PoE+ Gigabit compatibles con 802.3af/at alimentan fácilmente dispositivos como cámaras IP, puntos de acceso y teléfonos IP a través de un único cable. Cada puerto PoE admite hasta 30 W de salida.
- Hasta 250 m de transmisión PoE. Con el modo de extensión, la distancia de transmisión PoE alcanza hasta 250 m, ideal para el despliegue de cámaras de vigilancia en grandes áreas.
- Recuperación automática PoE. Reinicia automáticamente los dispositivos alimentados por PoE que no respondan.
- Separación de tráfico. El modo de aislamiento permite separar el tráfico de clientes con un solo clic para evitar el snooping y tampering, además de aislar el broadcast storm.
- Plug and Play. Conectividad instantánea sin necesidad de configuración.
- Funcionamiento silencioso. El diseño sin ventilador reduce el consumo de energía y garantiza un funcionamiento silencioso, ideal para hogares o empresas.
- Hardware fiable. Carcasa metálica duradera y diseño para montaje en sobremesa o pared adaptado a distintos entornos.

Alimentación a Través de Ethernet, Despliegue a Medida
Cumple con el estándar 802.3af/at PoE+, 61 W disponibles para todos los puertos PoE+, 30 W máx. por puerto.

Transmisiones de Hasta 250 m

Seguridad y Estabilidad en tu Red

Modo Aislamiento
Divide fácilmente el tráfico para evitar el snooping/tampering y broadcast storm.

Recuperación Automática PoE
Detecta y reinicia automáticamente los dispositivos que no responden.

3 IN STOCK

SKU: LS109P

Manufacturer: TP-Link TP-Link

RRP Price €29.58

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Network

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Data transmission

Switching capacity

1.8 Gbit/s

Forwarding rate

1.3392 Mpps

MAC address table

2000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Design

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

Number of fans

0 fan(s)

Performance

Fanless

Yes

Power

Power source

DC/PoE

Power supply included

Yes

AC input voltage

220 V

AC input frequency

50 Hz

DC input voltage

53.5 V

Input current

1.31 A

Power consumption (max)

73.24 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

249 BTU/h

Weight & dimensions

Width

171 mm

Depth

98 mm

Height

27 mm

Packaging content

User guide

Yes

Packaging data

Package type

Box

Certificates

Certification

CE, FCC, RoHS

Description

Manufacturer

TP-Link

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download
